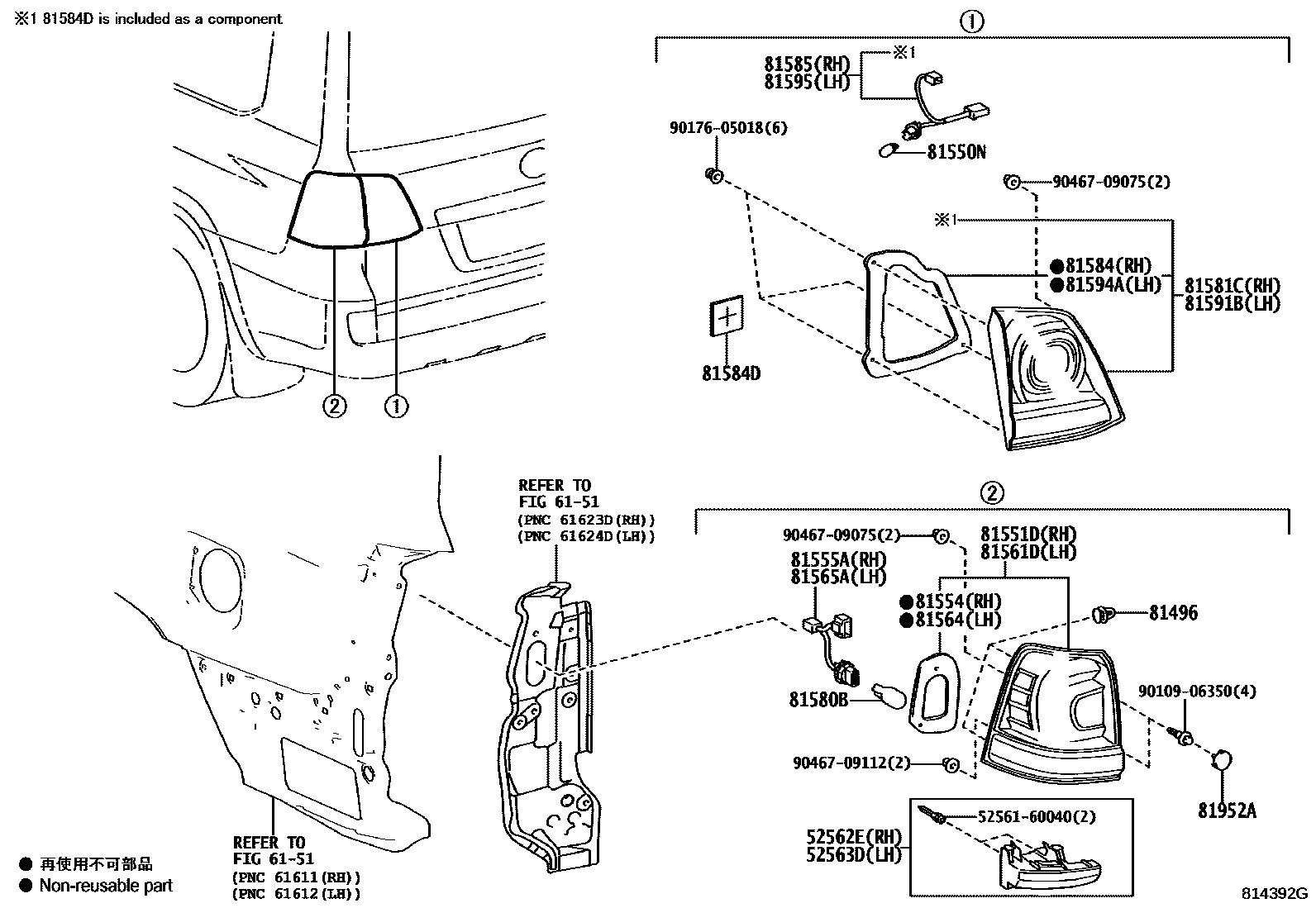

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-60040iUZJ200,VDJ200¥3,030200709-202104

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-60040iUZJ200,VDJ200¥3,030200709-202104

6151

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iUZJ200,VDJ200¥200200709-202104

81550NBULB, BACK UP LAMP

main90981-11059iUZJ200,VDJ200¥200200709-202104

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60820iUZJ200,VDJ200¥30,600200709-201201

main81551-60A80iURJ202,VDJ200¥38,000201201-201508

main81551-60B70iVDJ200..05S;VDJ200..RHD..VXR¥38,900201508-202104

main81551-60B80iURJ202..08S..VX201908-202104

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-60B70iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥700201508-202104

main81554-60820iUZJ200,VDJ200¥1,020200709-201201

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60820iUZJ200,VDJ200¥2,470200709-201201

main81555-60A80iURJ202,VDJ200¥1,590201201-201508

main81555-60B70iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥1,700201508-202104

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60750iUZJ200,VDJ200¥30,600200709-201201

main81561-60A60iURJ202,VDJ200¥38,000201201-201508

main81561-60B70iVDJ200..05S;VDJ200..RHD..VXR¥38,900201508-202104

main81561-60B80iURJ202..08S..VX201908-202104

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81562-60B70iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥700201508-202104

main81564-60750iUZJ200,VDJ200¥1,020200709-201201

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60820iUZJ200,VDJ200¥2,470200709-201201

main81555-60A80iURJ202,VDJ200¥1,590201201-201508

main81555-60B70iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥1,700201508-202104

81580BBULB (FOR REAR LAMP)

main90981-15021iUZJ200,VDJ200¥300200709-201201

12V 21W,AMBER

81581CLENS AND BODY, REAR LAMP, RH

main81581-60180iUZJ200,VDJ200¥25,800200709-201201

main81581-60280iURJ202,VDJ200¥29,100201201-201508

main81581-60360iURJ202,VDJ200¥38,700201508-201601

sub81581-60361¥26,900

main81581-60361iVDJ200..RHD..VX;VDJ200..LHD..08S¥26,900201601-202104

main81581-60371iURJ202..08S..VX201908-202104

81584PACKING, REAR LAMP RH

main81584-60180iURJ202,VDJ200¥1,020200709-201508

main81584-60370iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥750201508-202104

81584DGASKET, REAR LAMP

main81584-24050iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥140201508-202104

main81584-60190iUZJ200,VDJ200¥1,020200709-201201

81585SOCKET & WIRE, REAR LAMP

main81585-60180iUZJ200,VDJ200¥2,630200709-201201

main81585-60280iURJ202,VDJ200¥1,670201201-201508

main81585-60360iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥1,810201508-202104

81591BLENS AND BODY, REAR LAMP, LH

main81591-60210iUZJ200,VDJ200¥25,800200709-201201

main81591-60310iURJ202,VDJ200¥29,100201201-201508

main81591-60360iURJ202,VDJ200¥38,700201508-201601

sub81591-60361¥26,900

main81591-60361iVDJ200..05S;VDJ200..RHD..VXR¥26,900201601-202104

main81591-60371iURJ202..VXR;URJ202..05S201908-202104

81594AGASKET, REAR LAMP LH

main81594-60210iUZJ200,VDJ200¥1,020200709-201508

main81594-60360iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥750201508-202104

81595SOCKET & WIRE, REAR LAMP, LH

main81585-60180iUZJ200,VDJ200¥2,630200709-201201

main81585-60280iURJ202,VDJ200¥1,670201201-201508

main81585-60360iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥1,810201508-202104

81952ACOVER, REAR LAMP, RH

main81952-22010iUZJ200,VDJ200¥100200709-201201

5256160040RETAINER, REAR BUMPER, UPPER CENTER

main52561-60040¥210

9010906350

main90109-06350¥90

9017605018

main90176-05018¥70

9046709075

main90467-09075¥110

9046709112

main90467-09112¥160

25 parts on this diagram · 3 diagrams in section
