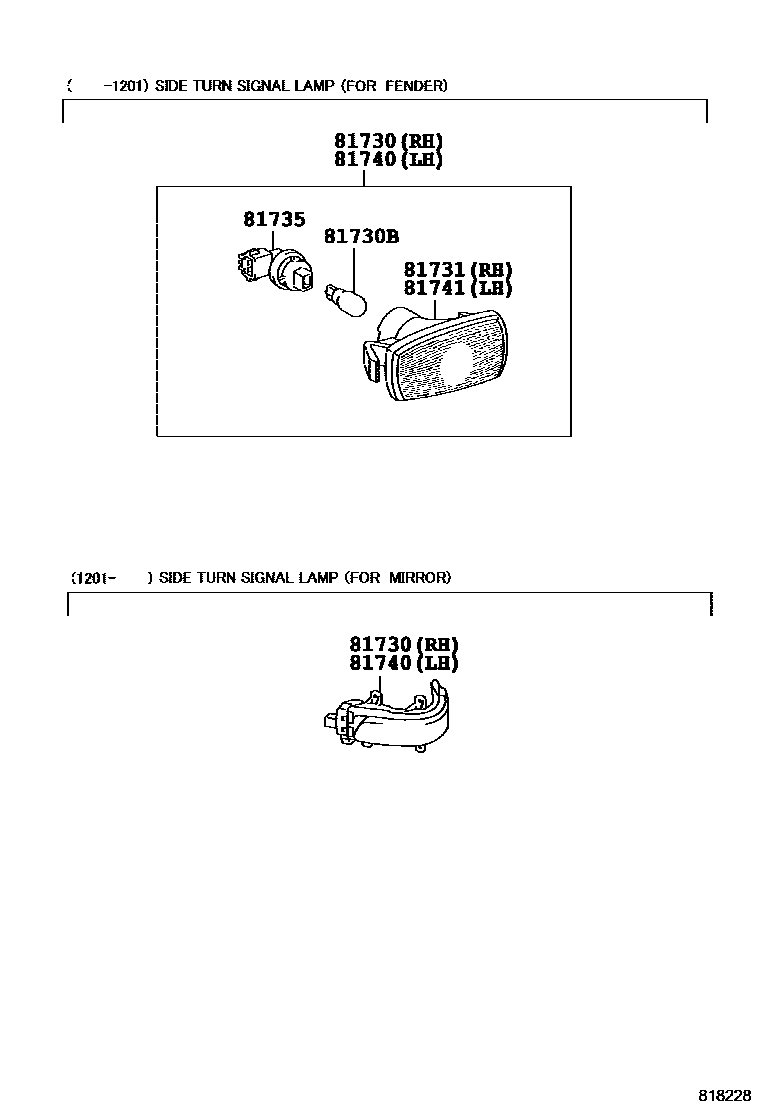

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-51011iUZJ200,VDJ200200709-201201

*504,FOR FENDER

main81730-53011iUZJ200,VDJ200200709-201201

*503,FOR FENDER

main81730-60120iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201201-202104

FOR MIRR0R

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050iUZJ200,VDJ200200709-201201

12V 5W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-51011iUZJ200,VDJ200200709-201201

FRAME NO.=5XXXXXX

main81731-53011iUZJ200,VDJ200200709-201201

FRAME NO.=4XXXXXX

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main90075-60001iUZJ200,VDJ200200709-201201

FRAME NO.=4XXXXXX

main90075-60005iUZJ200,VDJ200200709-201201

FRAME NO.=5XXXXXX

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81730-51011iUZJ200,VDJ200200709-201201

*504,FOR FENDER

main81730-53011iUZJ200,VDJ200200709-201201

*503,FOR FENDER

main81740-60090iURJ202,VDJ200201201-202104

FOR MIRR0R

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-51011iUZJ200,VDJ200200709-201201

FRAME NO.=5XXXXXX

main81731-53011iUZJ200,VDJ200200709-201201

FRAME NO.=4XXXXXX

6 parts on this diagram · 1 diagram in section
