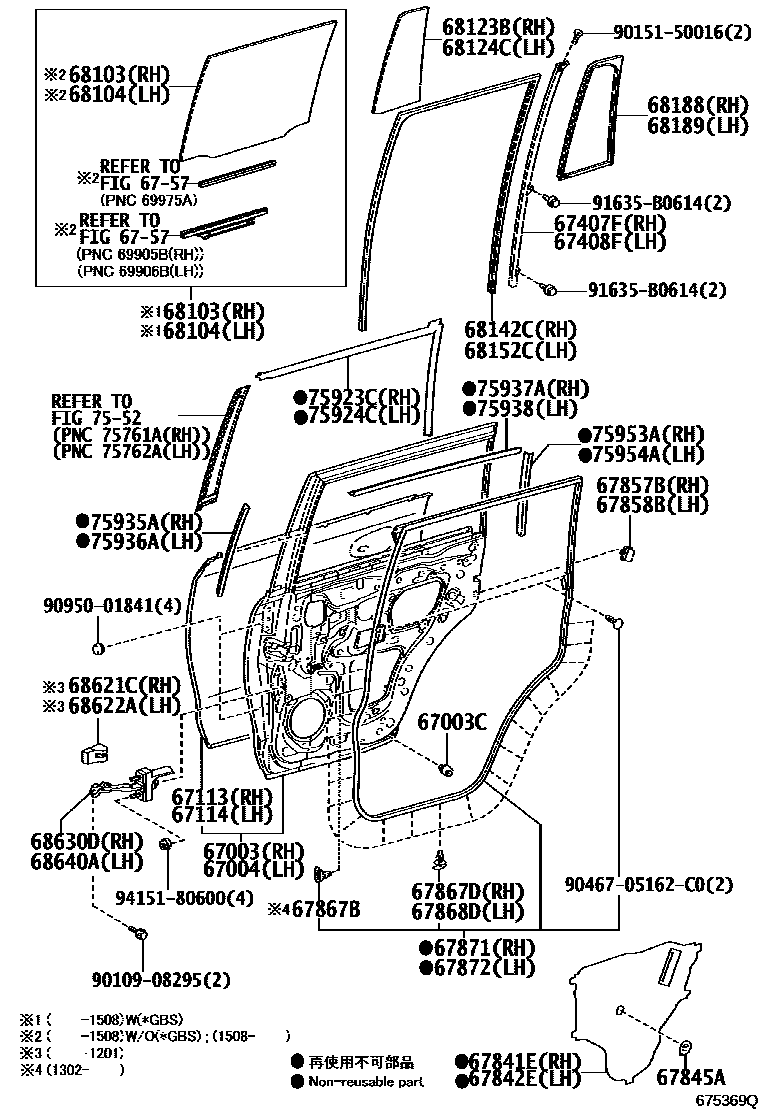

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-60410iUZJ200,VDJ200¥78,700200709-201412

sub67003-60411¥78,700

main67003-60411iURJ202,VDJ200¥78,700201501-201508

main67003-60540iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥54,600201508-202104

67003CCUSHION, REAR DOOR PANEL

main90541-09069iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥170200709-202104

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-60410iURJ202,VDJ200¥78,700200709-201412

sub67004-60411¥78,700

main67004-60411iURJ202,VDJ200¥78,700201501-201508

main67004-60540iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥54,600201508-202104

67113PANEL, REAR DOOR, OUTER RH

main67113-60210iURJ202,VDJ200¥31,600200709-201508

67114PANEL, REAR DOOR, OUTER LH

main67114-60210iURJ202,VDJ200¥31,600200709-201508

main67114-60280iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-60060iUZJ200,VDJ200¥2,840200709-202104

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-60060iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥2,840200709-202104

6757

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-60110iUZJ200,VDJ200¥1,150200709-201501

sub67841-60140¥790

main67841-60140iURJ202,VDJ200¥790201502-202104

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-60060iUZJ200,VDJ200¥1,150200709-201501

sub67842-60090¥790

main67842-60090iURJ202,VDJ200¥790201502-202104

67845ASUB-SHEET, REAR DOOR SERVICE HOLE

main67846-60010iURJ202,VDJ200¥520200709-202104

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-60030iUZJ200,VDJ200¥470200709-202104

67858BPROTECTOR, REAR DOOR PANEL, LH

main67857-60030iUZJ200,VDJ200¥470200709-202104

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-52010iURJ202,VDJ200¥100201302-202104

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iUZJ200,VDJ200¥100200709-202104

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iUZJ200,VDJ200¥100200709-202104

67871WEATHERSTRIP, REAR DOOR, RH

main67871-60110iUZJ200,VDJ200¥5,900200709-202104

67872WEATHERSTRIP, REAR DOOR, LH

main67872-60110iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥5,900200709-202104

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-60310iUZJ200,VDJ200¥18,700200709-200907

*TEM,T=4.0,DK.GREEN

main68113-60370iUZJ200,VDJ200¥17,000200907-201508

*TEM,T=4.0,DARK GRAY

main68113-60370iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥17,000201508-202104

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-60310iUZJ200,VDJ200¥18,700200709-200907

*TEM,T=4.0,DK.GREEN

main68114-60370iUZJ200,VDJ200¥17,000200907-201508

*TEM,T=4.0,DARK GRAY

main68114-60370iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥17,000201508-202104

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-60300iUZJ200,VDJ200¥6,100200709-200907

*TEM,T=4.0,DK.GREEN

main68123-60360iUZJ200,VDJ200¥5,500200907-201508

*TEM,T=4.0,DARK GRAY

main68123-60360iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥5,500201508-202104

68124CGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-60300iUZJ200,VDJ200¥6,100200709-200907

*TEM,T=4.0,DK.GREEN

main68124-60360iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥5,500201508-202104

main68124-60360iURJ202,VDJ200¥5,500200907-201508

*TEM,T=4.0,DARK GRAY

68142CRUN, REAR DOOR GLASS, RH

main68142-60060iURJ202..LHD..08S¥2,640201201-201508

DUST PROOF SPEC

main68142-60060iUZJ200,VDJ200¥2,640200709-202104

68152CRUN, REAR DOOR GLASS, LH

main68152-60050iURJ202..LHD..08S¥2,640201201-201508

DUST PROOF SPEC

main68152-60050iUZJ200,VDJ200¥2,640200709-202104

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-60060iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥1,900200709-202104

main68188-60060iURJ202,VDJ200¥1,900201201-201508

DUST PROOF SPEC

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-60060iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥1,900200709-202104

main68189-60060iURJ202,VDJ200¥1,900201201-201508

DUST PROOF SPEC

68621CCOVER, REAR DOOR CHECK, RH

main68621-60010iUZJ200,VDJ200¥300200709-201201

68622ACOVER, REAR DOOR CHECK, LH

main68622-60010iUZJ200,VDJ200¥300200709-201201

68630DCHECK ASSY, REAR DOOR, RH

main68630-60110iUZJ200,VDJ200¥4,460200709-201002

sub68630-60111¥4,460

main68630-60111iUZJ200,VDJ200¥4,460201003-201201

main68630-60130iURJ202,VDJ200¥4,460201201-201411

sub68630-60131¥3,720

main68630-60131iURJ202,VDJ200¥3,720201412-201908

sub68630-60132¥3,090

main68630-60132iVDJ200..08S;URJ202..VXR;URJ202..05S¥3,090201909-202104

68640ACHECK ASSY, REAR DOOR, LH

main68640-60100iUZJ200,VDJ200¥4,460200709-201002

sub68640-60101¥4,460

main68640-60101iUZJ200,VDJ200¥4,460201003-201201

main68640-60110iURJ202,VDJ200¥4,460201201-201411

sub68640-60111¥3,720

main68640-60111iURJ202,VDJ200¥3,720201412-201908

sub68640-60112¥3,090

main68640-60112iVDJ200..08S;URJ202..VXR;URJ202..05S¥3,090201909-202104

7552

75923CTAPE, BLACK OUT, NO.2 RH

main75923-60020iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥1,120200709-202104

75924CTAPE, BLACK OUT, NO.2 LH

main75924-60020iUZJ200,VDJ200¥1,120200709-202104

75935ATAPE, BLACK OUT, NO.6 RH

main75935-60010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥630200709-202104

75936ATAPE, BLACK OUT, NO.6 LH

main75936-60010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥630200709-202104

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-60010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥870200709-202104

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-60010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥870200709-202104

75953ATAPE, BLACK OUT, INNER REAR RH

main75953-60010iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR¥1,120200709-202104

75954ATAPE, BLACK OUT, INNER REAR LH

main75954-60010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S¥1,120200709-202104

9010908295

main90109-08295¥80

9015150016

main90151-50016¥80

9046705162C0

main90467-05162C0

9095001841

main90950-01841¥110

91635B0614

main91635-B0614¥70

9415180600

main94151-80600¥60

45 parts on this diagram · 2 diagrams in section
