FRONT DOOR LOCK & HANDLE

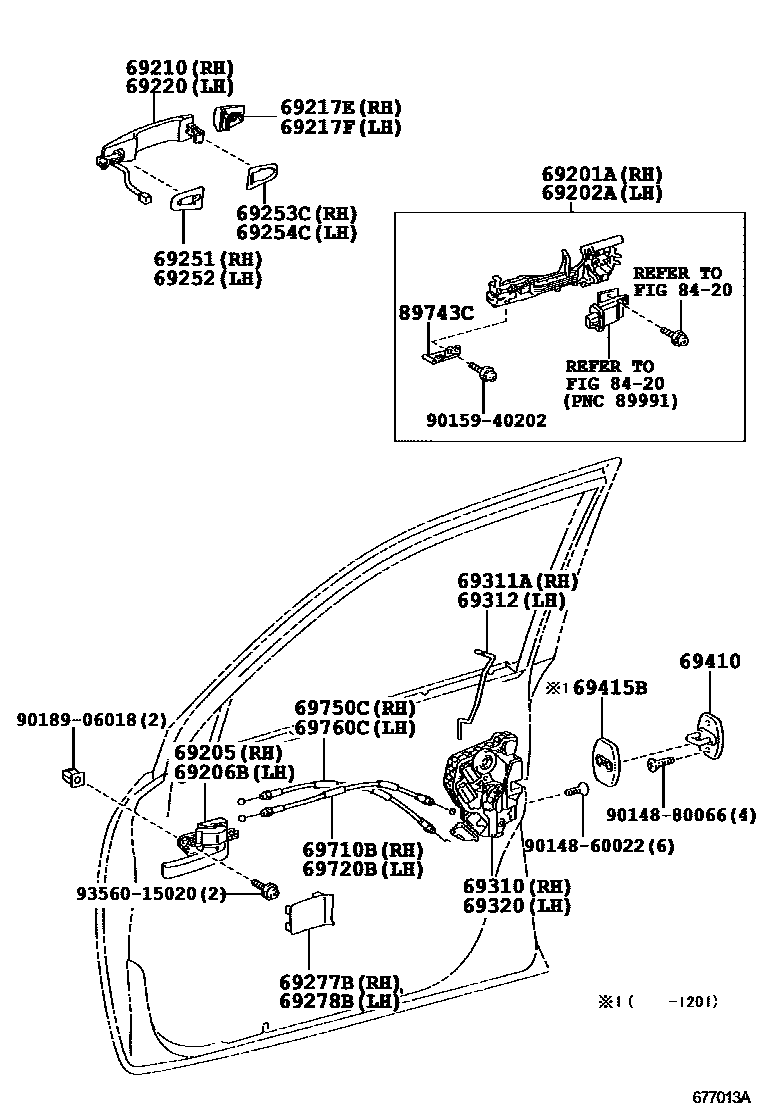

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-50080i201201-201508
SOUTH AFRICA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69201-50080i201201-201508
DOOR OUTSIDE HANDLE-CHROME PLATED
main69201-50080i201201-201408
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69201-50080i201201-201408
RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69201-60030i200709-201508
main69201-60040i200709-201508
SOUTH AFRICA SPEC
main69201-60040i201012-201201
SOUTH AFRICA SPEC&GRADE MARK-VX
main69201-60070i201201-201508
DOOR OUTSIDE HANDLE-CHROME PLATED
main69201-60110i201508-202104
sub69201-60111
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-50050i201201-201408
RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69202-50050i201201-201408
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69202-50050i201201-201508
DOOR OUTSIDE HANDLE-CHROME PLATED
main69202-50050i201201-201508
SOUTH AFRICA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69202-60010i200709-201508
main69202-60050i201508-202104
sub69202-60051
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-60120i200709-201201
SILVER PAINT
main69205-60150i201201-201508
CHROME PLATED
main69205-60170i201508-202104
CHROME PLATED
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-60120i200709-201201
SILVER PAINT
main69206-60150i201201-201508
CHROME PLATED
main69206-60160i201508-202104
CHROME PLATED
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-60100-A0i200709-201508
SUPER WHITE 2,040
sub69210-60100
main69210-60100-A2i200907-201508
WHITE PEARL CS.,070
sub69210-60100
main69210-60100-B0i200709-201508
SILVER ME.,1F7
sub69210-60100
main69210-60100-B1i200709-201508
GRAY ME.,1G3
sub69210-60100
main69210-60100-C0i200709-201508
BLACK,202
sub69210-60100
main69210-60100-C1i201201-201508
ATTITUDE BLACK MC.,218
sub69210-60100
main69210-60100-D0i200709-201508
DK. RED M.M.,3Q3
sub69210-60100
main69210-60100-E0i200709-201508
BEIGE M.M.,4R3
sub69210-60100
main69210-60100-F0i200709-201201
GOLD M.M.,5A5
sub69210-60100
main69210-60100-G1i200709-201508
GREEN M.M.,6V2
sub69210-60100
main69210-60100-J0i200709-201201
GRAYISH BLUE ME.,8R3
sub69210-60100
main69210-60100-J1i201201-201408
LT.BLUE M.M.,8S1
sub69210-60100
main69210-60110i201201-201508
PLATED,SOUTH AFRICA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60110i201201-201508
PLATED,DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60140i201201-201408
PLATED,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69210-60141
main69210-60140i201201-201408
PLATED,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69210-60141
main69210-60210i201408-201508
PLATED,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60210i201408-201508
PLATED,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60260-A0i201508-202104
SUPER WHITE 2,040
main69210-60260-A1i201508-202104
WHITE PEARL CS.,070
main69210-60260-B0i201508-202104
SILVER ME.,1F7
main69210-60260-B1i201508-202104
GRAY ME.,1G3
main69210-60260-C0i201508-202104
BLACK,202
main69210-60260-C1i201508-202104
ATTITUDE BLACK MC.,218
main69210-60260-C4i201908-202006
SPARKLING BLACK PEARL CS.,220
main69210-60260-D0i201508-202104
DK. RED M.M.,3Q3
main69210-60260-E0i201508-202006
BEIGE M.M.,4R3
main69210-60260-E1i201508-201908
COPPER BROWN MC.,4S6
main69210-60260-J0i201508-201912
DARK BLUE MC.,8P8
main69210-60270i201508-202104
PLATED,DOOR OUTSIDE HANDLE-CHROME PLATED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-60080i201408-201508
*CR,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69217-60080i201408-201508
*CR,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69217-60100-A0i200709-201508
SUPER WHITE 2,040
main69217-60100-A1i200907-201508
WHITE PEARL CS.,070
main69217-60100-B0i200709-201508
SILVER ME.,1F7
main69217-60100-B1i200709-201508
GRAY ME.,1G3
main69217-60100-C0i200709-201508
BLACK,202
main69217-60100-C1i201201-201508
ATTITUDE BLACK MC.,218
main69217-60100-D0i200709-201508
DK. RED M.M.,3Q3
main69217-60100-E0i200709-201508
BEIGE M.M.,4R3
main69217-60100-F0i200709-201201
GOLD M.M.,5A5
main69217-60100-G0i200709-201508
GREEN M.M.,6V2
main69217-60100-J0i200709-201201
GRAYISH BLUE ME.,8R3
main69217-60100-J1i201201-201408
LT.BLUE M.M.,8S1
main69217-60110i201201-201508
*CR,SOUTH AFRICA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69217-60110i201201-201508
*CR,DOOR OUTSIDE HANDLE-CHROME PLATED
main69217-60120-A0i200709-201508
SUPER WHITE 2,040
sub69217-60120
main69217-60120-A1i201201-201508
WHITE PEARL CS.,070
sub69217-60120
main69217-60120-B0i200709-201508
SILVER ME.,1F7
sub69217-60120
main69217-60120-B1i200709-201508
GRAY ME.,1G3
sub69217-60120
main69217-60120-C0i200709-201508
BLACK,202
sub69217-60120
main69217-60120-C1i201201-201508
ATTITUDE BLACK MC.,218
sub69217-60120
main69217-60120-D0i200709-201508
DK. RED M.M.,3Q3
sub69217-60120
main69217-60120-E0i200709-201508
BEIGE M.M.,4R3
sub69217-60120
main69217-60120-F0i200709-201201
GOLD M.M.,5A5
sub69217-60120
main69217-60120-G0i200709-201508
GREEN M.M.,6V2
sub69217-60120
main69217-60120-J0i200709-201201
GRAYISH BLUE ME.,8R3
sub69217-60120
main69217-60120-J1i201201-201408
LT.BLUE M.M.,8S1
sub69217-60120
main69217-60130i201201-201508
*CR,DOOR OUTSIDE HANDLE-CHROME PLATED
main69217-60140i201201-201408
*CR,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69217-60141
main69217-60140i201201-201408
*CR,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69217-60141
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69218-60030-A0i200709-201508
SUPER WHITE 2,040
sub69218-60030
main69218-60030-A1i201201-201508
WHITE PEARL CS.,070
sub69218-60030
main69218-60030-B0i200709-201508
SILVER ME.,1F7
sub69218-60030
main69218-60030-B1i200709-201508
GRAY ME.,1G3
sub69218-60030
main69218-60030-C0i200709-201508
BLACK,202
sub69218-60030
main69218-60030-C1i201201-201508
ATTITUDE BLACK MC.,218
sub69218-60030
main69218-60030-D0i200709-201508
DK. RED M.M.,3Q3
sub69218-60030
main69218-60030-E0i200709-201508
BEIGE M.M.,4R3
sub69218-60030
main69218-60030-F0i200709-201201
GOLD M.M.,5A5
sub69218-60030
main69218-60030-G0i200709-201508
GREEN M.M.,6V2
sub69218-60030
main69218-60030-J0i200709-201201
GRAYISH BLUE ME.,8R3
sub69218-60030
main69218-60030-J1i201201-201408
LT.BLUE M.M.,8S1
sub69218-60030
main69218-60040i201201-201508
*CR,DOOR OUTSIDE HANDLE-CHROME PLATED
main69218-60050-A0i200709-201508
SUPER WHITE 2,040
main69218-60050-A1i200907-201508
WHITE PEARL CS.,070
main69218-60050-B0i200709-201508
SILVER ME.,1F7
main69218-60050-B1i200709-201508
GRAY ME.,1G3
main69218-60050-C0i200709-201508
BLACK,202
main69218-60050-C1i201201-201508
ATTITUDE BLACK MC.,218
main69218-60050-D0i200709-201508
DK. RED M.M.,3Q3
main69218-60050-E0i200709-201508
BEIGE M.M.,4R3
main69218-60050-F0i200709-201201
GOLD M.M.,5A5
main69218-60050-G0i200709-201508
GREEN M.M.,6V2
main69218-60050-J0i200709-201201
GRAYISH BLUE ME.,8R3
main69218-60050-J1i201201-201408
LT.BLUE M.M.,8S1
main69218-60060i201201-201508
*CR,SOUTH AFRICA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69218-60060i201201-201508
*CR,DOOR OUTSIDE HANDLE-CHROME PLATED
main69218-60070i201201-201408
*CR,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69218-60071
main69218-60070i201201-201408
*CR,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69218-60071
main69218-60080i201408-201508
*CR,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69218-60080i201408-201508
*CR,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-60100-A0i200709-201508
SUPER WHITE 2,040
sub69210-60100
main69210-60100-A2i200907-201508
WHITE PEARL CS.,070
sub69210-60100
main69210-60100-B0i200709-201508
SILVER ME.,1F7
sub69210-60100
main69210-60100-B1i200709-201508
GRAY ME.,1G3
sub69210-60100
main69210-60100-C0i200709-201508
BLACK,202
sub69210-60100
main69210-60100-C1i201201-201508
ATTITUDE BLACK MC.,218
sub69210-60100
main69210-60100-D0i200709-201508
DK. RED M.M.,3Q3
sub69210-60100
main69210-60100-E0i200709-201508
BEIGE M.M.,4R3
sub69210-60100
main69210-60100-F0i200709-201201
GOLD M.M.,5A5
sub69210-60100
main69210-60100-G1i200709-201508
GREEN M.M.,6V2
sub69210-60100
main69210-60100-J0i200709-201201
GRAYISH BLUE ME.,8R3
sub69210-60100
main69210-60100-J1i201201-201408
LT.BLUE M.M.,8S1
sub69210-60100
main69210-60110i201201-201508
PLATED,SOUTH AFRICA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60110i201201-201508
PLATED,DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60140i201201-201408
PLATED,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69210-60141
main69210-60140i201201-201408
PLATED,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
sub69210-60141
main69210-60210i201408-201508
PLATED,RUSSIA SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60210i201408-201508
PLATED,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&DOOR OUTSIDE HANDLE-CHROME PLATED
main69210-60260-A0i201508-202104
SUPER WHITE 2,040
main69210-60260-A1i201508-202104
WHITE PEARL CS.,070
main69210-60260-B0i201508-202104
SILVER ME.,1F7
main69210-60260-B1i201508-202104
GRAY ME.,1G3
main69210-60260-C0i201508-202104
BLACK,202
main69210-60260-C1i201508-202104
ATTITUDE BLACK MC.,218
main69210-60260-C4i201908-202006
SPARKLING BLACK PEARL CS.,220
main69210-60260-D0i201508-202104
DK. RED M.M.,3Q3
main69210-60260-E0i201508-202006
BEIGE M.M.,4R3
main69210-60260-E1i201508-201908
COPPER BROWN MC.,4S6
main69210-60260-J0i201508-201912
DARK BLUE MC.,8P8
main69210-60270i201508-202104
PLATED,DOOR OUTSIDE HANDLE-CHROME PLATED
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
main69241-60030i201508-202104
main69241-60040i200709-201508
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
main69241-60030i201508-202104
main69241-60050i200709-201508
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
main69242-60040i201508-202104
main69242-60060i200709-201508
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
main69242-60040i201508-202104
main69242-60070i200709-201508
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-60090-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRI
main69277-60090-C0i200709-201508
BLACK,TRIM1#,2#
main69277-60090-C0i200709-201201
BLACK,TRIM1#
main69277-60090-C0i201201-201508
BLACK,TRIM2#
main69277-60090-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACC
main69277-60090-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IGSW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(A
main69277-60090-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & T
main69277-60090-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW &ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSO
main69277-60090-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(AC
main69277-60090-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCES
main69277-60090-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IGSW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(
main69277-60090-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW &ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESS
main69277-60090-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IGSW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(A
main69277-60090-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCE
main69277-60090-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM
main69277-60090-C0i201508-202104
BLACK,TRIM0#,1#,2#,4#
main69277-60090-C0i201908-202103
DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT& SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TR
main69277-60090-C0i201908-202103
DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLA
main69277-60090-C0i201908-202103
DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,
main69277-60090-C0i201908-202103
DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM &FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),B
main69277-60090-C0i201508-202104
BLACK,TRIM0#,2#,4#
main69277-60090-C0i201708-202104
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69277-60090-C0i201708-202104
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69277-60090-C0i201608-201708
SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69277-60090-C0i201608-201708
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69277-60090-C0i201608-201708
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69277-60090-E0i200709-201201
DK. BROWN,TRIM4#
main69277-60090-E1i201201-201508
ORCHID BROWN,TRIM0#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-60060-C0i201708-202104
ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69278-60060-C0i200709-201201
BLACK,TRIM1#
main69278-60060-C0i200709-201508
BLACK,TRIM1#,2#
main69278-60060-C0i201708-202104
ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69278-60060-C0i201201-201508
BLACK,TRIM2#
main69278-60060-C0i201608-201708
SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69278-60060-C0i201608-201708
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69278-60060-C0i201608-201708
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TRIM0#,2#,4#
main69278-60060-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW &ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSO
main69278-60060-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(AC
main69278-60060-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCES
main69278-60060-C0i201708-201908
RUSSIA SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IGSW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(
main69278-60060-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW &ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESS
main69278-60060-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IGSW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(A
main69278-60060-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IG SW& ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCE
main69278-60060-C0i201708-201908
UKRAINE SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM
main69278-60060-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACC
main69278-60060-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRI
main69278-60060-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IGSW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(A
main69278-60060-C0i201708-201908
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & T
main69278-60060-C0i201508-202104
BLACK,TRIM0#,1#,2#,4#
main69278-60060-C0i201908-202103
DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT& SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,TR
main69278-60060-C0i201908-202103
DOP PACKAGE(QUILTING SEAT & 20 INCH)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM & FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLA
main69278-60060-C0i201908-202103
DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-IG SW & ROOM & FOOT & SCUFF PLATE&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),BLACK,
main69278-60060-C0i201908-202103
DOP PACKAGE(QUILTING & 20 INCH & *RSE)&ILLUMINATED ENTRY SYSTEM-DOP(IG SW & ROOM &FOOT & SCUFF PLATE)&SEAT COVER MATERIAL-LEATHER(SEMI-ANILINE) & TRIM(ACCESSORY),B
main69278-60060-C0i201508-202104
BLACK,TRIM0#,2#,4#
main69278-60060-E0i200709-201201
DK. BROWN,TRIM4#
main69278-60060-E1i201201-201508
ORCHID BROWN,TRIM0#
69310LOCK ASSY, FRONT DOOR, RH
main69030-42210i200709-201608
SOUTH AFRICA SPEC
main69030-42210i201201-202103
main69030-42210i201301-201508
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)
main69030-42221i200709-202104
NEW CALEDONIA SPEC
main69030-42221i200709-202104
SOUTH AMERICA SPEC
main69030-42221i201908-202104
VIETNAM SPEC
main69030-53080i200709-201608
main69030-53080i201608-201808
INDIA SPEC
main69030-53090i200709-201201
main69030-60250i201201-202104
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-60050i200709-201508
main69311-60070i201508-202104
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-60050i200709-201508
main69312-60070i201508-202104
69320LOCK ASSY, FRONT DOOR, LH
main69040-42230i201201-202103
main69040-42230i201301-201508
SOUTH AFRICA SPEC&ANTI-THEFT SYSTEM-WITH(*IM & ALARM & *TWRS & *INC)
main69040-42230i200709-201608
SOUTH AFRICA SPEC
main69040-42241i200709-202104
NEW CALEDONIA SPEC
main69040-42241i200709-202104
SOUTH AMERICA SPEC
main69040-42241i201908-202104
VIETNAM SPEC
main69040-53090i200709-201201
main69040-53100i200709-202104
main69040-60220i201201-201608
main69040-60220i201608-201808
INDIA SPEC
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-30060i200709-201201
main69410-60030i201201-202104
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-33010i200709-201201
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-60020i200709-202104
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-60020i200709-202104
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-60030i200709-202104
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-60030i200709-202104
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-53010i200709-201508
RH
main89743-53020i200709-201508
LH
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9018906018
main90189-06018
9356015020
main93560-15020

31 parts on this diagram · 2 diagrams in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
