SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
55713CPANEL, COWL TOP SIDE, RH
5752
57686EBRACKET, FUEL TANK MOUNTING, REAR RH
61013CPANEL SUB-ASSY, SIDE, INNER RH
61033AREINFORCE SUB-ASSY, BACK DOOR OPENING SIDE
61061DGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61113APANEL, SIDE, OUTER NO.2 RH
61125DGUSSET, SIDE PANEL
61131CPILLAR, FRONT BODY, OUTER RH
61203RAIL SUB-ASSY, ROOF SIDE, INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61237EBRACKET, ASSIST GRIP, NO.1
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61303REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61315CRETAINER, DOOR LOCK STRIKER, RH
61401CPANEL SUB-ASSY, ROCKER, OUTER RH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61510PANEL ASSY, REAR UPPER SIDE, RH
TAILGATE DOOR EASY CLOSER-WITH&EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
TAILGATE DOOR EASY CLOSER-WITH&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)
61619EREINFORCEMENT, QUARTER PANEL
61623DEXTENSION, QUARTER PANEL, FRONT RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
ESTONIA OR LATVIA OR LITHUANIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
CYPRUS SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
GREECE SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
SLOVENIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
BELGIUM SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
CANARY ISLANDS SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
ENGLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
ITALY OR NETHERLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2SEAT-WITHOUT
GERMANY SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
SWITZERLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
PORTUGAL SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
NORWAY,DENMARK,SWEDEN,FINLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
FRANCE SPEC OR SPAIN SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2SEAT-WITHOUT
RUMANIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
IRELAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
AUSTRIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
CZECHOSLOVAKIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
ICELAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
POLAND OR HUNGARY SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
TURKEY SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
REAR NO.2 SEAT-WITHOUT
61643DPATCH, QUARTER WHEEL HOUSE, NO.1 RH
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61647RETAINER, REAR SEATBACK PIVOT, LOWER
61653BBRACKET, DECK SIDE TRIM
61654ABRACKET, DECK SIDE TRIM, NO.2
61655ABRACKET, DECK SIDE TRIM, NO.3
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61677DBRACKET, REAR SUSPENSION BUMPER, RH
RUSSIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
LEBANON SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
CYPRUS SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
GREECE SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
SLOVENIA, CROATIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
WITH(AVS)
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
BELGIUM SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
CANARY ISLANDS SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
UNITED KINGDOM SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
ITALY OR NETHERLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
GERMANY SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
SWITZERLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
PORTUGAL SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
NORWAY, DENMARK, SWEDEN, FINLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
FRANCE OR SPAIN SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
RUMANIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
IRELAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
AUSTRIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
CZECH SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
ICELAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
POLAND OR HUNGARY SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
ESTONIA OR LATVIA OR LITHUANIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
ENGLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
NORWAY,DENMARK,SWEDEN,FINLAND SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
FRANCE SPEC OR SPAIN SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
REUNION OR MARTINIQUE OR GUADELOUP SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIRKIT)
GUIANA SPEC OR GIBRALTAR SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
CZECHOSLOVAKIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
TURKEY SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
SLOVENIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
ISRAEL SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
REAR NO.2 SEAT-WITHOUT
61703ABRACKET,FUEL TANK FILLTER PIPE PROTECTOR
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
61707PANEL SUB-ASSY, QUARTER, INNER RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61715AEXTENSION, ROOF SIDE, INNER UPPER RH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61719BBRACKET, ROOF SIDE, INNER
61729DPLATE, FUEL INLET BOX
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61737GREINFORCEMENT, ROOF SIDE, INNER RH
61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61745AREINFORCEMENT, BACK DOOR OPENING, LOWER RH
61747BREINFORCEMENT, ROOF SIDE, INNER REAR, RH
61751BRETAINER, QUARTER TRIM, UPPER
TAILGATE DOOR EASY CLOSER-WITH&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)
TAILGATE DOOR EASY CLOSER-WITH&AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)
AIR CONDITIONER-AUTO(4SEAT INDEPENDENT CONTROL)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD & JBL & 14SPEAKER
61753ARETAINER, QUARTER TRIM, LOWER
61753CRETAINER, QUARTER TRIM, LOWER
61773APATCH, BACK DOOR OPENING, LOWER RH
61777BREINFORCE, BACK DOOR SIDE STOPPER FEMALE, RH
61958BRACKET, REAR SEAT LEG, NO.1 RH
6255360080TRIM, FLOOR SIDE
6255360090TRIM, FLOOR SIDE
91631B0625

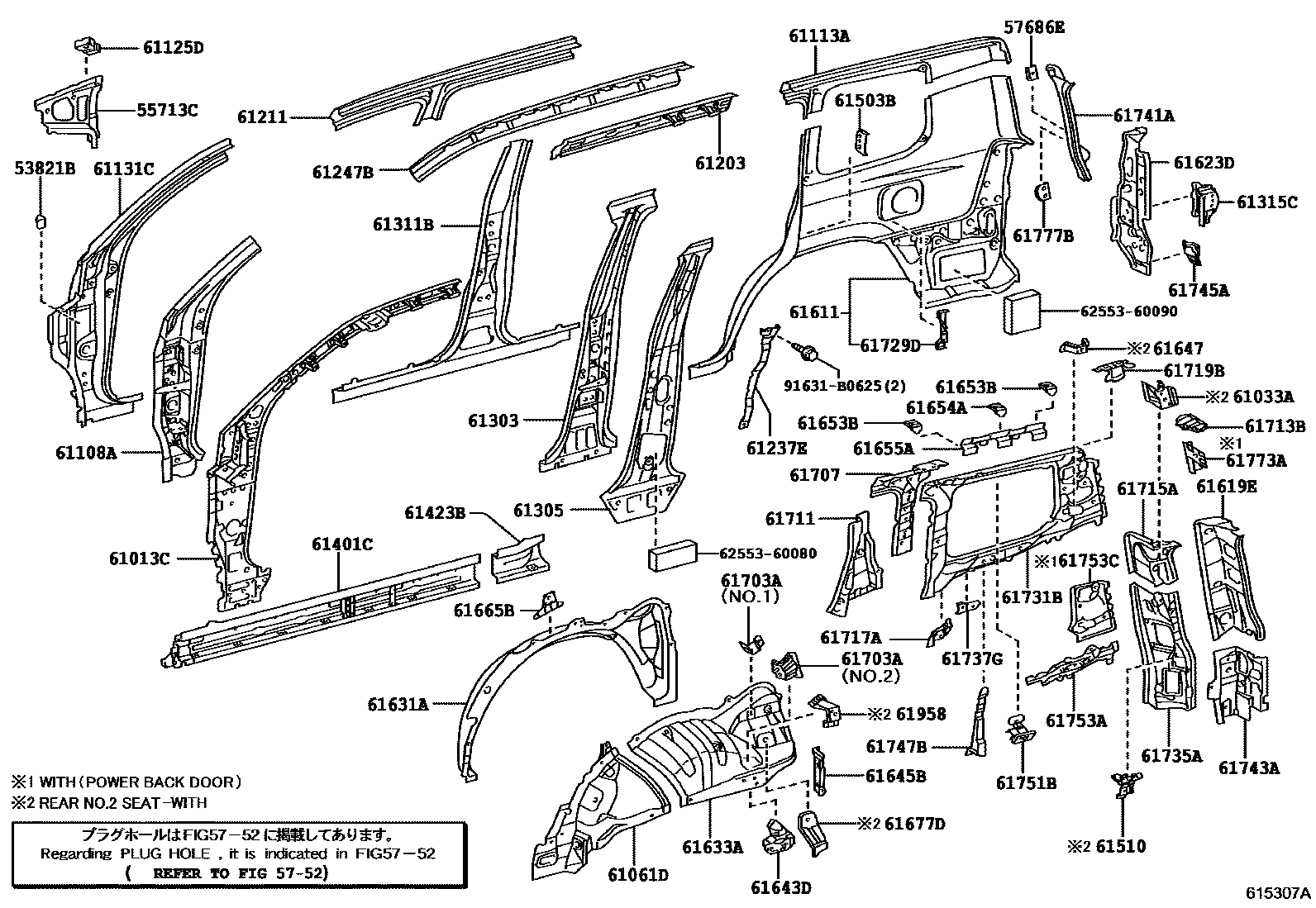

60 parts on this diagram · 2 diagrams in section
