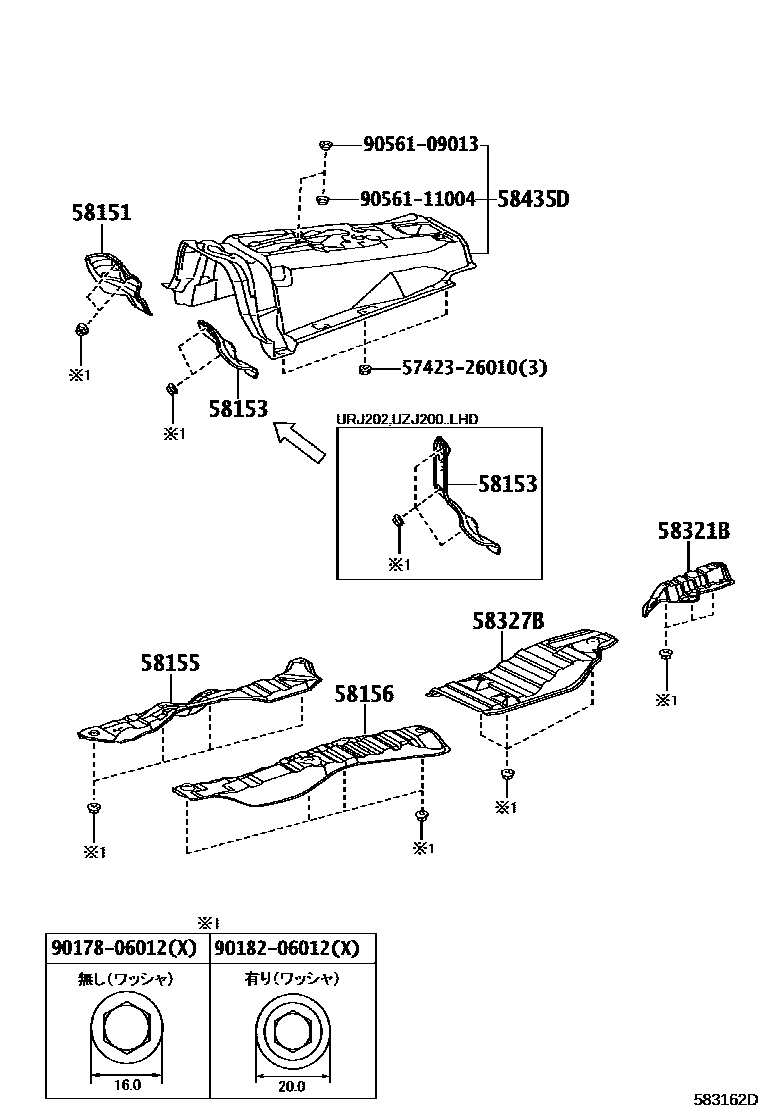

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-60110iURJ202,VDJ200200709-201807

sub58151-60111

main58151-60111iVDJ200..08S;URJ202..VXR;URJ202..05S201808-202104

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-60090iVDJ200;UZJ200..RHD200709-201201

main58153-60110iURJ202200709-201807

sub58153-60111

main58153-60111iURJ202..VXR;URJ202..05S201808-202104

main58153-60120iVDJ200201201-201806

sub58153-60121

main58153-60121iVDJ200..08S201807-202104

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-60060iUZJ200,VDJ200200709-201111

sub58155-60061

main58155-60061iUZJ200,VDJ200201112-201902

main58155-60062iVDJ200..08S;URJ202..VXR;URJ202..05S201902-202104

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-60020iUZJ200,VDJ200200709-201109

sub58156-60021

main58156-60021iUZJ200,VDJ200201109-201112

sub58156-60022

main58156-60022iUZJ200,VDJ200201112-201902

main58156-60023iVDJ200..08S;URJ202..VXR;URJ202..05S201902-202104

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-60060iUZJ200,VDJ200200709-201901

sub58321-60061

main58321-60061iVDJ200..08S;URJ202..VXR;URJ202..05S201902-202104

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-60090iUZJ200,VDJ200200709-201709

sub58327-60091

main58327-60091iVDJ200..08S;URJ202..VXR;URJ202..05S201710-202104

58435DSILENCER, FRONT FLOOR, CENTER

main58563-60050iUZJ200,VDJ200200709-202104

5742326010BRACKET, FRONT FLOOR REINFORCEMENT, RH

main57423-26010

9017806012

main90178-06012

9018206012

main90182-06012

9056109013

main90561-09013

9056111004

main90561-11004

12 parts on this diagram · 1 diagram in section
