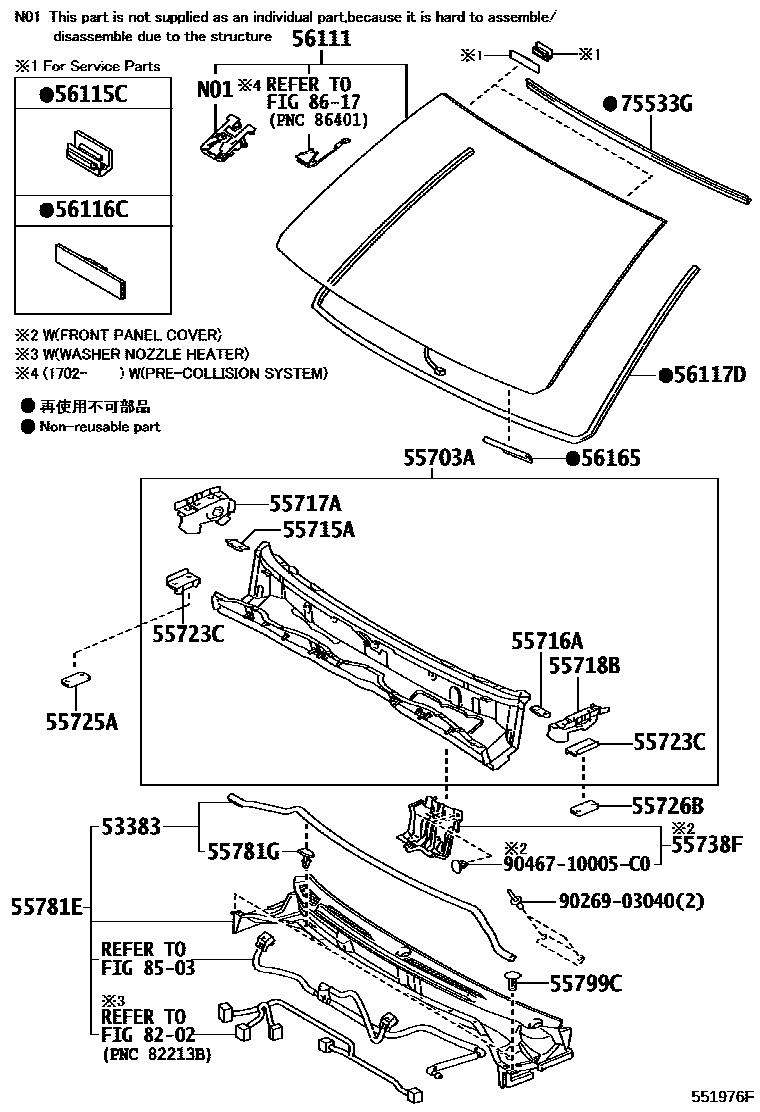

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-60070iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S200709-202104

main53383-60120iVDJ200..RHD201808-202103

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-60290iUZJ200,VDJ200..LHD200709-201212

main55703-60291iVDJ200..LHD..08S201301-202104

main55703-60330iURJ202,VDJ200..RHD200709-201508

main55703-60430iURJ202..VXR;URJ202..05S201908-202104

main55703-60460iVDJ200..RHD201508-202103

55715ABRACE, COWL TOP TO APRON, RH

main55715-60040iUZJ200,VDJ200200709-202104

55716ABRACE, COWL TOP TO APRON, LH

main55716-60040iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

55717APANEL, COWL TOP SIDE, INNER RH

main55717-60050iURJ202,VDJ200200709-202104

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-60060iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

55723CREINFORCEMENT, COWL TOP SIDE, RH

main55723-60020iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

55725AREINFORCEMENT, HOOD HINGE MOUNTING, RH

main55725-60040iUZJ200,VDJ200200709-202104

55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH

main55725-60040iUZJ200,VDJ200200709-202104

55738FCOVER, FRONT PANEL, LH

main55738-60020iURJ202..08S..VX201908-202104

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-60070iUZJ200,VDJ200..RHD200709-201008

sub55708-60071

main55708-60071iVDJ200..RHD201009-201808

main55708-60080iUZJ200..RHD201008-201009

sub55708-60081

main55708-60081iURJ202..RHD201009-201508

COLD SPEC

main55708-60090iUZJ200,VDJ200..LHD200709-201008

sub55708-60091

main55708-60091iUZJ200,VDJ200..LHD201009-202104

main55708-60191iURJ202..08S..VX201908-202104

main55708-60340iVDJ200..RHD201808-202103

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108iVDJ200..05S;URJ202..08S..VX200709-202104

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-60020iUZJ200,VDJ200200709-202104

56111GLASS, WINDSHIELD

main56101-60905iUZJ200..RHD200709-201201

*LAM,T=5.36,GREEN

sub56101-60924

main56101-60910iVDJ200..LHD200709-201201

*LAM,T=5.36,GREEN

sub56101-60929

main56101-60911iUZJ200,VDJ200..RHD201008-201201

*EHL,T=5.36,GREEN

sub56101-60930

main56101-60924iURJ202..LHD201201-201308

*LAM,T=5.36,GREEN

sub56101-60950

main56101-60929iVDJ200..LHD201201-201301

*LAM,T=5.36,GREEN

sub56101-60945

main56101-60930iURJ202,VDJ200..RHD201201-201301

*LAM,T=5.36,GREEN

sub56101-60949

main56101-60945iVDJ200..LHD201301-201308

sub56101-60953

main56101-60949iURJ202,VDJ200..RHD201301-201308

sub56101-60954

main56101-60950iURJ202..LHD201308-201508

*LAM,T=5.36,GREEN

sub56101-6A970

main56101-60953iVDJ200..LHD201308-201508

*LAM,T=5.36,GREEN

sub56101-6A971

main56101-60954iURJ202,VDJ200..RHD201308-201508

*LAM,T=5.36,GREEN

sub56101-6A944

main56101-60963iVDJ200..RHD201508-201702

sub56101-6A915

main56101-60964iURJ202,VDJ200..LHD201508-201702

sub56101-6A916

main56101-6A915iVDJ200..RHD201703-201908

sub56101-6A968

main56101-6A916iURJ202,VDJ200..LHD201703-201908

sub56101-6A952

main56101-6A951iVDJ200..RHD201908-202103

main56101-6A952iURJ202..08S..VX201908-202104

SOUTH AMERICA SPEC&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main56101-6A952iVDJ200..LHD..08S201908-202103

NEW CALEDONIA SPEC

main56101-6A952iVDJ200..LHD..08S201908-202103

AZERBAIJAN, GEORGIA, ARMENIA SPEC

main56101-6A952iVDJ200..LHD..08S201908-202103

ARMENIA SPEC&

main56101-6A952iVDJ200..LHD..08S201908-202104

AZERBAIJAN, GEORGIA, ARMENIA SPEC&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main56101-6A952iVDJ200..LHD..08S201908-202104

ARMENIA SPEC&&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main56101-6A952iVDJ200..05S201908-202104

NEW CALEDONIA SPEC&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main56101-6A952iVDJ200..05S201908-202104

VIETNAM SPEC&WINDSHIELD GLASS-WITH(RAIN SENSOR)

main56101-6A953iURJ202..VXR;URJ202..05S201908-202104

RUSSIA SPEC

main56101-6A953iVDJ200..LHD..08S201908-202104

KAZAKHSTAN SPEC

main56101-6A953iVDJ200..LHD..08S201908-202104

UKRAINE SPEC

56115CSTOPPER, WINDSHIELD GLASS

main56115-30100iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-60100iVDJ200..LHD200709-201508

L=2914,COLD SPEC

sub56117-64010

main56117-60100iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

L=2914

sub56117-64010

main56117-60100iUZJ200,VDJ200200709-201201

L=2914,COLD SPEC&INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)

sub56117-64010

main56117-60100iUZJ200,VDJ200200709-201201

L=2914,INTERMITTENT WIPER-WITH(TIME ADJUSTMENT & RAIN SENSOR)

sub56117-64010

56165COVER, FRONT WINDOW INNER MOULDING, LH

main56165-60010iUZJ200,VDJ200200709-202104

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-60050iUZJ200,VDJ200200709-201310

sub75531-60070

main75531-60070iURJ202,VDJ200201311-201412

sub75531-60080

main75531-60080iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201501-202104

8202

8503

8617

9026903040

main90269-03040

9046710005C0

main90467-10005C0

24 parts on this diagram · 1 diagram in section
