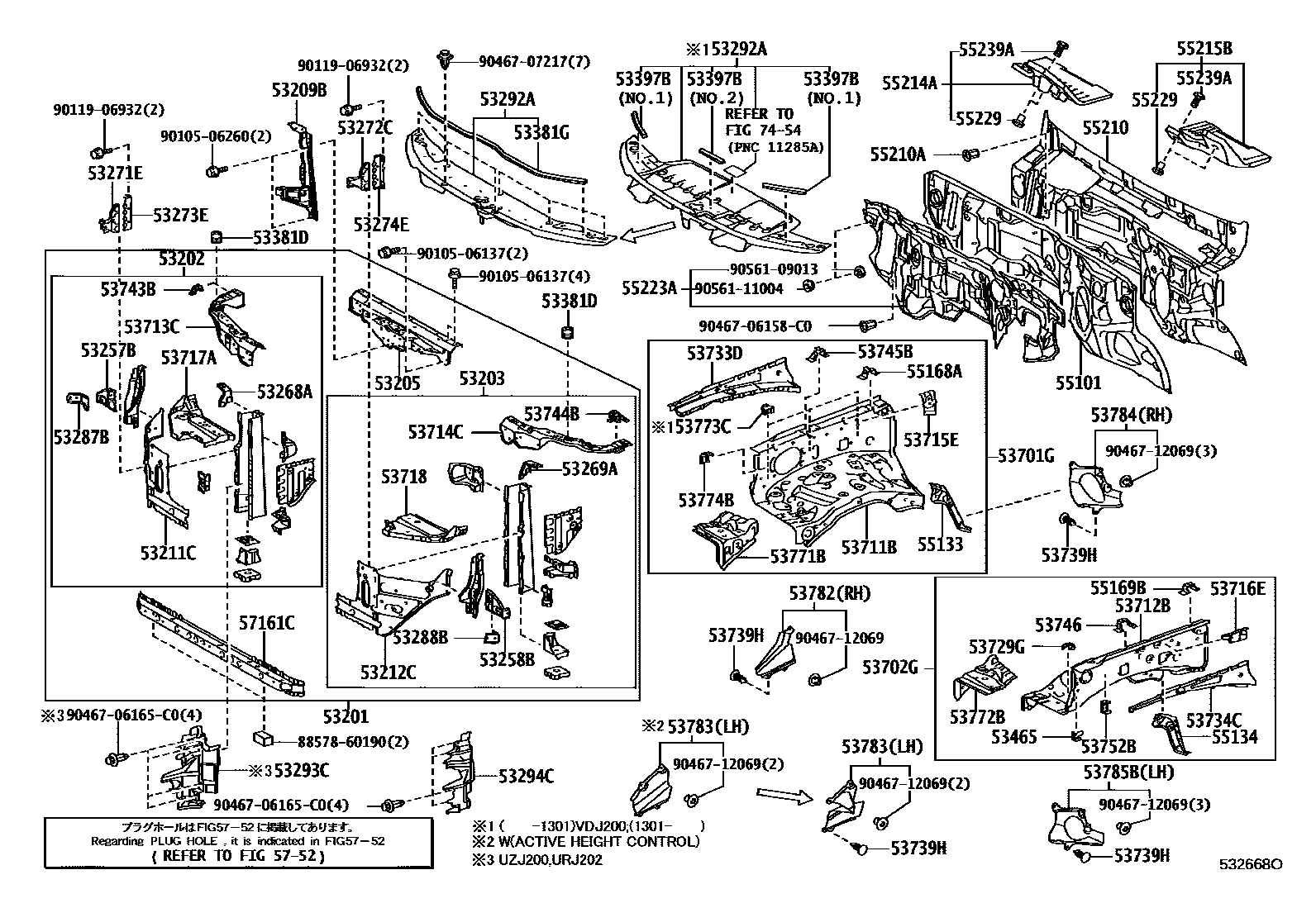

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

53201SUPPORT SUB-ASSY, RADIATOR

main53201-60250iUZJ200,VDJ200200709-201109

main53201-60251iURJ202,VDJ200201201-201508

main53201-60300iURJ202,VDJ200201508-201807

main53201-60330iVDJ200..05S;URJ202..08S..VX201808-202104

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-60200iUZJ200,VDJ200200709-201109

main53202-60201iURJ202,VDJ200201201-201508

main53202-60260iURJ202,VDJ200201508-201807

main53202-60280iVDJ200..05S;URJ202..08S..VX201808-202104

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-60210iUZJ200,VDJ200200709-201109

main53203-60211iURJ202,VDJ200201201-201508

main53203-60270iURJ202,VDJ200201508-201807

main53203-60290iVDJ200..05S;URJ202..08S..VX201808-202104

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-60060iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-60110iUZJ200,VDJ200200709-201201

main53209-60170iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53211CSUPPORT, RADIATOR, RH

main53211-60230iURJ202,VDJ200201201-201508

53212CSUPPORT, RADIATOR, LH

main53212-60190iURJ202,VDJ200201201-201508

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-60050iURJ202,VDJ200201201-201508

main53257-60100iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53258BBRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH

main53258-60030iUZJ200,VDJ200200709-201201

main53258-60050iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53265-60030iURJ202,VDJ200201201-201508

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53266-60010iURJ202,VDJ200201201-201508

53271EBRACKET, HEADLAMP MOUNTING, RH

main53271-60020iURJ202,VDJ200201201-201508

main53271-60080iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53272CBRACKET, HEADLAMP MOUNTING, LH

main53272-60020iURJ202,VDJ200201201-201508

main53272-60080iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53273EBRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-60070iURJ202,VDJ200201201-201508

53274EBRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-60070iURJ202,VDJ200201201-201508

53287BEXTENSION, RADIATOR SUPPORT, RH

main53287-60080iURJ202,VDJ200201201-201508

53288BEXTENSION, RADIATOR SUPPORT, LH

main53288-60060iURJ202,VDJ200201201-201508

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-60030iUZJ200200709-201201

main53292-60060iVDJ200200709-201201

main53292-60100iVDJ200201201-201508

main53292-60140iURJ202..08S..VX201508-202104

main53292-60150iVDJ200201508-201608

sub28897-54030

main53292-60180iVDJ200..05S;VDJ200..RHD..VXR201608-202104

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-60070iUZJ200200709-201201

main53293-60120iURJ202201201-201508

main53293-60170iURJ202..08S..VX201508-202104

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-60080iUZJ200,VDJ200200709-201201

main53294-60130iURJ202,VDJ200201201-201508

main53294-60170iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53381DBUMPER, HOOD TO FRONT SHROUD

main53382-60030×2iURJ202,VDJ200201201-201508

53381GSEAL, HOOD TO RADIATOR SUPPORT, NO.1

main53381-60110iURJ202201201-201508

main53381-60150iURJ202..08S..VX201508-202104

53397BSEAL, RADIATOR, UPPER

main53397-60020×2iVDJ200201201-201508

NO.1:REFER ILLUST.

main53397-60030iVDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53465BRACKET,WASHER TANK

main53753-60010iURJ202,VDJ200201201-201508

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-60B20iVDJ200..05S;VDJ200..RHD..VXR201508-202104

main53701-60B30iUZJ200200709-201010

main53701-60B40iVDJ200200709-201010

main53701-60C20iVDJ200201201-201508

main53701-60C40iURJ202201201-201301

main53701-60E10iURJ202201301-201508

main53701-60E70iURJ202..08S..VX201508-202104

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-60B30iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

main53702-6A280iURJ202,VDJ200201201-201508

53711BAPRON, FRONT FENDER, FRONT RH

main53711-60880iUZJ200,VDJ200200709-201010

main53711-60A40iUZJ200,VDJ200201010-201201

53712BAPRON, FRONT FENDER, FRONT LH

main53712-60A60iUZJ200,VDJ200200709-201201

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-60080iURJ202,VDJ200201201-201508

main53713-60100iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-60030iURJ202,VDJ200201201-201508

main53714-60060iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53715EEXTENSION, FRONT FENDER APRON, REAR RH

main53715-60040iURJ202,VDJ200201201-201508

53716EEXTENSION, FRONT FENDER APRON, REAR LH

main53716-60040iURJ202,VDJ200201201-201508

53717APLATE, FENDER APRON

main53717-60020iURJ202,VDJ200201201-201508

53718PLATE, FENDER APRON, LH

main53718-60020iURJ202,VDJ200201201-201508

53729GBRACKET, FENDER APRON, LH

main53729-60030iURJ202,VDJ200201201-201508

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-60050iURJ202,VDJ200201201-201508

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-60060iURJ202,VDJ200201201-201508

53739HCLIP(FOR FRONT FENDER APRON SEAL)

main90467-10210×5supersedes 90467-10210iURJ202..VXR;VDJ200..05S..VXR201508-201601

SUSPENSION-ACTIVE HEIGHT CONTROL

main90467-10216×5iVDJ200..LHD..08S..VX201602-202103

SUSPENSION-ACTIVE HEIGHT CONTROL

53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-60070iUZJ200,VDJ200200709-201109

main53743-60071iUZJ200,VDJ200201110-201201

main53743-60110iURJ202,VDJ200201508-201807

main53743-60160iVDJ200..08S;URJ202..VXR;URJ202..05S201808-202103

53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-60070iUZJ200,VDJ200200709-201109

main53744-60071iUZJ200,VDJ200201110-201201

main53744-60100iURJ202,VDJ200201508-201807

main53744-60120iVDJ200..08S;URJ202..VXR;URJ202..05S201808-202103

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-60030iUZJ200,VDJ200200709-201201

main53745-60070iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53745-60030iUZJ200,VDJ200200709-201201

main53745-60070iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53752BBRACKET, WASHER TANK MOUNTING

main53752-60010iUZJ200,VDJ200200709-201201

53771BSUPPORT, BATTERY CARRIER, RH

main53703-60040iVDJ200200709-201201

main53771-60040iURJ202..VXR;URJ202..05S201508-202103

53772BSUPPORT, BATTERY CARRIER, LH

main53704-60040iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

53773CBRACKET, AIR CLEANER MOUNTING

main53773-60060×2iURJ202..VXR;URJ202..05S201508-202103

53774BBRACKET, AIR CLEANER MOUNTING, NO.2

main53774-60040iURJ202,VDJ200201201-201508

53782PACKING, FRONT FENDER APRON TRIM, A

main53781-60010iVDJ200201201-201508

main53781-60020iURJ202..08S..VX201508-202104

53783PACKING, FRONT FENDER APRON TRIM, B

main53782-60030iVDJ200..05S;VDJ200..RHD..VXR201508-202104

main53782-60040iURJ202..VXR;URJ202..05S201508-202103

main53782-60010supersedes 53782-60030iVDJ200..LHD201201-201508

SUSPENSION-ACTIVE HEIGHT CONTROL

main53782-60020supersedes 53782-60040iURJ202..VXR201508-202103

SUSPENSION-ACTIVE HEIGHT CONTROL

53784PACKING, FRONT FENDER APRON TRIM, C

main53783-60080iVDJ200201201-201508

main53783-60090iURJ202201201-201508

main53783-60100iVDJ200..05S;VDJ200..RHD..VXR201508-202104

main53783-60110iURJ202..VXR;URJ202..05S201508-202103

53785BPACKING, FRONT FENDER APRON TRIM, D

main53784-60070iVDJ200201201-201508

main53784-60080iUZJ200200709-201201

main53784-60090iVDJ200..05S;VDJ200..RHD..VXR201508-202104

main53784-60100iURJ202..VXR;URJ202..05S201508-202103

55101PANEL SUB-ASSY, DASH

main55101-60C80iUZJ200,VDJ200..LHD200709-201201

main55101-60D00iURJ202,VDJ200..RHD201201-201508

55133PLATE, FRONT FENDER APRON SET, LOWER RH

main55133-60050iUZJ200,VDJ200200709-201201

55134PLATE, FRONT FENDER APRON SET, LOWER LH

main55134-60050iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

55168ABRACKET, FRONT FENDER MOUNTING, RH

main55731-60020iURJ202,VDJ200201201-201508

main55731-60050iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

55169BBRACKET, FRONT FENDER MOUNTING, LH

main55731-60020iUZJ200,VDJ200200709-201201

main55731-60050iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

55210INSULATOR ASSY, DASH PANEL

main55210-60190iURJ202..LHD201201-201508

main55210-60191iURJ202..08S..VX201703-202104

main55210-60200iVDJ200..LHD201508-201511

main55210-60201iVDJ200..05S201512-202104

main55210-60210iUZJ200..RHD200709-201201

main55210-60220iVDJ200..RHD201508-201603

main55210-60221iVDJ200..RHD201603-202103

55210ACLIP

main90467-06155iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202103

55214APAD, DASH PANEL INSULATOR, NO.2

main55215-60030iVDJ200..05S;URJ202..08S..VX201508-202104

main55215-60040iUZJ200,VDJ200..RHD200709-201201

55215BPAD, DASH PANEL INSULATOR, NO.3

main55214-60010iURJ202,VDJ200..LHD201201-201508

main55214-60020iURJ202,VDJ200..RHD201201-201508

55223AINSULATOR, DASH PANEL, OUTER

main55223-60360iURJ202,VDJ200..LHD201201-201508

main55223-60361iURJ202,VDJ200..LHD201601-202101

main55223-60362iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S202102-202103

main55223-60370iURJ202,VDJ200..RHD201201-201508

main55223-60371iVDJ200..RHD202102-202103

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-48010×4iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×4iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

57161CMEMBER, FRONT CROSS

main57161-60020iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

5752

7454

8857860190PAKING, COOLER AIR DUCT

main88578-60190

9010506137

main90105-06137

9010506260

main90105-06260

9011906932

main90119-06932

9046706158C0

main90467-06158C0

9046706165C0

main90467-06165C0

9046707217

main90467-07217

9046712069

main90467-12069

9056109013

main90561-09013

9056111004

main90561-11004

76 parts on this diagram · 4 diagrams in section
