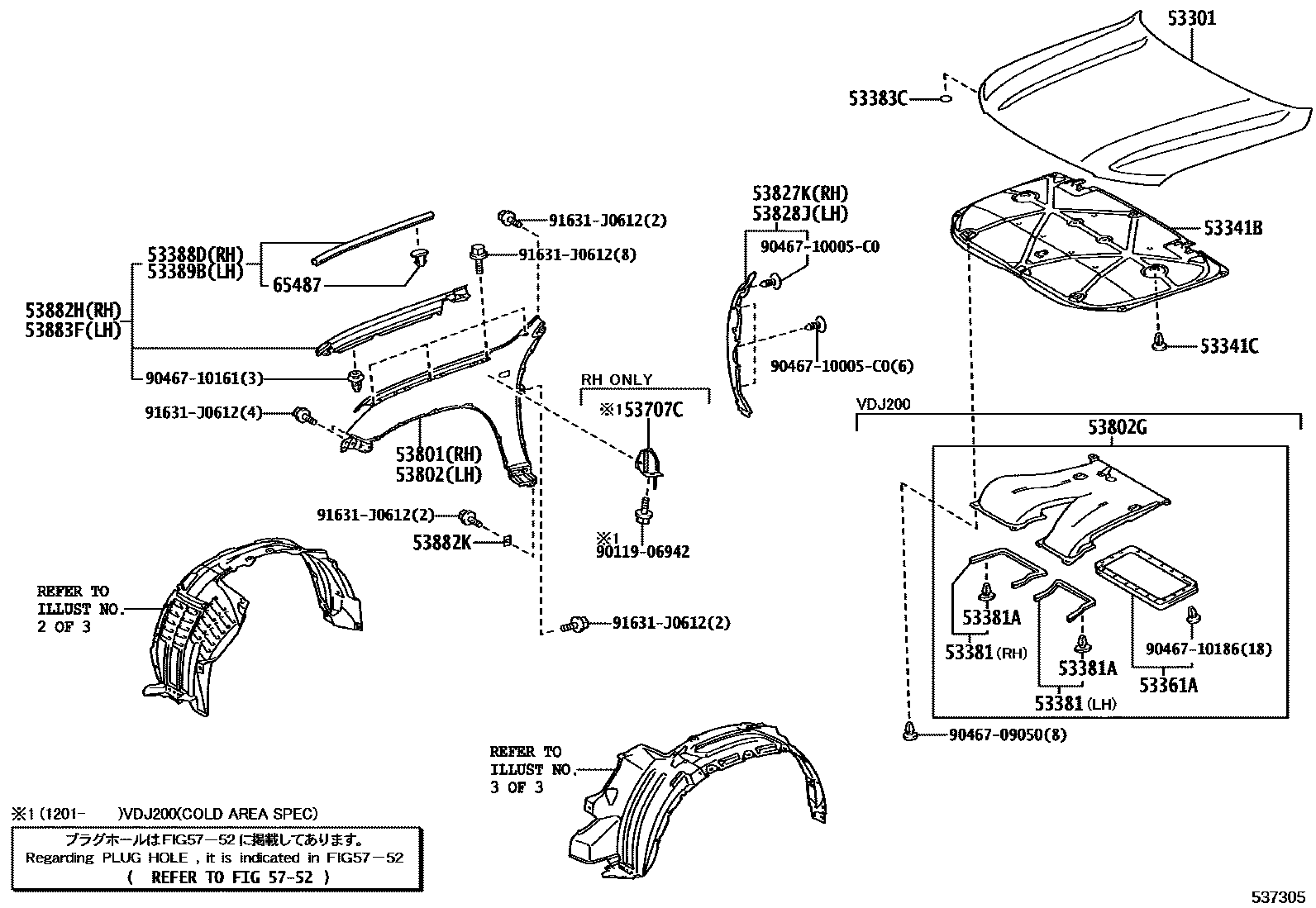

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER RH 0003 1FENDER LINER LH

53301HOOD SUB-ASSY

main53301-60590iUZJ200,VDJ200200709-201204

sub53301-60591

main53301-60591iURJ202,VDJ200201205-201508

main53301-60690iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

53341BINSULATOR, HOOD

main53341-60330iVDJ200200709-201508

main53341-60340iURJ202200709-201508

main53341-60390iURJ202..08S..VX201508-202104

main53341-60400iVDJ200201508-201808

sub53341-60401

main53341-60401iVDJ200..05S201809-202104

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iVDJ200..05S;VDJ200..RHD..VXR200709-202104

53361AWEATHERSTRIP, HOOD

main53361-60040iVDJ200200709-202104

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-60090iVDJ200200709-202104

RH

main53381-60100iVDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

LH

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08108iVDJ200200709-202104

53383CSEAL, HOOD TO COWL TOP

main53397-60010iUZJ200,VDJ200200709-202104

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-60020iUZJ200,VDJ200200709-201508

main53388-60060iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-60020iURJ202,VDJ200200709-201508

main53389-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

53801FENDER SUB-ASSY, FRONT RH

main53801-60B80iUZJ200,VDJ200200709-201201

main53801-60B90iURJ202,VDJ200201201-201508

main53801-60D50iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

53802FENDER SUB-ASSY, FRONT LH

main53802-60B50iUZJ200,VDJ200200709-201201

main53802-60B60iURJ202,VDJ200201201-201508

main53802-60D60iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

53802GDUCT,COOLING FAN AIR

main53207-60170iVDJ200200709-201508

main53207-60200iVDJ200..05S;VDJ200..RHD..VXR201508-202104

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-60020iUZJ200,VDJ200200709-202104

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-60040iUZJ200,VDJ200200709-202104

53882HSEAL, FRONT FENDER MAIN, RH

main53805-60020iUZJ200,VDJ200200709-201107

sub53805-60021

main53805-60021iUZJ200,VDJ200201108-201508

main53805-60090iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

53882KSEAL, FRONT FENDER

main53882-16030iUZJ200,VDJ200200709-202104

53883FSEAL, FRONT FENDER MAIN, LH

main53806-60020iUZJ200,VDJ200200709-201508

main53806-60080iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

5752

65487CLIP, CORNER PROTECTOR

main65487-60010iUZJ200,VDJ200200709-202104

9011906942

main90119-06942

9046709050

main90467-09050

9046710005C0

main90467-10005C0

9046710161

main90467-10161

9046710186

main90467-10186

91631J0612

main91631-J0612

26 parts on this diagram · 3 diagrams in section
