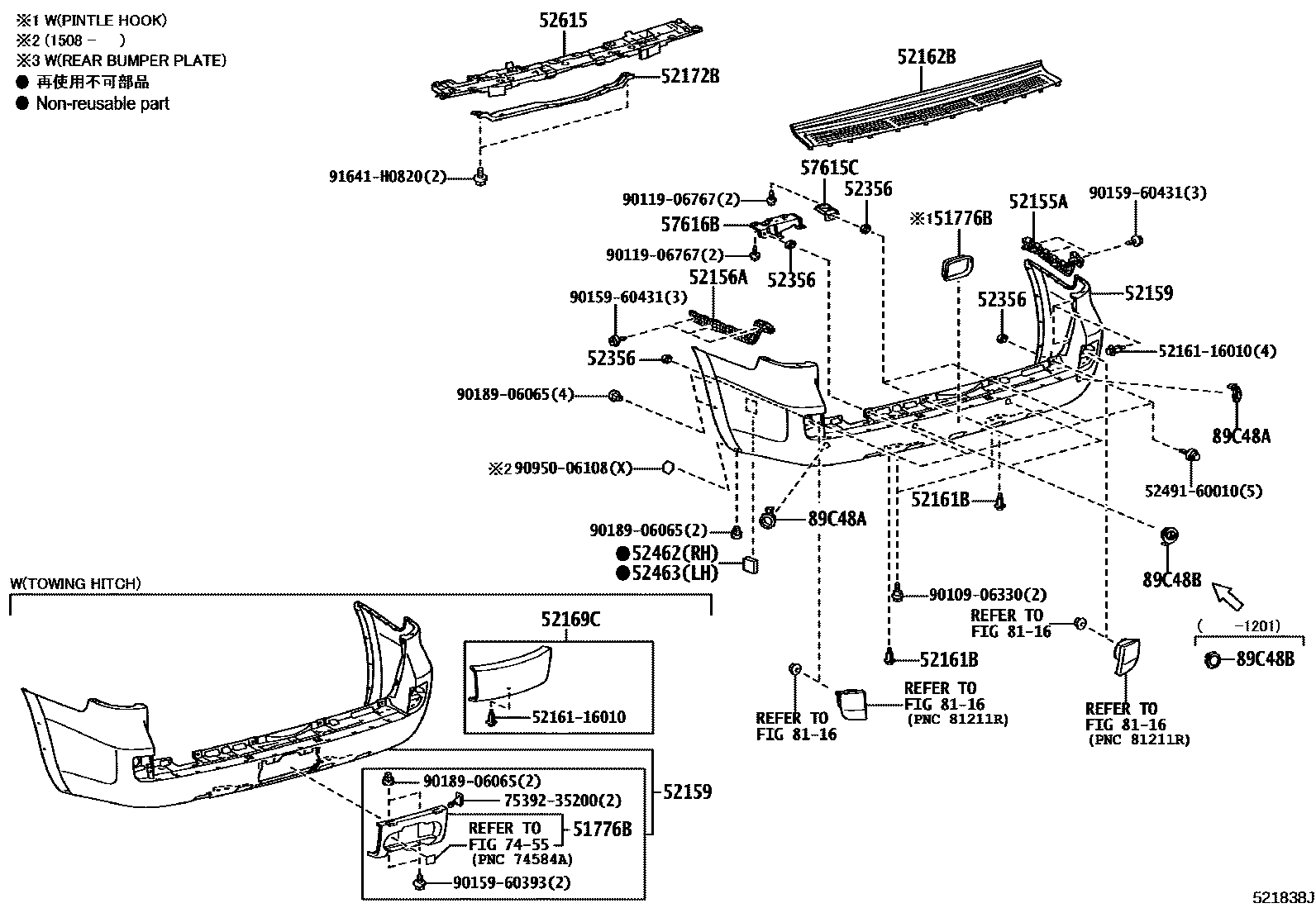

REAR BUMPER & BUMPER STAY
51776BCOVER, REAR STEP, NO.2
TOWING HITCH-WITH(PINTLE HOOK)&CLEARANCE & BACK SONAR-WITH
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH
52155ASUPPORT, REAR BUMPER SIDE, RH
52156ASUPPORT, REAR BUMPER SIDE, LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
REAR BUMPER-WITHOUT(REAR STEP)&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)
PAINT REQ.,TOWING HITCH-WITH(PINTLE HOOK)&CLEARANCE & BACK SONAR-WITH
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH
52161BPIECE, REAR BUMPER
sub52161-0K040
52162BPLATE, REAR BUMPER, NO.1
52169CCOVER, REAR BUMPER, LOWER
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,SUPER WHITE 2,040
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,WHITE PEARL CS.,070
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,SILVER ME.,1F7
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,GRAY ME.,1G3
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,BLACK,202
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,ATTITUDE BLACK MC.,218
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,SPARKLING BLACK PEARL CS.,220
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,DK. RED M.M.,3Q3
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,BEIGE M.M.,4R3
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,COPPER BROWN MC.,4S6
TOWING HITCH-FOR WEIGHT DISTRIBUTION HITCH,DARK BLUE MC.,8P8
52172BREINFORCEMENT, REAR BUMPER, NO.2
52356CUSHION, REAR BUMPER STEP
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52615ABSORBER, REAR BUMPER ENERGY
57615CBRACKET, REAR BUMPER ARM
57616BBRACKET, REAR BUMPER ARM
7455
8116
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),DK. RED M.M.,3Q3
BEIGE M.M.,4R3
GREEN M.M.,6V2
LT.BLUE M.M.,8S1
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
SILVER ME.,1F7
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
CLEARANCE & BACK SONAR-WITH,BLACK,202
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),DK. RED M.M.,3Q3
BEIGE M.M.,4R3
GREEN M.M.,6V2
LT.BLUE M.M.,8S1
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
5249160010BOLT, BUMPER PAD
main52491-60010
7539235200RETAINER, OUTSIDE MOULDING
main75392-35200
9010906330
main90109-06330
9011906767
main90119-06767
9015960393
main90159-60393
9015960431
main90159-60431
9018906065
main90189-06065
9095006108
main90950-06108
91641H0820
main91641-H0820
28 parts on this diagram · 1 diagram in section
