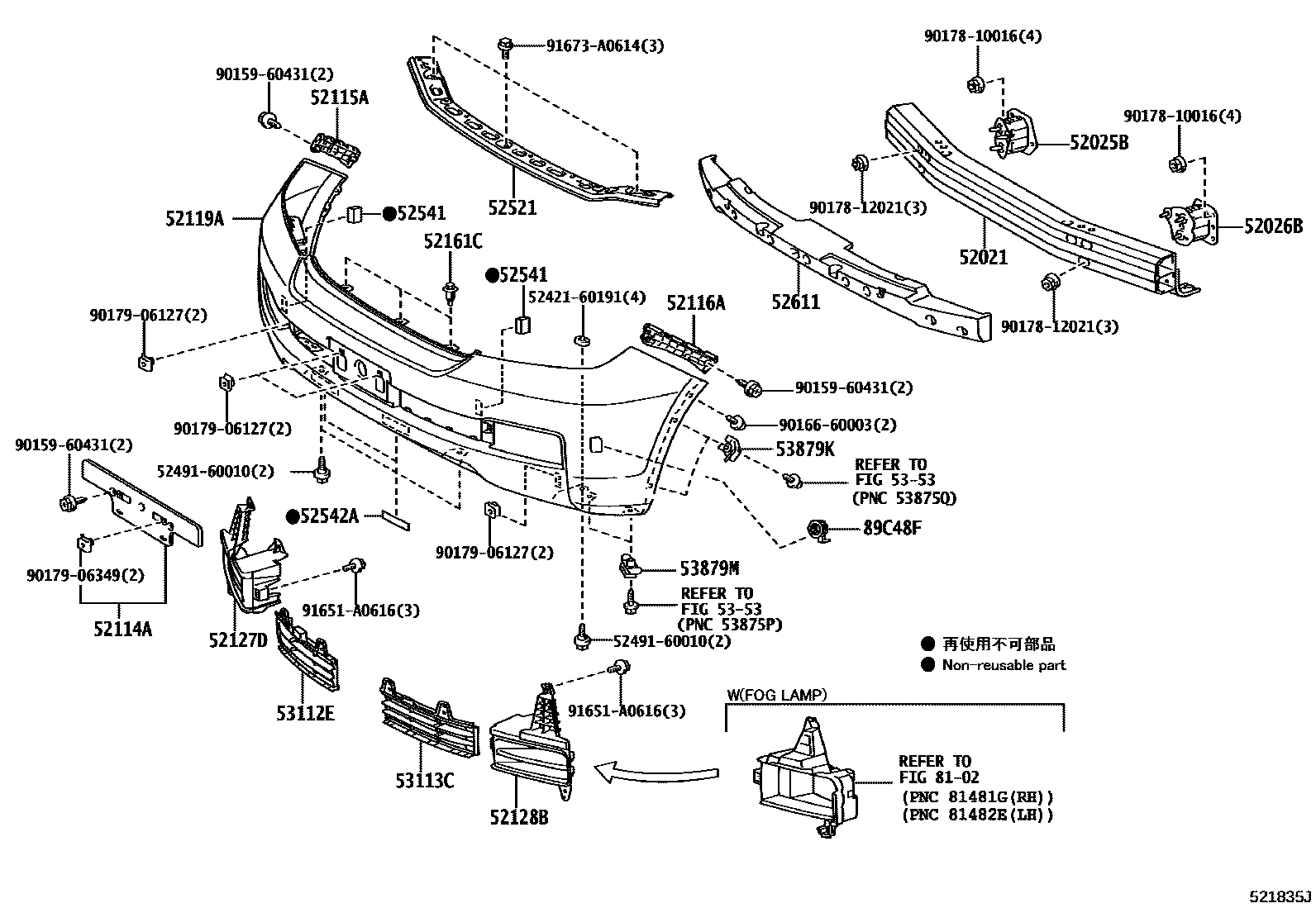

FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
AZERBAIJAN, GEORGIA, ARMENIA SPEC&WITH(AVS)
RUSSIA SPEC&URBAN STYLE/TRD-PACKAGE(20INCH)
KAZAKHSTAN SPEC&URBAN STYLE/TRD-PACKAGE(20INCH)
RUSSIA SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&FRONT BUMPER-COLORED(ACCESSORY)
RUSSIA SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&FRONT BUMPER-COLORED(ACCESSORY)
UKRAINE SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&FRONT BUMPER-COLORED(ACCESSORY)
UKRAINE SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&FRONT BUMPER-COLORED(ACCESSORY)
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING SEAT & 20 INCH)&FRONT BUMPER-COLORED(ACCESSORY)
KAZAKHSTAN SPEC&DOP PACKAGE(QUILTING & 20 INCH & *RSE)&FRONT BUMPER-COLORED(ACCESSORY)
RUSSIA SPEC&WITH(AVS)
UKRAINE SPEC&WITH(AVS)
KAZAKHSTAN SPEC&WITH(AVS)
52119ACOVER, FRONT BUMPER
PAINT REQ.,HEADLAMP CLEANER-WITH
PAINT REQ.
PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WIRING HARNESS ONLY(DEALER INSTALL)
PAINT REQ.
PAINT REQ.,HEADLAMP CLEANER-WITH
PAINT REQ.
PAINT REQ.
PAINT REQ.,RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.
PAINT REQ.
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
RUSSIA SPEC&STEERING COLUMN-TILT & TELESCOPIC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&CLEARANCE & BACK SONAR-WITH
RUSSIA SPEC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&CLEARANCE & BACK SONAR-WITH
RUSSIA SPEC&CLEARANCE & BACK SONAR-WITH
AZERBAIJAN, GEORGIA, ARMENIA SPEC&CLEARANCE & BACK SONAR-WITH
STEERING COLUMN-TILT & TELESCOPIC&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&CLEARANCE & BACK SONAR-WITH
52161CPIECE, FRONT BUMPER
sub52161-0K040
52521RETAINER, FRONT BUMPER, UPPER CENTER
52541PROTECTOR, FRONT BUMPER
52542APROTECTOR, FRONT BUMPER, NO.2
52611ABSORBER, FRONT BUMPER ENERGY
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.
53113CGRILLE, RADIATOR, LOWER LH
NO PAINT REQ.
5353
53879KRETAINER, FRONT FENDER LINER
53879MRETAINER, FRONT FENDER LINER
8102
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),SUPER WHITE 2,040
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,SUPER WHITE 2,040
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),WHITE PEARL CS.,070
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),SILVER ME.,1F7
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,SILVER ME.,1F7
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GRAY ME.,1G3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,GRAY ME.,1G3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,BLACK,202
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BLACK,202
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,DK. RED M.M.,3Q3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),DK. RED M.M.,3Q3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),BEIGE M.M.,4R3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,BEIGE M.M.,4R3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,GOLD M.M.,5A5
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GOLD M.M.,5A5
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GREEN M.M.,6V2
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,GREEN M.M.,6V2
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH),GRAYISH BLUE ME.,8R3
sub89348-33060
EMV & NAVIGATION SYSTEM-WITH(HDD GPS VOICE BLUETOOTH)&BACK MONITOR-GUIDE,GRAYISH BLUE ME.,8R3
sub89348-33060
CLEARANCE & BACK SONAR-WITH
RUSSIA SPEC&CLEARANCE & BACK SONAR-WITHOUT
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(GUIDE & MULTI TERRAIN MONITOR)
CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),SUPER WHITE2,040
sub89348-71010
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),WHITE PEARLCS.,070
sub89348-71010
CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),SILVER ME.,1F7
sub89348-71010
CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),GRAY ME.,1G3
sub89348-71010
CLEARANCE & BACK SONAR-WITH,BLACK,202
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),BLACK,202
sub89348-71010
CLEARANCE & BACK SONAR-WITH,ATTITUDE BLACK MC.,218
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),ATTITUDE BLACK MC.,218
sub89348-71010
CLEARANCE & BACK SONAR-WITH,DK. RED M.M.,3Q3
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),DK. RED M.M.,3Q3
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),BEIGE M.M.,4R3
sub89348-71010
CLEARANCE & BACK SONAR-WITH,BEIGE M.M.,4R3
sub89348-71010
CLEARANCE & BACK SONAR-WITH,GREEN M.M.,6V2
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),GREEN M.M.,6V2
sub89348-71010
CLEARANCE & BACK SONAR-WITH&BACK MONITOR-FRONT,SIDE X 2 & WITH(GUIDE),LT.BLUE M.M.,8S1
sub89348-71010
CLEARANCE & BACK SONAR-WITH,LT.BLUE M.M.,8S1
sub89348-71010
5242160191FILLER, FRONT BUMPER MOULDING, RH
main52421-60191
5249160010BOLT, BUMPER PAD
main52491-60010
9015960431
main90159-60431
9016660003
main90166-60003
9017810016
main90178-10016
9017812021
main90178-12021
9017906127
main90179-06127
9017906349
main90179-06349
91651A0616
main91651-A0616
91673A0614
main91673-A0614
31 parts on this diagram · 3 diagrams in section
