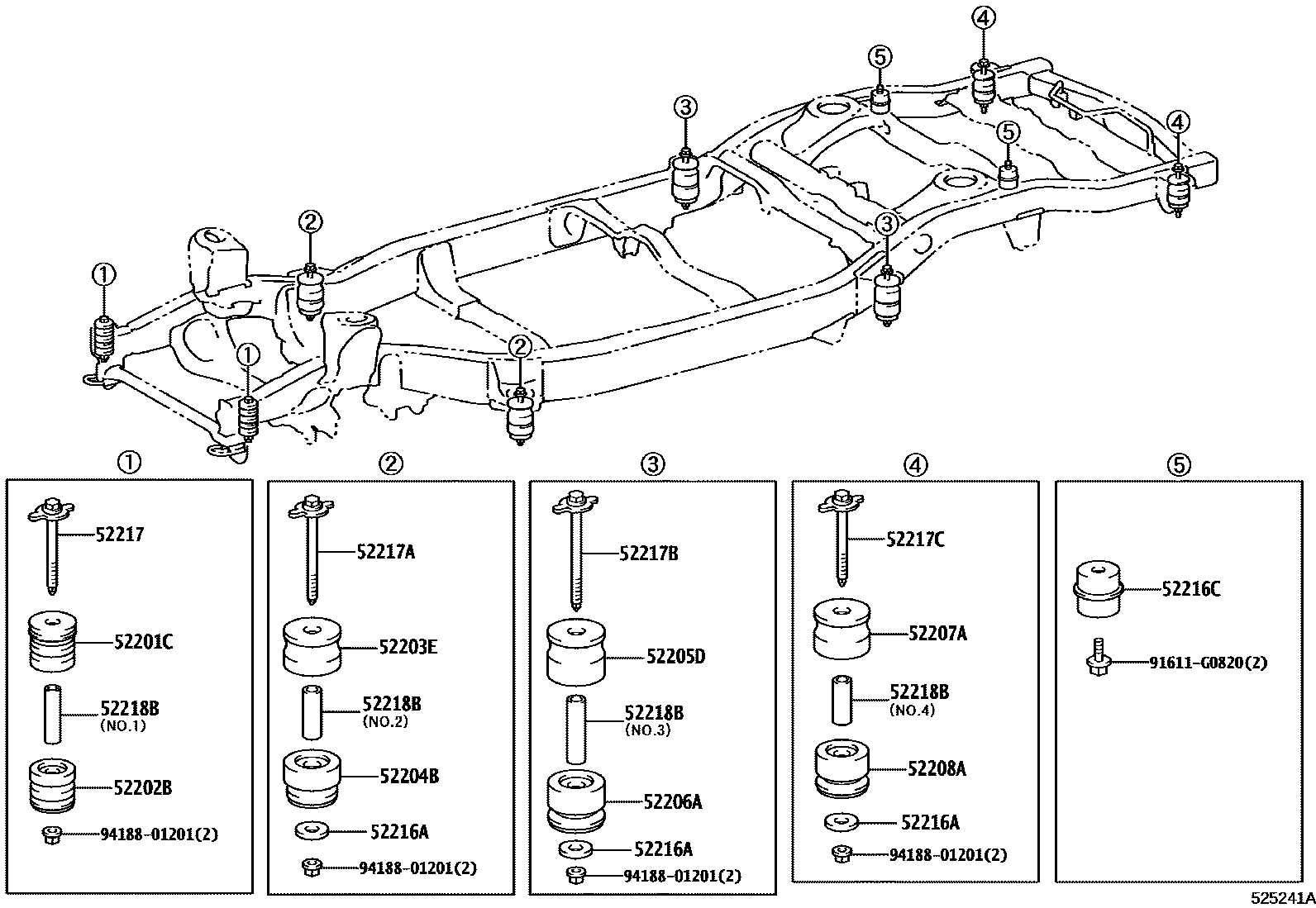

CAB MOUNTING & BODY MOUNTING

52201CCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER

main52201-60060iURJ202,VDJ200200709-201408

sub52201-60110

main52201-60110iURJ202,VDJ200201409-202104

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-60040iURJ202,VDJ200200709-201408

sub52202-60100

main52202-60100iURJ202,VDJ200201409-202104

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-60090iUZJ200,VDJ200200709-202104

52204BCUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER

main52204-60090iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-60030iUZJ200,VDJ200200709-202104

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-60030iUZJ200,VDJ200200709-202104

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-60090iUZJ200,VDJ200200709-202104

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-60050iUZJ200,VDJ200200709-202104

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-60040iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

52216CSTOPPER, CAB MOUNTING CUSHION

main52216-60050iURJ202,VDJ200200709-202104

52217BOLT, BODY MOUNTING

main52217-60060iUZJ200,VDJ200200709-202104

52217ABOLT, BODY MOUNTING

main52217-60070iUZJ200,VDJ200200709-202104

52217BBOLT, BODY MOUNTING

main52217-60080iUZJ200,VDJ200200709-202104

52217CBOLT, BODY MOUNTING

main52217-60070iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

52218BHOLDER, CAB MOUNT CUSHION, NO.1

main52218-34010iUZJ200,VDJ200200709-202104

NO.1:REFER ILLUST.

main52218-34020iURJ202,VDJ200200709-202104

NO.2:REFER ILLUST.

main52218-34030iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

NO.3:REFER ILLUST.

main90440-31002iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

NO.4:REFER ILLUST.

91611G0820

main91611-G0820

9418801201

main94188-01201

17 parts on this diagram · 1 diagram in section
