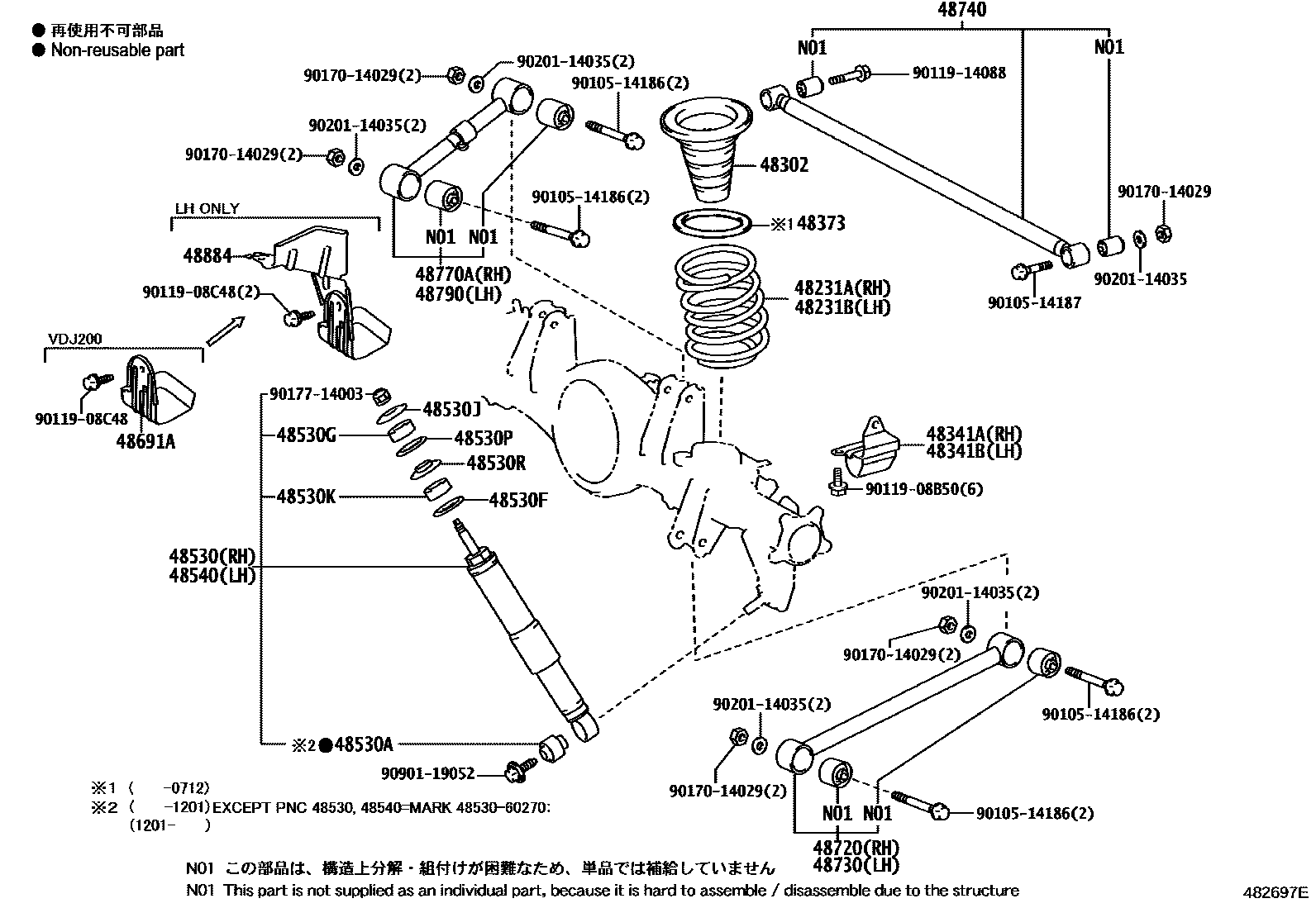

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
REAR NO.2 SEAT-WITHOUT
RUSSIA SPEC
KAZAKHSTAN SPEC
SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK)
RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)
SOUTH AFRICA SPEC&FUEL TANK-WITH(SUB TANK)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD &9SPEAKER
48231BSPRING, COIL, REAR LH
REAR NO.2 SEAT-WITHOUT
RUSSIA SPEC
KAZAKHSTAN SPEC
KAZAKHSTAN SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&REAR NO.2 SEAT-WITHOUT
SOUTH AFRICA SPEC&FUEL TANK-WITH(SUB TANK)&AUDIO(FOR OVERSEAS MARKET)-EMV & DVD &9SPEAKER
RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)
RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
KAZAKHSTAN SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)
KAZAKHSTAN SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
KAZAKHSTAN SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&SPARE WHEELCARRIER-WITHOUT & WITH(REPAIR KIT)
RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WI
RUSSIA SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&REAR NO.2 SEAT-WITHOUT
KAZAKHSTAN SPEC&AIR CLEANER-WITH(PRE CLEANER)&FUEL TANK-WITH(SUB TANK)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEA
SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)&REAR NO.2 SEAT-WITHOUT
RUSSIA SPEC&FUEL TANK-WITH(SUB TANK)
KAZAKHSTAN SPEC&FUEL TANK-WITH(SUB TANK)
48302SPRING SUB-ASSY, HOLLOW
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48373SPACER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60110
MARK 48530-60140,SOUTH AFRICA SPEC&TIRE & DISC WHEEL-285/65R17,8J ALUMINUM
MARK 48530-60140,RUSSIA SPEC
MARK 48530-60140,TURKEY SPEC
MARK 48530-60140,NEW CALEDONIA SPEC
MARK 48530-60140,SOUTH AMERICA SPEC
MARK 48530-60140,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC
MARK 48530-60140
MARK 48530-60140,ESTONIA OR LATVIA OR LITHUANIA SPEC
MARK 48530-60270
MARK 48530-60380
MARK 48530-60450,FOR EGYPT SPEC
MARK 48530-60460,FOR EGYPT SPEC
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530FRETAINER, SHOCK ABSORBER CUSHION(FOR REAR)
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
48530RRETAINER, CUSHION, NO.3(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60110
MARK 48530-60140,ESTONIA OR LATVIA OR LITHUANIA SPEC
MARK 48530-60140,SOUTH AFRICA SPEC&TIRE & DISC WHEEL-285/65R17,8J ALUMINUM
MARK 48530-60140,RUSSIA SPEC
MARK 48530-60140,TURKEY SPEC
MARK 48530-60140,NEW CALEDONIA SPEC
MARK 48530-60140,SOUTH AMERICA SPEC
MARK 48530-60140,AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC
MARK 48530-60140
MARK 48530-60270
MARK 48530-60380
MARK 48530-60450,FOR EGYPT SPEC
MARK 48530-60460,FOR EGYPT SPEC
48691AINSULATOR, UPPER ARM BUSH, HEAT
SUSPENSION-FRONT=IRS, REAR=4LINK
ACTIVE HEIGHT CONTROL
SUSPENSION-ACTIVE HEIGHT CONTROL
SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
48884INSULATOR, REAR STABILIZER CONTROL TUBE
9010514186
main90105-14186
9010514187
main90105-14187
9011908B50
main90119-08B50
9011908C48
main90119-08C48
9011914088
main90119-14088
9017014029
main90170-14029
9017714003
main90177-14003
9020114035
main90201-14035
9090119052
main90901-19052
31 parts on this diagram · 5 diagrams in section
