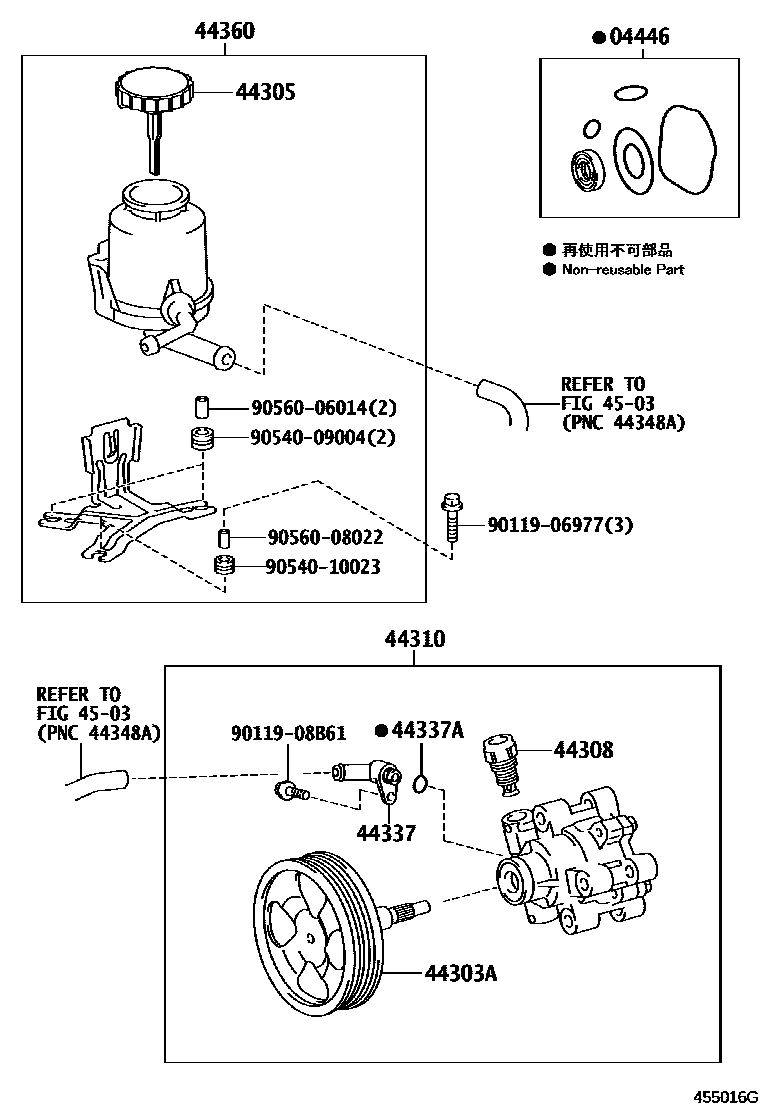

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1W(AVS) 0004 1W(AVS)

04446GASKET KIT, POWER STEERING PUMP

main04446-60260iURJ202..08S..VX200709-202104

main04446-60270iVDJ200200709-202103

main04446-60271iVDJ200..LHD..08S201508-202104

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-60010iUZJ200200709-201201

main44303-60030iURJ202201201-202104

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37020iUZJ200,VDJ200200709-200802

sub44305-37030

main44305-37030iUZJ200,VDJ200200803-201205

sub44305-37031

main44305-37031iURJ202,VDJ200201206-202104

44308UNION SUB-ASSY, PRESSURE PORT

main44308-60170iUZJ200200709-201201

main44308-60180iVDJ200200709-202103

main44308-60220iURJ202..VXR;URJ202..05S201201-202104

44310PUMP ASSY, VANE

main44310-60480iUZJ200200709-201201

main44310-60490iURJ202201201-201908

main44310-60500iVDJ200..RHD200709-202103

main44310-60520iURJ202..08S..VX201908-202104

main44310-60620iVDJ200..LHD201201-202002

sub44310-60621

main44310-60621iVDJ200..RHD202003-202103

INDIA SPEC&SUSPENSION-ACTIVE HEIGHT CONTROL

main44310-60621iVDJ200..05S202003-202104

44337UNION, POWER STEERING SUCTION PORT

main44337-60210iUZJ200200709-201201

main44337-60220iURJ202..VXR;URJ202..05S201201-202104

main44337-60230iVDJ200200709-202104

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-15025iURJ202,VDJ200200709-202104

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-60290iURJ202200709-201205

sub44360-60291

main44360-60291iURJ202..08S..VX201206-202104

main44360-60300iVDJ200200709-201205

sub44360-60301

main44360-60301iVDJ200..RHD..VX;VDJ200..LHD..08S201206-202104

4503

9011906977

main90119-06977

9011908B61

main90119-08B61

9054009004

main90540-09004

9054010023

main90540-10023

9056006014

main90560-06014

9056008022

main90560-08022

15 parts on this diagram · 4 diagrams in section
