STEERING COLUMN & SHAFT

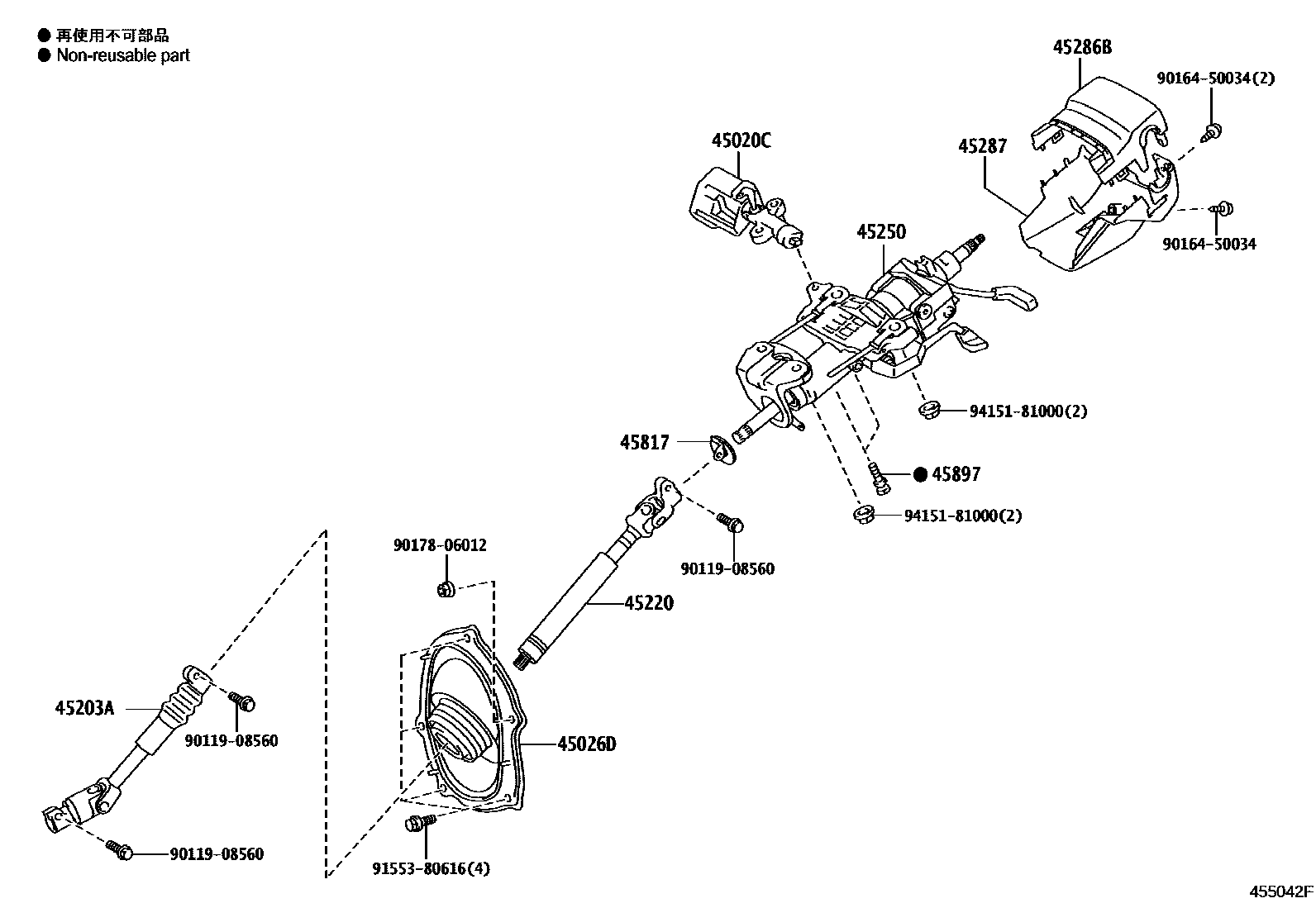

Parts diagram
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
main45020-30A60i200709-201508
main45020-60830i201508-202104
45026DCOVER SUB-ASSY, STEERING COLUMN HOLE
main45025-60160i201201-201508
CYPRUS SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45025-60160i201201-201508
ENGLAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45025-60160i201201-201508
IRELAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45025-60160i200709-201201
main45025-60170i200709-202104
main45025-60180i201201-202103
45203ASHAFT, STEERING INTERMEDIATE, NO.2
main45203-60130i200709-201109
main45203-60131i201109-202103
main45203-60140i200709-201109
main45203-60141i201109-202104
45220SHAFT ASSY, STEERING INTERMEDIATE
main45220-60220i200709-201109
main45220-60221i201201-201508
IRELAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK
main45220-60221i201201-201508
ENGLAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK
main45220-60221i201201-201508
CYPRUS SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK
main45220-60221i201109-201201
main45220-60230i200709-201109
main45220-60231i201109-202104
main45240-60090i201201-201508
main45240-60110i201508-202103
45250COLUMN ASSY, STEERING
main45250-60A10i200709-201201
main45250-60A10i201201-201508
IRELAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45250-60A10i201201-201508
ENGLAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45250-60A10i201201-201508
CYPRUS SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45250-60C80i201508-202104
FRONT SEAT-MANUAL(SEPARATE SEAT)
main45810-60080i201008-201107
sub45810-60081
main45810-60081i201107-201201
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)
sub45810-60082
main45810-60120i201201-201308
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)
sub45810-60121
main45810-60121i201309-201508
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)
main45810-60130i201201-201508
STEERING-WITH(POWER STEERING & VGRS & VFC)&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)
main45810-60130i201201-201508
ENGLAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45810-60130i201201-201508
IRELAND SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45810-60130i201201-201508
CYPRUS SPEC&STEERING COLUMN-W(TILT & TELESCOPIC)&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT)
main45810-60130i201201-201508
STEERING-WITH(POWER STEERING & VGRS)&FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER)
main45810-60130i201201-201508
SUSPENSION-ACTIVE HEIGHT CONTROL
main45810-60180i201508-202104
FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)
main45810-60190i201508-202103
STEERING-WITH(POWER STEERING & VGRS & VFC & AVS)&SUSPENSION-ACTIVE HEIGHT CONTROL
main45810-60190i201508-202103
STEERING-WITH(POWER STEERING & VGRS)
main45810-60190i201508-202103
STEERING-WITH(POWER STEERING & VGRS)&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY)
main45810-60190i201508-202103
STEERING-WITH(POWER STEERING & VGRS & VFC)
main45810-60190i201508-202103
STEERING-WITH(POWER STEERING & VGRS & VFC)&FRONT SEAT-POWER(*DRP) & W(DRIVER SIDESEAT MEMORY)
45286BCOVER, STEERING COLUMN, UPR
main45286-60480-C0i201201-201508
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM2#
sub45286-60480
main45286-60480-C0i201008-201201
BLACK,TRIM1#,2#
sub45286-60480
main45286-60480-C0i201008-201201
BLACK,TRIM1#
sub45286-60480
main45286-60480-C0i201201-201508
BLACK,TRIM2#
sub45286-60480
main45286-60480-E0i201008-201201
DK. BROWN,TRIM4#
sub45286-60480
main45286-60480-E1i201201-201508
ORCHID BROWN,TRIM0#
sub45286-60480
main45286-60480-E1i201201-201508
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),ORCHID BROWN,TRIM0#
sub45286-60480
main45286-60490-C0i201201-201508
CYPRUS SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#
sub45286-60490
main45286-60490-C0i200709-201201
BLACK,TRIM1#
sub45286-60490
main45286-60490-C0i201201-201508
BLACK,TRIM1#,2#
sub45286-60490
main45286-60490-C0i201201-201508
ENGLAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#
sub45286-60490
main45286-60490-C0i201201-201508
IRELAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#
sub45286-60490
main45286-60490-E0i200709-201201
DK. BROWN,TRIM4#
sub45286-60490
main45286-60490-E1i201201-201508
ORCHID BROWN,TRIM0#
sub45286-60490
main45286-60490-E1i201201-201508
ENGLAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),ORCHID BROWN,TRIM0#
sub45286-60490
main45286-60490-E1i201201-201508
IRELAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),ORCHID BROWN,TRIM0#
sub45286-60490
main45286-60490-E1i201201-201508
CYPRUS SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),ORCHID BROWN,TRIM0#
sub45286-60490
main45286-60530-C0i201508-202104
BLACK,TRIM1#,2#,42,46
main45286-60530-C0i201508-202104
FRONT SEAT-MANUAL(SEPARATE SEAT),BLACK,TRIM1#,2#,42,46
main45286-60530-E0i201508-202104
ORCHID BROWN,TRIM0#,47
main45286-60530-E0i201508-202104
FRONT SEAT-MANUAL(SEPARATE SEAT),ORCHID BROWN,TRIM0#,47
main45286-60540-C0i201508-202104
BLACK,TRIM2#,42,46
main45286-60540-C0i201508-201707
BLACK,TRIM1#,2#,4#
main45286-60540-C0i201508-202103
BLACK,TRIM1#,2#,42,46
main45286-60540-C0i201508-202104
FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),BLACK,TRIM2#,42,46
main45286-60540-E0i201508-202104
ORCHID BROWN,TRIM0#,47
main45286-60540-E0i201508-202104
FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),ORCHID BROWN,TRIM0#,47
main45286-60540-E0i201508-201707
ORCHID BROWN,TRIM0#
45287COVER, STEERING COLUMN, LWR
main45287-60501-C0i201008-201201
BLACK,TRIM1#
sub45287-60501
main45287-60501-C0i201008-201201
BLACK,TRIM1#,2#
sub45287-60501
main45287-60501-C0i201201-201508
BLACK,TRIM2#
sub45287-60501
main45287-60501-C0i201201-201508
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),BLACK,TRIM2#
sub45287-60501
main45287-60501-E0i201008-201201
DK. BROWN,TRIM4#
sub45287-60501
main45287-60501-E1i201201-201508
ORCHID BROWN,TRIM0#
sub45287-60501
main45287-60501-E1i201201-201508
FRONT SEAT-POWER(DRIVER,PASSENGER) & MEMORY(DRIVER),ORCHID BROWN,TRIM0#
sub45287-60501
main45287-60510-C0i200709-201201
BLACK,TRIM1#
sub45287-60510
main45287-60510-C0i201201-201508
BLACK,TRIM1#,2#
sub45287-60510
main45287-60510-C0i201201-201508
ENGLAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#
sub45287-60510
main45287-60510-C0i201201-201508
IRELAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#
sub45287-60510
main45287-60510-C0i201201-201508
CYPRUS SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),BLACK,TRIM1#
sub45287-60510
main45287-60510-E0i200709-201201
DK. BROWN,TRIM4#
sub45287-60510
main45287-60510-E1i201201-201508
ORCHID BROWN,TRIM0#
sub45287-60510
main45287-60510-E1i201201-201508
ENGLAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),ORCHID BROWN,TRIM0#
sub45287-60510
main45287-60510-E1i201201-201508
IRELAND SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),ORCHID BROWN,TRIM0#
sub45287-60510
main45287-60510-E1i201201-201508
CYPRUS SPEC&SUSPENSION-FRONT=IRS, REAR=4LINK&SPARE WHEEL CARRIER-WITHOUT & WITH(REPAIR KIT),ORCHID BROWN,TRIM0#
sub45287-60510
main45287-60580-C0i201508-202104
BLACK,TRIM1#,2#,42,46
main45287-60580-C0i201508-202104
FRONT SEAT-MANUAL(SEPARATE SEAT),BLACK,TRIM1#,2#,42,46
main45287-60580-E0i201508-202104
ORCHID BROWN,TRIM0#,47
main45287-60580-E0i201508-202104
FRONT SEAT-MANUAL(SEPARATE SEAT),ORCHID BROWN,TRIM0#,47
main45287-60590-C0i201508-202104
FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),BLACK,TRIM2#,42,46
main45287-60590-C0i201508-201707
BLACK,TRIM1#,2#,4#
main45287-60590-C0i201508-202103
BLACK,TRIM1#,2#,42,46
main45287-60590-C0i201508-202104
BLACK,TRIM2#,42,46
main45287-60590-E0i201508-202104
FRONT SEAT-POWER(*DRP) & W(DRIVER SIDE SEAT MEMORY),ORCHID BROWN,TRIM0#,47
main45287-60590-E0i201508-201707
ORCHID BROWN,TRIM0#
main45287-60590-E0i201508-202104
ORCHID BROWN,TRIM0#,47
45817STOPPER, STEERING SHAFT THRUST
main45817-60020i200709-202104
45897BOLT, STEERING LOCK SET
main45897-12020i200709-202104
9011908560
main90119-08560
9016450034
main90164-50034
9017806012
main90178-06012
9155380616
main91553-80616
9415181000
main94151-81000

14 parts on this diagram · 2 diagrams in section
