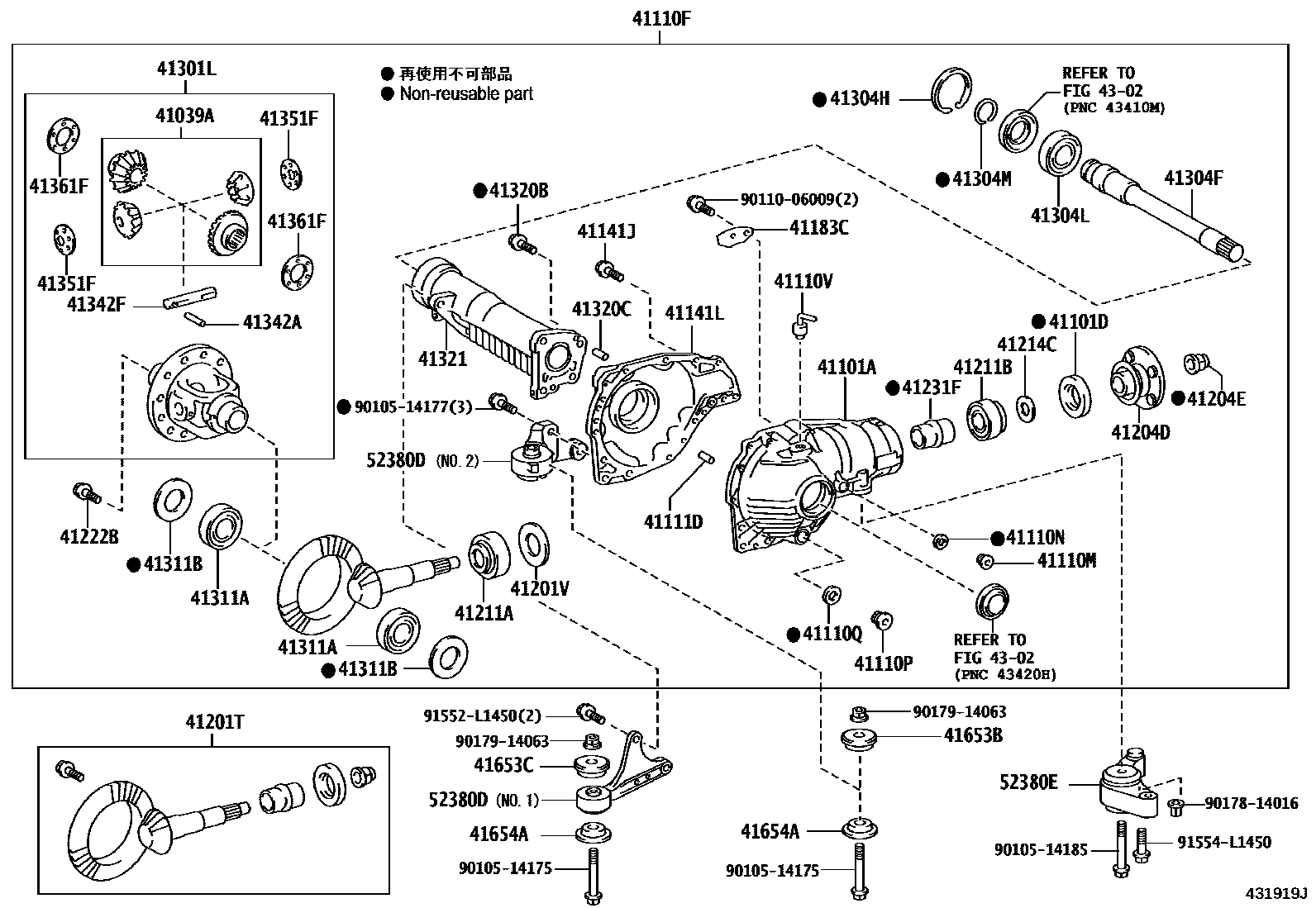

FRONT AXLE HOUSING & DIFFERENTIAL
41039AGEAR KIT, DIFFERENTIAL
41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT
41101DSEAL, OIL (FOR FRONT DIFFERENTIAL CARRIER)
41110FCARRIER ASSY, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
*FGR=43:10=4.300
41110NGASKET, FRONT DIFFERENTIAL FILLER PLUG
41110PPLUG, FRONT DIFFERENTIAL DRAIN
41110QGASKET, FRONT DIFFERENTIAL DRAIN PLUG
sub90430-24017
41110VUNION (FOR FRONT DIFFERENTIAL)
41111DPIN, STRAIGHT (FOR FRONT DIFFERENTIAL CARRIER)
41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)
*10-1.25PX35-26
41141LRETAINER, FRONT DIFFERENTIAL CROSS SHAFT BEARING
41183CDEFLECTOR, FRONT DIFFERENTIAL BREATHER PLUG OIL
41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT
*FGR=43:11=3.909
*FGR=41:10=4.100
*FGR=43:10=4.300
*FGR=43:11=3.909
*FGR=43:10=4.300
41201VSHIM (FOR FRONT DIFF DRIVE PINION SPACER REAR ADJUST)
T=1.825
T=1.850
T=1.875
T=1.900
T=1.925
T=1.950
T=1.975
T=2.000
T=2.025
T=2.050
T=2.075
T=2.100
T=2.125
T=2.150
T=2.175
T=2.200
T=2.225
T=2.250
T=2.275
41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT
41204ENUT (FOR FRONT DRIVE PINION COMPANION FLANGE FRONT)
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41304FSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH
41304HRING, HOLE SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT)
41304LBEARING (FOR FRONT DIFFERENTIAL SIDE GEAR SHAFT RH)
41304MRING, SHAFT SNAP (FOR DIFFERENTIAL SIDE GEAR SHAFT RH)
41311ABEARING (FOR FRONT DIFFERENTIAL CASE)
41311BWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE)
T=1.50
T=1.52
T=1.54
T=1.56
T=1.58
T=1.60
T=1.62
T=1.64
T=1.66
T=1.68
T=1.70
T=1.72
T=1.74
T=1.76
T=1.78
T=1.80
T=1.82
T=1.84
T=1.86
T=1.88
T=1.90
T=1.92
T=1.94
T=1.96
T=1.98
T=2.00
T=2.02
T=2.04
T=2.06
T=2.08
T=2.10
T=2.12
T=2.14
T=2.16
T=2.18
T=2.20
T=2.22
T=2.24
T=2.26
T=2.28
T=2.30
T=2.32
T=2.34
41320BBOLT (FOR FRONT DIFFERENTIAL TUBE)
41320CPIN, STRAIGHT (FOR FRONT DIFFERENTIAL TUBE)
41321TUBE, DIFFERENTIAL EXTENSION FLANGE
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.45
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=1.80
T=1.85
41653BSTOPPER, DIFFERENTIAL MOUNT, UPPER
41653CSTOPPER, FRONT DIFFERENTIAL MOUNT, UPPER
41654ASTOPPER, DIFFERENTIAL MOUNT, LOWER
4302
52380DSUPPORT ASSY, FRONT DIFFERENTIAL
NO.1
NO.2
52380ESUPPORT ASSY, DIFFERENTIAL
9010514175
main90105-14175
9010514177
main90105-14177
9010514185
main90105-14185
9011006009
main90110-06009
9017814016
main90178-14016
9017914063
main90179-14063
91552L1450
main91552-L1450
91554L1450
main91554-L1450
50 parts on this diagram · 2 diagrams in section
