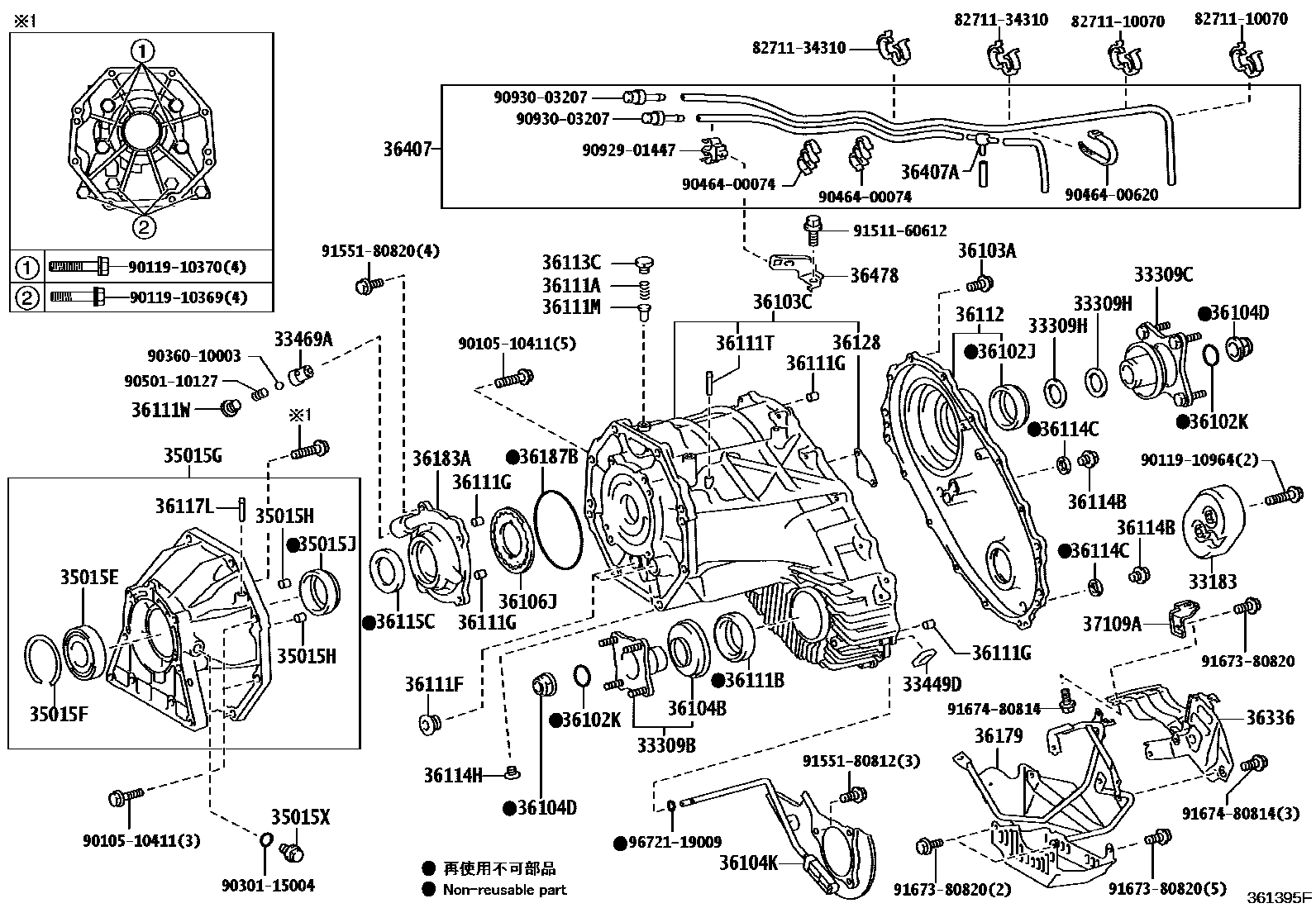

TRANSFER CASE & EXTENSION HOUSING

0001 1 0002 1 0003 1

33183DAMPER, TRANSFER DYNAMIC

main33183-60060iUZJ200,VDJ200200709-202104

33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-34020iUZJ200,VDJ200200709-201201

main33309-34020iURJ202,VDJ200201201-201502

PNC 36111B=TYPE A

main33309-34030iURJ202,VDJ200201502-201508

PNC 36111B=TYPE B

sub33309-34031

main33309-34030iURJ202,VDJ200201508-201811

sub33309-34031

main33309-34031iURJ202,VDJ200201811-202103

sub33309-60170

sub90311-50066

main33309-60170iVDJ200..05S;URJ202..08S..VX202103-202104

33309CFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION

main33309-60110iUZJ200,VDJ200200709-202104

33309HWASHER, TRANSFER OUTPUT SHAFT

main36275-34010iUZJ200,VDJ200200709-202104

T=0.8

33449DMAGNET (FOR TRANSFER CASE)

main33449-60010iUZJ200,VDJ200200709-202104

33469ASEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING)

main33469-60020iUZJ200,VDJ200200709-202104

35015EBEARING, RADIAL BALL(FOR TRANSFER CASE ADAPTER)

main90363-35067iUZJ200200709-201201

main90363-40084iVDJ200200709-202104

35015FRING, HOLE SNAP(FOR TRANSFER ADAPTER)

main90521-80004iUZJ200,VDJ200200709-202104

35015GADAPTER, TRANSFER, REAR

main35015-60200iUZJ200200709-201201

main35015-60210iVDJ200200709-202104

35015HPIN, RING(FOR TRANSFER CASE)

main90250-11003iUZJ200200709-201201

35015JSEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)

main90311-51008iUZJ200,VDJ200200709-202104

sub90311-51010

35015XPLUG, REFILL(FOR TRANSMISSION CASE ADAPTER)

main90341-18059iUZJ200200709-201201

36102JSEAL, TYPE T OIL (FOR TRANSFER COVER)

main90311-50040iUZJ200,VDJ200200709-202102

sub90311-50065

main90311-50065iVDJ200..05S;URJ202..08S..VX202103-202104

36102KRING, O

main90301-31003iUZJ200,VDJ200200709-202104

36103ABOLT (FOR TRANSFER CASE)

main91551-00845iUZJ200,VDJ200200709-202104

*8-1.25PX45-22

36103CCASE, TRANSFER, FRONT

main36103-60360iUZJ200,VDJ200200709-201905

sub36103-60H10

sub36103-60H20

main36103-60361iVDJ200..08S;URJ202..VXR;URJ202..05S201905-202104

36104BDEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT)

main33325-34020iUZJ200,VDJ200200709-201201

main33325-34020iURJ202,VDJ200201201-201502

PNC 36111B=TYPE A

main33325-34030iURJ202,VDJ200201502-201508

PNC 36111B=TYPE B

sub33325-34031

main33325-34030iURJ202,VDJ200201508-201811

sub33325-34031

main33325-34031iURJ202,VDJ200201811-202103

36104DNUT (FOR TRANSFER OUTPUT SHAFT)

main90179-24011iUZJ200,VDJ200200709-202104

36104KSEPARATOR SUB-ASSY, TRANSFER OIL

main36104-34010iUZJ200,VDJ200200709-202104

36106JROTOR, TRANSFER OIL PUMP

main36106-34010iUZJ200,VDJ200200709-202104

36111ASPRING, COMPRESSION (FOR TRANSFER CASE)

main90501-20091iUZJ200,VDJ200200709-202104

36111BSEAL, OIL (FOR TRANSFER CASE)

main90311-50039iUZJ200,VDJ200200709-201201

main90311-50039iURJ202,VDJ200201201-201502

TYPE A:REFER ILLUST.

main90311-50055iURJ202,VDJ200201502-201508

TYPE B:REFER ILLUST.

main90311-50055iURJ202,VDJ200201508-202103

main90311-50066iVDJ200..05S;URJ202..08S..VX202103-202104

36111FPLUG (FOR TRANSFER CASE)

main90341-24006iURJ202,VDJ200200709-202104

36111GPIN, STRAIGHT (FOR TRANSFER CASE)

main90250-10214iUZJ200,VDJ200200709-202104

L=14,OD=10

36111MPIN, SLOTTED SPRING (FOR TRANSFER CASE)

main90241-07003iUZJ200,VDJ200200709-202104

36111TTUBE (FOR TRANSFER CASE)

main90441-05001iUZJ200,VDJ200200709-202104

sub90406-T0007

36111WPLUG, TIGHT NO.2(FOR TRANSFER CASE)

main90341-18039iUZJ200,VDJ200200709-202104

36112CASE, TRANSFER, REAR

main36104-60051iUZJ200,VDJ200200709-201009

sub36103-60H20

main36104-60052iUZJ200,VDJ200201009-201905

sub36103-60H10

main36104-60053iVDJ200..08S;URJ202..VXR;URJ202..05S201905-202104

36113CPLUG (FOR TRANSFER CASE)

main90341-14012iUZJ200,VDJ200200709-202104

36114BPLUG, NO.1 (FOR TRANSFER CASE)

main90341-18006iUZJ200,VDJ200200709-202104

36114CGASKET, NO.1 (FOR TRANSFER CASE)

main90430-18008iUZJ200,VDJ200200709-202104

36114HPLUG, NO.2 (FOR TRANSFER CASE)

main90341-14008iUZJ200,VDJ200200709-202104

36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)

main90311-51009iURJ202,VDJ200200709-202104

36117LTUBE(FOR TRANSFER ADAPTER)

main90441-05001iUZJ200,VDJ200200709-202104

sub90406-T0007

36128DEFLECTOR, BREATHER OIL

main36128-34010iUZJ200,VDJ200200709-201508

main36128-34010iURJ202,VDJ200201508-202103

T=0.40

main36128-60080iVDJ200..05S;URJ202..08S..VX202103-202104

T=1.4

36179PROTECTOR, TRANSFER CASE LOWER

main36179-60010iUZJ200,VDJ200200709-202104

36183APLATE, TRANSFER OIL PUMP

main36183-34011iUZJ200,VDJ200200709-202104

36187BRING, O (FOR TRANSFER OIL STRAINER)

main96721-31130iUZJ200,VDJ200200709-202104

36336INSULATOR, TRANSFER HEAT

main36336-60030iUZJ200,VDJ200200709-202104

36407HOSE SUB-ASSY, TRANSFER BREATHER

main36407-60180iUZJ200200709-201201

main36407-60200iVDJ200200709-201508

main36407-60290iURJ202..VXR;URJ202..05S201201-202104

main36407-60370iVDJ200..05S;VDJ200..RHD..VXR201508-202104

36407AWAY, 3(FOR TRANSFER BREATHER HOSE)

main90413-04001iUZJ200,VDJ200200709-202104

36478BRACKET, TRANSFER BREATHER

main36478-60040iUZJ200200709-201201

37109ABRACKET SUB-ASSY, PROPELLER SHAFT HEAT INSULATOR

main37109-60080iUZJ200,VDJ200200709-202104

8271110070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-10070

8271134310WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34310

9010510411

main90105-10411

9011910369

main90119-10369

9011910370

main90119-10370

9011910964

main90119-10964

9030115004

main90301-15004

9036010003

main90360-10003

9046400074

main90464-00074

9046400620

main90464-00620

9050110127

main90501-10127

9092901447

main90929-01447

9093003207

main90930-03207

9151160612

main91511-60612

9155180812

main91551-80812

9155180820

main91551-80820

9167380820

main91673-80820

9167480814

main91674-80814

9672119009

main96721-19009

62 parts on this diagram · 3 diagrams in section
