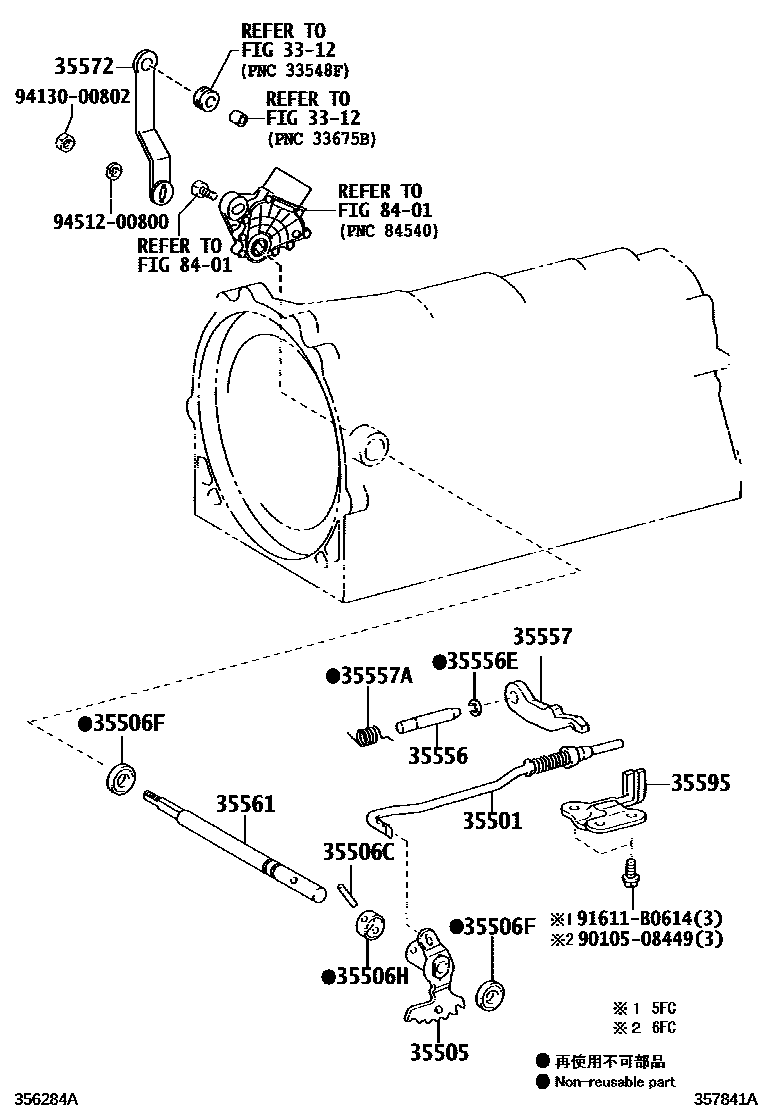

THROTTLE LINK & VALVE LEVER (ATM)

3312

35501ROD SUB-ASSY, PARKING LOCK

main35501-34020iURJ202,VDJ200200709-202104

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-60060iUZJ200,VDJ200200709-202104

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iUZJ200,VDJ200200709-202104

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iUZJ200,VDJ200200709-202104

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iUZJ200,VDJ200200709-202104

35556SHAFT, PARKING LOCK PAWL

main35556-60020iUZJ200,VDJ200200709-202104

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

35557PAWL, PARKING LOCK

main35557-34010iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

main35557-60040iUZJ200200709-201201

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90949-03123iUZJ200,VDJ200200709-202104

35561SHAFT, MANUAL VALVE LEVER

main35561-34010iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR200709-202104

main35561-50020iUZJ200200709-201201

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-60100iURJ202..08S..VX201201-202104

main35572-60110iVDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

main35572-60120iUZJ200200709-201201

35595BRACKET, PARKING LOCK PAWL

main35595-34010iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S200709-202104

main35595-60030iUZJ200200709-201201

8401

9010508449

main90105-08449

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 1 diagram in section
