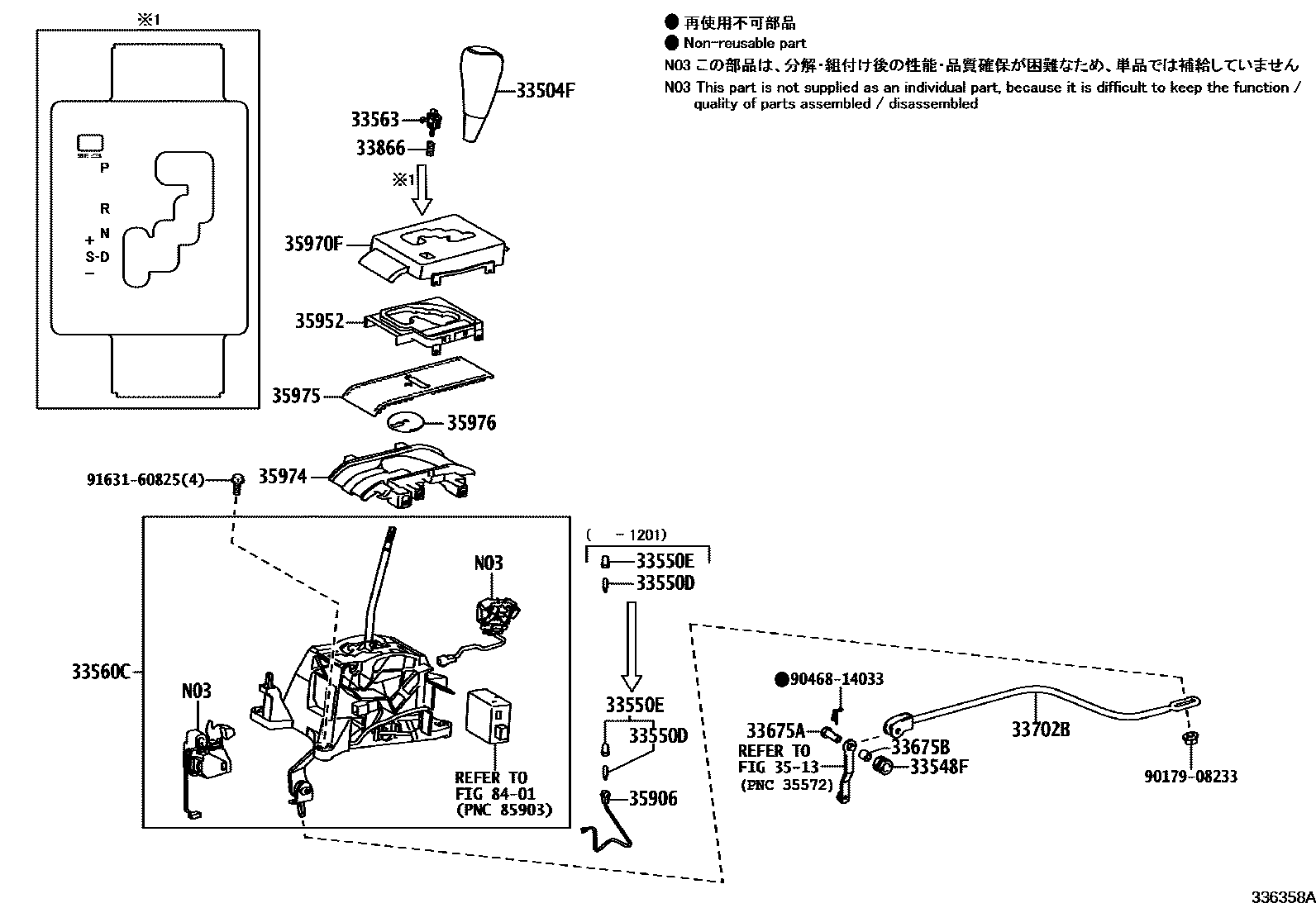

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-60230-C0iVDJ200..08S;UZJ200..LHD..08S200709-201201

BLACK,TRIM1#

sub33504-60231

main33504-60230-C0iVDJ200..08S;UZJ200..LHD..08S200709-201201

BLACK,TRIM1#,2#

sub33504-60231

main33504-60230-C1iVDJ200201201-201303

BLACK & MD.SILVER,TRIM1#,2#

sub33504-60231

main33504-60230-C1iVDJ200201201-201303

BLACK & MD.SILVER,TRIM2#

sub33504-60231

main33504-60230-E0iUZJ200,VDJ200200709-201201

DK. BROWN,TRIM4#

sub33504-60231

main33504-60230-E2iURJ202,VDJ200201201-201303

ORCHID BROWN & MD.SILVER,TRIM0#

sub33504-60231

main33504-60231-C1iVDJ200201304-201508

BLACK & MD.SILVER,TRIM2#

sub33504-60231

main33504-60231-C1iURJ202201304-201508

BLACK & MD.SILVER,TRIM1#,2#

sub33504-60231

main33504-60231-E2iURJ202,VDJ200201304-201508

ORCHID BROWN & MD. SILVER,TRIM0#

sub33504-60231

main33504-60450-C0iURJ202..08S..VX201508-202104

BLACK,TRIM1#,2#,42,46

main33504-60450-C0iVDJ200..RHD..VXR201508-201707

BLACK,TRIM1#,2#,4#

main33504-60450-C0iURJ202..08S..VX201508-202104

BLACK,TRIM2#,42,46

main33504-60450-E0iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

ORCHID BROWN,TRIM0#,47

main33504-60450-E0iVDJ200..RHD..VXR201508-201707

ORCHID BROWN,TRIM0#

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-60060iUZJ200,VDJ200200709-202104

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-60B20iVDJ200..LHD201508-201707

sub33550-60B40

main33550-60B30iVDJ200..RHD201508-201707

sub33550-60B31

main33550-60B31iVDJ200..RHD201708-202103

main33550-60B40iVDJ200..LHD..08S201708-202104

main33550-60B90iURJ202201508-201707

sub33550-60B91

main33550-60B91iURJ202..VXR;URJ202..05S201708-202104

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iUZJ200,VDJ200200709-201508

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iUZJ200,VDJ200200709-201508

33560CLEVER ASSY, SHIFT, LOWER

main33560-60090iURJ202..LHD200709-201211

sub33560-60091

main33560-60091iURJ202..LHD201212-201508

main33560-60100iVDJ200..LHD200709-201211

sub33560-60101

main33560-60101iVDJ200..LHD201212-201508

main33560-60110iURJ202..RHD200709-201211

sub33560-60111

main33560-60111iURJ202..RHD201212-201508

main33560-60120iVDJ200..RHD200709-201211

sub33560-60121

main33560-60121iVDJ200..RHD201212-201508

33563BUTTON, SHIFT LOCK RELEASE

main33563-60120iUZJ200,VDJ200..LHD200709-201508

main33563-60130iUZJ200,VDJ200..RHD200709-201508

main33563-60210iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main90240-08054iUZJ200,VDJ200200709-202104

33675BBUSH (FOR TRANSMISSION CONTROL ROD)

main90389-08005iUZJ200,VDJ200200709-202104

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-60080iUZJ200200709-201201

main33702-60110iURJ202201201-202104

main33702-60120iVDJ200..05S;VDJ200..RHD..VXR200709-202104

33866SPRING, SHIFT LOCK RELEASE

main33866-33010iVDJ200..05S;URJ202..08S..VX;VDJ200..RHD..VXR201508-202104

main33866-42020iUZJ200,VDJ200200709-201508

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-21020iUZJ200,VDJ200200709-201508

main35906-30220iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

sub35906-39005

35952LENS, POSITION INDICATOR

main35952-60010iURJ202,VDJ200..LHD200709-201508

main35952-60020iURJ202,VDJ200..RHD200709-201508

main35952-60050iVDJ200..05S;URJ202..08S..VX201508-202104

main35952-60060iVDJ200..RHD201508-202103

35970FHOUSING ASSY, POSITION INDICATOR

main35970-60060iUZJ200,VDJ200..LHD200709-201508

main35970-60070iUZJ200,VDJ200..RHD200709-201508

main35970-60260iURJ202..VXR;URJ202..05S;VDJ200..LHD..08S201508-202104

main35970-60280iVDJ200..RHD201508-202103

35974HOUSING, POSITION INDICATOR, LOWER

main35974-60120iUZJ200,VDJ200..LHD200709-201508

main35974-60130iURJ202,VDJ200..RHD200709-201508

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-60110iUZJ200,VDJ200200709-201508

main35975-60130iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-60040iUZJ200,VDJ200200709-201508

main35976-60060iURJ202..VXR;URJ202..05S;VDJ200..RHD..VX;VDJ200..LHD..08S201508-202104

8401

9017908233

main90179-08233

9046814033

main90468-14033

9163160825

main91631-60825

22 parts on this diagram · 7 diagrams in section
