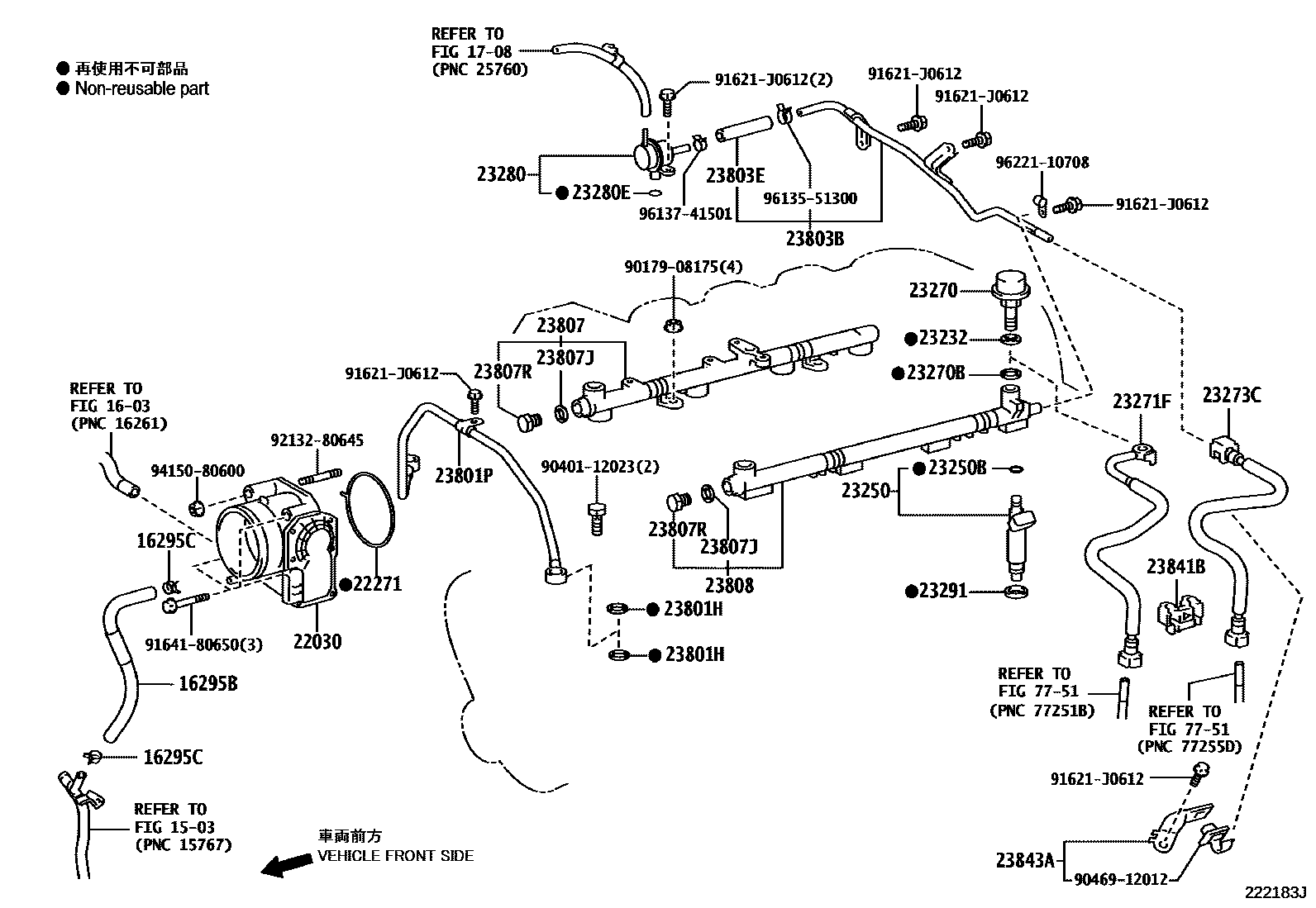

FUEL INJECTION SYSTEM
1503
1603
16295BHOSE, WATER BY-PASS, NO.7
16295CCLIP(FOR WATER BY-PASS HOSE NO.7)
1708
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23232GASKET(FOR FUEL PUMP HOSE)
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23270BGASKET(FOR PULSATION DAMPER HOSE)
23271FHOSE, FUEL
23273CHOSE, FUEL, NO.2
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23803EHOSE, FUEL
23807JGASKET, PIPE FUEL DELIVARY INLET
23807RPLUG, FUEL DELIVARY PIPE
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
7751
9017908175
main90179-08175
9040112023
main90401-12023
9046912012
main90469-12012
91621J0612
main91621-J0612
9164180650
main91641-80650
9213280645
main92132-80645
9415080600
main94150-80600
9613551300
main96135-51300
9613741501
main96137-41501
9622110708
main96221-10708
38 parts on this diagram · 2 diagrams in section
