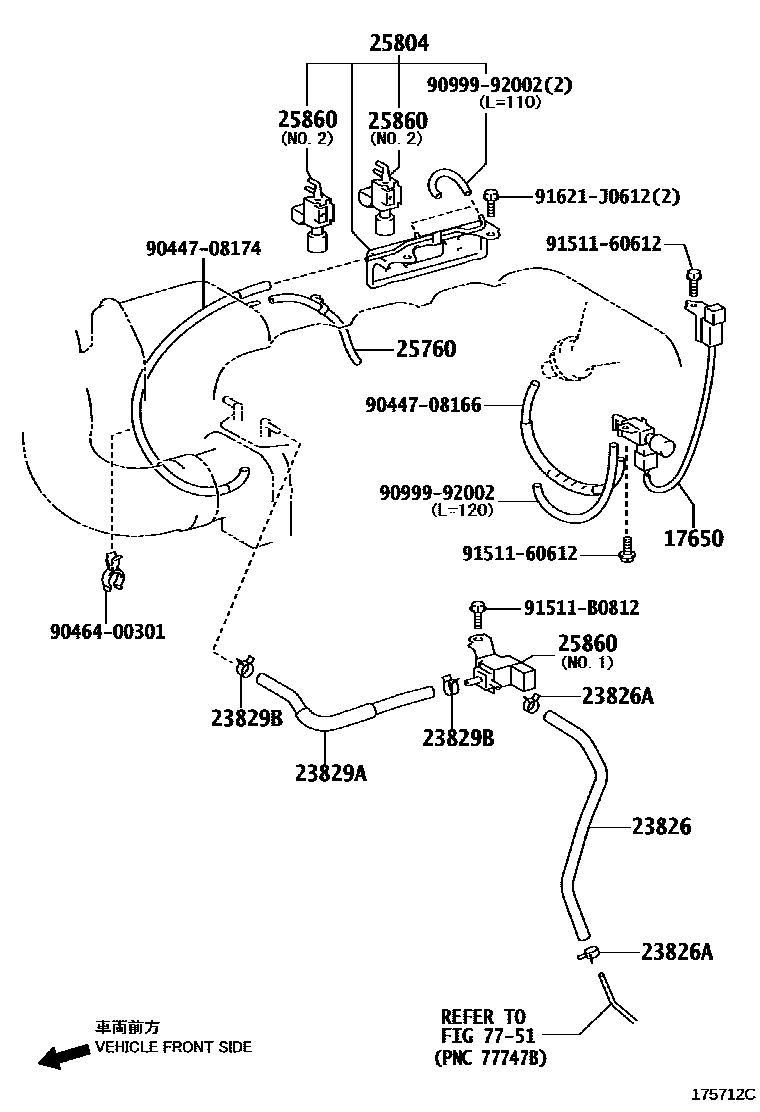

VACUUM PIPING

0001 1 0002 1 0003 1W(VACUUM PUMP) 0004 1W/O(VACUUM PUMP)

17650VALVE ASSY, VACUUM SWITCHING

main25860-38010i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main25860-50170i2UZFE..UZJ200200709-201201

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-38020i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main23826-50070i2UZFE..UZJ200200709-201201

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i2UZFE..UZJ200200709-202104

23829AHOSE, FUEL VAPOR FEED

main23829-38060i1URFE..URJ202..08S..VX201201-202104

sub23829-38061

main23829-50161i2UZFE..UZJ200200709-201201

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90467-13061i2UZFE..UZJ200201010-201201

main96132-51300i2UZFE..UZJ200200709-201010

25760HOSE ASSY, VACUUM TRANSMITTING

main25760-50040i2UZFE..UZJ200200709-201201

25804VALVE SET, VACUUM CONTROL

main25804-50020i2UZFE..UZJ200200709-201201

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2UZFE..UZJ200200709-201201

NO.1

main25860-31060i1URFE..URJ202201201-202104

main25860-46010i2UZFE..UZJ200200709-201201

NO.2

main25860-51010i1VDFTV..VDJ200200709-202104

7751

9044708166

main90447-08166

9044708174

main90447-08174

9046400301

main90464-00301

9099992002

main90999-92002

9151160612

main91511-60612

91511B0812

main91511-B0812

91621J0612

main91621-J0612

16 parts on this diagram · 4 diagrams in section
