AIR CLEANER
1708
17700CLEANER ASSY, AIR
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
HONG KONG SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5,WITH(OBD)
17701CASE SUB-ASSY, AIR CLEANER
HONG KONG SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP5,WITH(OBD)
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)
SOUTH AFRICA SPEC
RUSSIA SPEC
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
UKRAINE SPEC
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
INDIA SPEC
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)
17703CCAP SUB-ASSY, DUST
RUSSIA SPEC
RUSSIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
UKRAINE SPEC
UKRAINE SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
SOUTH AMERICA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)
INDIA SPEC
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC
AZERBAIJAN,GEORGIA,ARMENIA,BELARUS SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITH(OBD)
NEW CALEDONIA SPEC&EXHAUST EMISSION CONTROL-EUROPE STEP3,WITHOUT(OBD)
SOUTH AFRICA SPEC
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
1777838010BOLT, AIR CLEANER SET
main17778-38010
9011906900
9011906942
9331514010

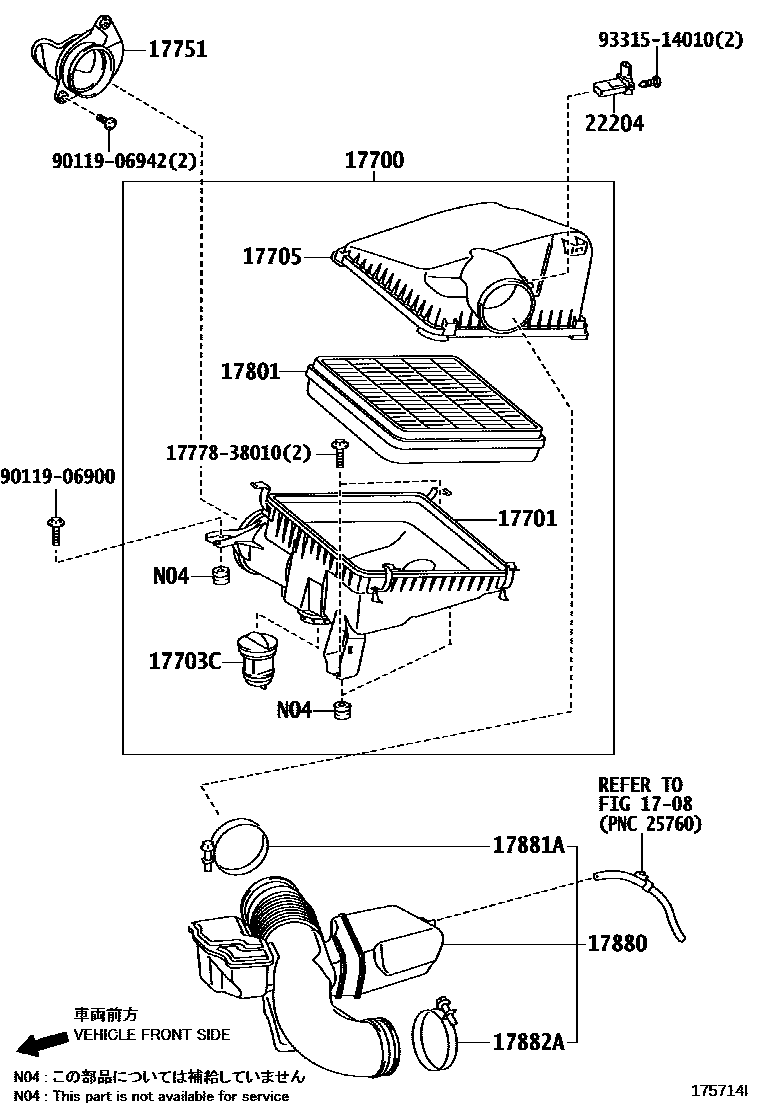

16 parts on this diagram · 4 diagrams in section
