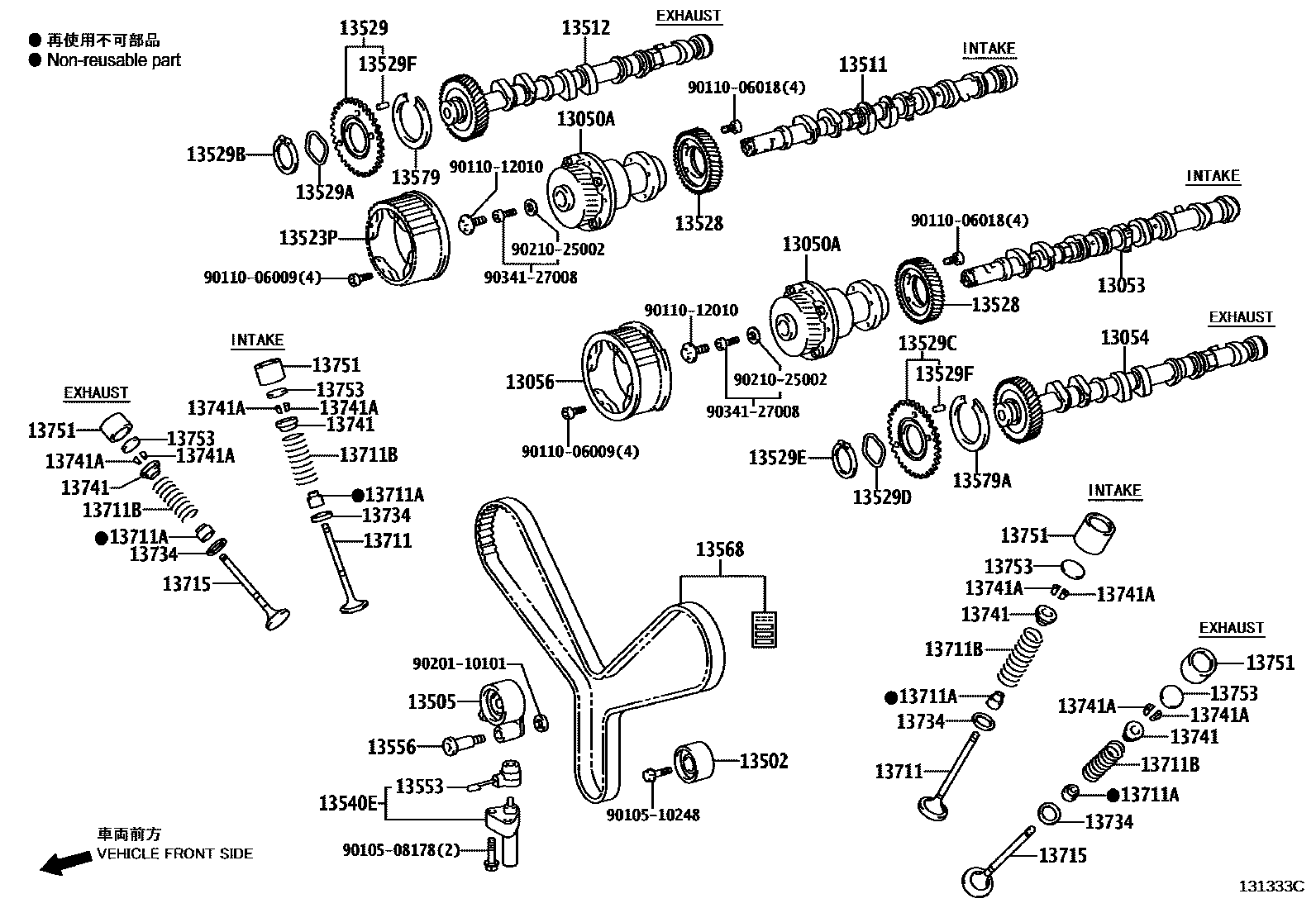

CAMSHAFT & VALVE
13050GEAR ASSY, CAMSHAFT TIMING
13050ATUBE ASSY, CAMSHAFT TIMING
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13056PULLEY SUB-ASSY, CAMSHAFT TIMING, LH
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13511CAMSHAFT
13512CAMSHAFT, NO.2
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
13528GEAR, CAMSHAFT DRIVE
13529GEAR, CAMSHAFT SUB
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13529FPIN, STRAIGHT(FOR CAMSHAFT SUB GEAR)
L=8,OD=5
13540TENSIONER ASSY, CHAIN, NO.1
RH
LH
13540ETENSIONER ASSY, TIMING BELT
13553COVER, CHAIN TENSIONER DUST
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
EXHAUST
INTAKE
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
13753SHIM, VALVE ADJUSTING
T=2.000,MARK 00
T=2.020,MARK 02
T=2.040,MARK 04
T=2.060,MARK 06
T=2.080,MARK 08
T=2.100,MARK 10
T=2.120,MARK 12
T=2.140,MARK 14
T=2.160,MARK 16
T=2.180,MARK 18
T=2.200,MARK 20
T=2.220,MARK 22
T=2.240,MARK 24
T=2.260,MARK 26
T=2.280,MARK 28
T=2.300,MARK 30
T=2.320,MARK 32
T=2.340,MARK 34
T=2.360,MARK 36
T=2.380,MARK 38
T=2.400,MARK 40
T=2.420,MARK 42
T=2.440,MARK 44
T=2.460,MARK 46
T=2.480,MARK 48
T=2.500,MARK 50
T=2.520,MARK 52
T=2.540,MARK 54
T=2.560,MARK 56
T=2.580,MARK 58
T=2.600,MARK 60
T=2.620,MARK 62
T=2.640,MARK 64
T=2.660,MARK 66
T=2.680,MARK 68
T=2.700,MARK 70
T=2.720,MARK 72
T=2.740,MARK 74
T=2.760,MARK 76
T=2.780,MARK 78
T=2.800,MARK 80
9010508178
main90105-08178
9010510248
main90105-10248
9011006009
main90110-06009
9011006018
main90110-06018
9011012010
main90110-12010
9020110101
main90201-10101
9021025002
main90210-25002
9034127008
main90341-27008
43 parts on this diagram · 3 diagrams in section
