CYLINDER BLOCK

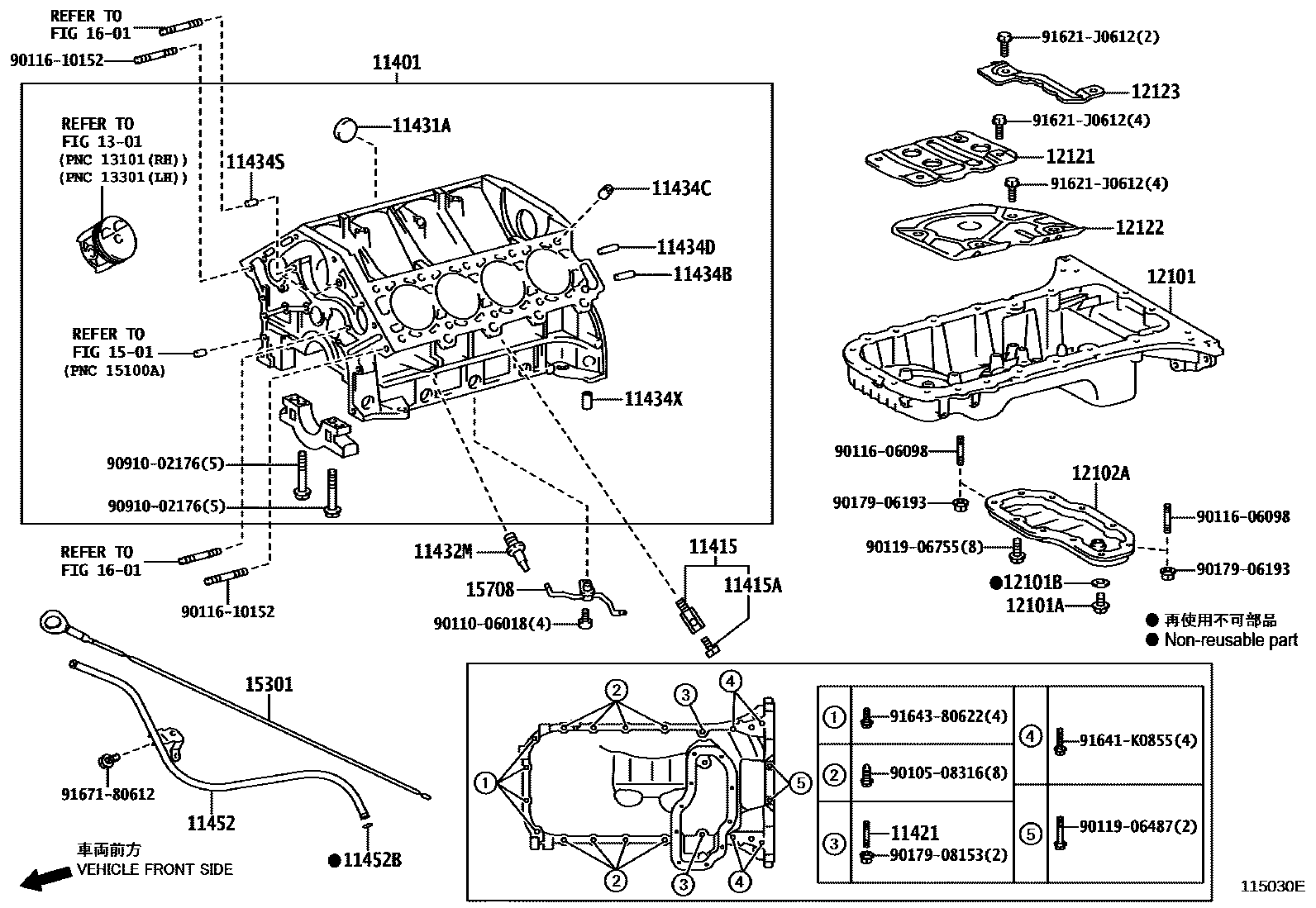

0001 1 0002 1CYLINDER BLOCK 0003 1FITTING PARTS 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39A06i1URFE..URJ202201201-201504

sub11401-39A07

main11401-39A07i1URFE..URJ202201504-202104

main11401-59778i2UZFE..UZJ200200709-200912

sub11401-80796

main11401-80768i1VDFTV..VDJ200200709-202104

main11401-80796i2UZFE..UZJ200200912-201201

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i2UZFE..UZJ200200709-201201

main90910-09129i1URFE..URJ202201201-202104

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i1URFE..URJ202..08S..VX200709-202104

11421BOLT, STUD(FOR OIL PAN)

main90126-08030i2UZFE..UZJ200200709-201201

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-63500i1VDFTV..VDJ200200709-202104

11432MUNION(FOR CYLINDER BLOCK)

main90404-53001i2UZFE..UZJ200200709-201201

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-10113i2UZFE..UZJ200200709-201201

L=22,OD=10

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08048i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S200709-202104

L=15,OD=8

main90250-08120i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

L=18,OD=8

main90253-16001i2UZFE..UZJ200200709-201201

L=20,OD=16

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097i1URFE..URJ202..08S..VX201201-202104

L=12,OD=4.0

main90250-06003i2UZFE..UZJ200200709-201201

L=14,OD=6

main90250-06013i1VDFTV..VDJ200..05S;1VDFTV..VDJ200..RHD..VXR200709-202104

L=16,OD=6

11434SPIN, RING(FOR WATER PUMP SET)

main90253-11021i2UZFE..UZJ200200709-201201

11434XPIN, RING(FOR CHAIN CACE)

main90253-11021i2UZFE..UZJ200200709-201201

11452GUIDE, OIL LEVEL GAGE

main11452-38100i1URFE..URJ202201201-202104

main11452-50220i2UZFE..UZJ200200709-201201

main11452-51020i1VDFTV..VDJ200200709-202104

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i1VDFTV..VDJ200200709-202104

main96721-19010i1URFE..URJ202..VXR;1URFE..URJ202..05S200709-202104

12101PAN SUB-ASSY, OIL

main12101-51030i1VDFTV..VDJ200200709-202104

main12111-0S021i1URFE..URJ202..08S..VX201201-202104

main12111-50190i2UZFE..UZJ200200709-201201

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1VDFTV..VDJ200200709-202104

main90341-12023i2UZFE..UZJ200200709-201201

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1VDFTV..VDJ200200709-202104

12102APAN SUB-ASSY, OIL, NO.2

main12102-38010i1URFE..URJ202..VXR;1URFE..URJ202..05S201201-202104

main12102-50140i2UZFE..UZJ200200709-201201

main12102-51020i1VDFTV..VDJ200200709-202104

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-38070i1URFE..URJ202..08S..VX201201-202104

main12121-50230i2UZFE..UZJ200200709-201201

main12121-51030i1VDFTV..VDJ200..RHD..VX;1VDFTV..VDJ200..LHD..08S200709-202104

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-50040i2UZFE..UZJ200200709-201201

12123PLATE, OIL PAN BAFFLE NO.3

main12123-50020i2UZFE..UZJ200200709-201201

1301

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-38061i1URFE..URJ202201201-201205

sub15301-38062

main15301-38062i1URFE..URJ202..08S..VX201206-202104

main15301-50150i2UZFE..UZJ200200709-201201

main15301-51030i1VDFTV..VDJ200200709-202104

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-38020i1URFE..URJ202201201-201405

sub15708-38030

main15708-38030i1URFE..URJ202201406-202104

main15708-51010i1VDFTV..VDJ200200709-202104

main15790-50010i2UZFE..UZJ200200709-201201

1601

9010508316

main90105-08316

9011006018

main90110-06018

9011606098

main90116-06098

9011610152

main90116-10152

9011906487

main90119-06487

9011906755

main90119-06755

9017906193

main90179-06193

9017908153

main90179-08153

9091002176

main90910-02176

91621J0612

main91621-J0612

91641K0855

main91641-K0855

9164380622

main91643-80622

9167180612

main91671-80612
