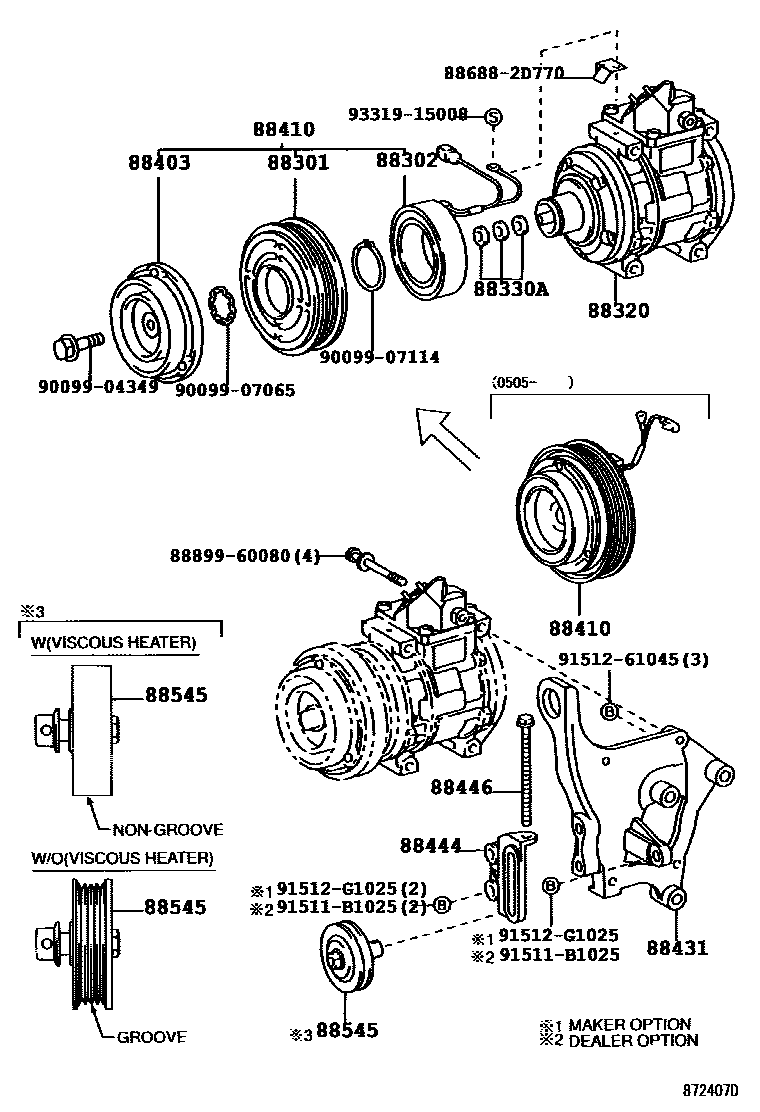

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-60070iUZJ100199801-200502

main88412-6A020iHDJ100199801-200505

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-2A030iHDJ100199801-200505

main88411-3A030iUZJ100199801-200502

88320COMPRESSOR ASSY, COOLER

main88320-60680iUZJ100199801-200501

sub88320-60681

main88320-60681iUZJ100200502-200505

main88320-60700iHDJ100199801-200505

W(SINGLE AIR CONDITIONER)

main88320-60700iHDJ100200505

main88320-60720iHDJ100..VX200208-200505

W(DUAL AIR CONDITIONER)

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iHDJ100;UZJ100..LHD199801-200505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iHDJ100;UZJ100..LHD199801-200505

88410CLUTCH ASSY, MAGNET

main88410-50100iUZJ100199801-200111

main88410-60410iUZJ100200111-200505

main88410-6A010iHDJ100199801-200505

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60260iHDJ100199801-200505

88444BRACKET, IDLE PULLEY

main88444-60120iHDJ100199801-200505

main88444-60160iHDJ100200702

COLD SPEC

88446BOLT, IDLE PULLEY

main88446-60030iHDJ100199801-200008

main88446-60030iHDJ100200008-200505

W/O(VISCOUS HEATER)

main90109-08253iHDJ100199801-200505

W(VISCOUS HEATER)

88545PULLEY ASSY, IDLE

main88440-60060iHDJ100..VX199801-200505

W/O(VISCOUS HEATER), REFER TO ILLUSTRATION

main88440-60070iHDJ100199801-200701

W(VISCOUS HEATER), REFER TO ILLUSTRATION

886882D770BRACKET, COOLER DIAPHRAGM

main88688-2D770

8889960080COVER, EVAPORATOR

main88899-60080

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

91511B1025

main91511-B1025

9151261045

main91512-61045

91512G1025

main91512-G1025

9331915008

main93319-15008

19 parts on this diagram · 3 diagrams in section
