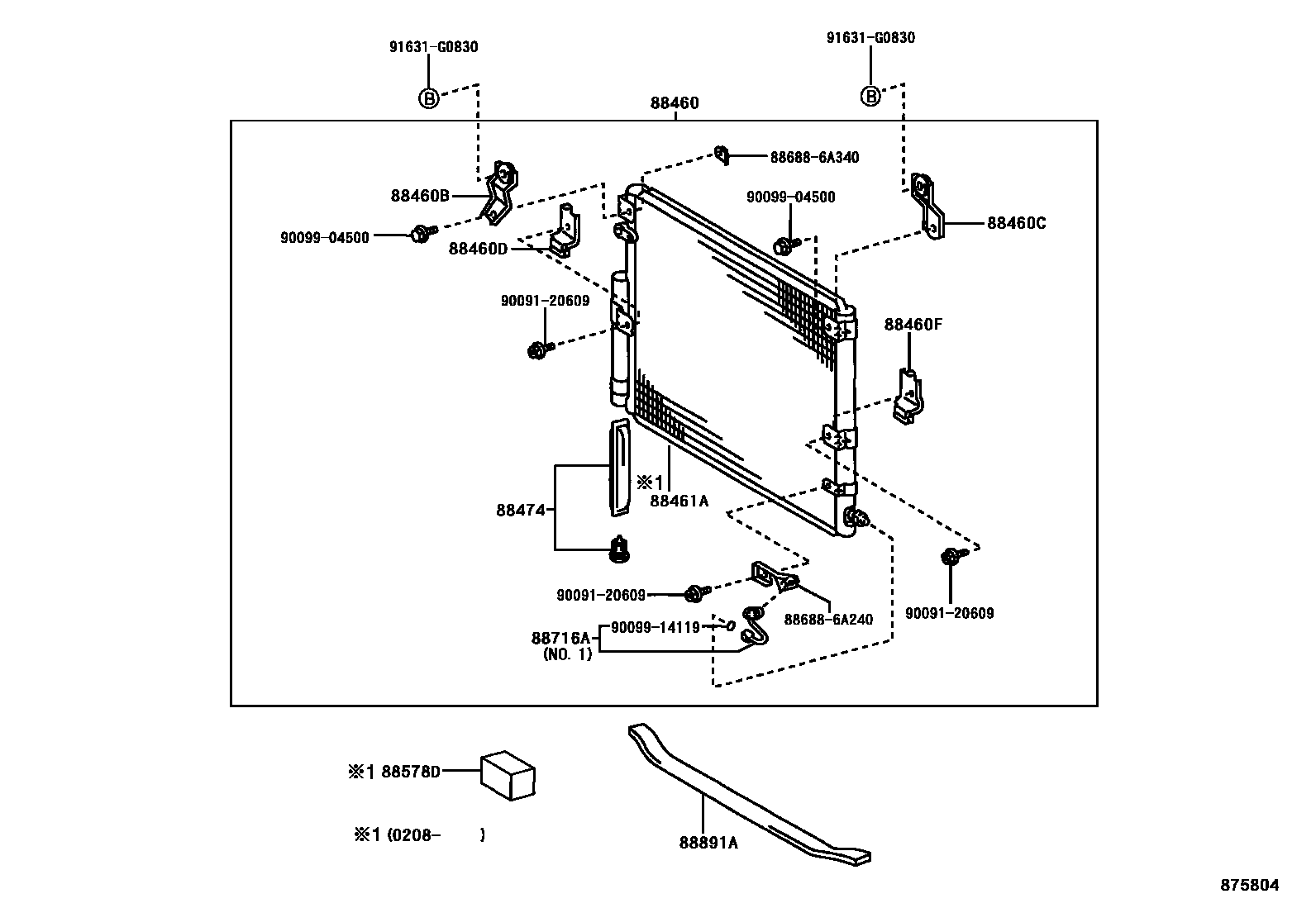

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1CONDENSER(MAKER OPTION,SINGLE0002 1CONDENSER(DEALER OPTION,SINGL0003 1CONDENSER(DUAL AIR CONDITIONE0004 1FRONT(MAKER OPTION,SINGLE) 0005 1FRONT(DEALER OPTION,SINGLE) 0006 1FRONT(MAKER OPTION,SINGLE) 0007 1FRONT(DEALER OPTION,SINGLE) 0008 1FRONT(MAKER OPTION) 0009 1FRONT(DEALER OPTION) 0010 1FRONT(DUAL AIR CON. & COOL BO0011 1FRONT(MAKER OPTION,SINGLE) 0012 1FRONT(DEALER OPTION,SINGLE) 0013 1FRONT(SINGLE & COOL BOX) 0014 1FRONT(DUAL AIR CONDITIONER) 0015 1FRONT(DUAL & COOL BOX) 0016 1FRONT(SINGLE AIR CON. & COOL 0017 1FRONT(DUAL AIR CONDITIONER) 0018 1FRONT(DUAL AIR CON. & COOL BO0019 1FRONT(SINGLE AIR CON. & COOL 0020 1FRONT(DUAL AIR CONDITIONER) 0021 1FRONT(DUAL AIR CON. & COOL BO0022 1REAR(DUAL AIR CONDITIONER) 0023 1REAR(DUAL AIR CON. & COOL BOX0024 1REAR(SINGLE AIR CON. & COOL B0025 1O-RING 0026 1O-RING 0027 1

88460CONDENSER ASSY, COOLER

main88460-60260iHDJ100,UZJ100199801-199810

sub88840-60040

main88460-60261iHDJ100,UZJ100199810-200208

main88460-60262iHDJ100,UZJ100200208-200505

main88460-60271iUZJ100..LHD200001-200208

W(DUAL AIR CONDITIONER)

sub88460-60272

main88460-60903iHDJ100,UZJ100..VX200208-200505

W(DUAL AIR CONDITIONER)

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-60770iHDJ100,UZJ100199801-200505

sub88688-6A220

sub88469-16040

sub88897-60070

main88688-6A420iUZJ100..LHD200001-200505

W(DUAL AIR CONDITIONER)

sub88688-6A430

sub88469-16040

sub88897-60070

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-60780iHDJ100,UZJ100..LHD199801-200505

sub88688-6A210

sub88469-16040

sub88897-60070

main88688-60851iHDJ100..4FC200001-200505

W(DUAL AIR CONDITIONER)

sub88688-6A261

sub88469-16040

sub88897-60070

88460DBRACKET, COOLER CONDENSER, NO.3

main88688-60790iHDJ100..4FC199801-200505

sub88688-6A230

sub88897-60060

88460FBRACKET, COOLER CONDENSER, NO.4

main88688-60800iHDJ100,UZJ100..LHD199801-200505

sub88688-6A200

sub88897-60060

main88688-6A190iHDJ100,UZJ100200001-200505

W(DUAL AIR CONDITIONER)

sub88688-6A470

sub88897-60060

88461ACORE, COOLER CONDENSER

main88461-60030iHDJ100,UZJ100199801-199810

main88461-60032iHDJ100..4FC200208-200505

main88461-60052iHDJ100,UZJ100..(5F,5FC)..VX200208-200505

W(DUAL AIR CONDITIONER)

88474DRYER, COOLER

main88474-17010iHDJ100..4FC200208-200505

main88474-47010iHDJ100,UZJ100199801-200208

88578DPACKING, COOLER PIPE, NO.1

main88578-60190iHDJ100,UZJ100200208-200505

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-6A850iHDJ100,UZJ100199801-200505

NO.1

main88716-6A850iHDJ100..RHD199801-200208

W(SINGLE AIR CONDITIONER),NO.1

main88726-60420iHDJ100..RHD199810-200008

DEALER OPTION,SINGLE AIR CONDITIONER,NO.2

sub88726-60421

main88726-60420iHDJ100,UZJ100199801-199810

DEALER OPTION,NO.2

sub88726-60421

main88726-60421iUZJ100199809-200208

NO.2

main88726-60421iHDJ100199809-200505

W(SINGLE AIR CONDITIONER),NO.2

main88726-60421iHDJ100199809-200505

MAKER OPTION,SINGLE AIR CONDITIONER,NO.2

main88726-60430iUZJ100..LHD200008-200505

W(COOL BOX & SINGLE AIR CONDITIONER),NO.2

main88726-60462iHDJ100,UZJ100200001-200505

W(DUAL AIR CONDITIONER)

main88726-60671iUZJ100200001-200505

W(COOL BOX & DUAL AIR CONDITIONER)

main88726-60692iUZJ100200001-200505

W(DUAL AIR CONDITIONER & WINCH)

main88726-60701iUZJ100200001-200505

W(COOL BOX & DUAL AIR CONDITIONER & WINCH)

88891APACKING A (FOR COOLER)

main88578-60100iHDJ100,UZJ100199801-200505

886886A240BRACKET, COOLER DIAPHRAGM

main88688-6A240

886886A340BRACKET, COOLER DIAPHRAGM

main88688-6A340

9009120609

main90091-20609

9009904500

main90099-04500

9009914119

main90099-14119

91631G0830

main91631-G0830

16 parts on this diagram · 27 diagrams in section
