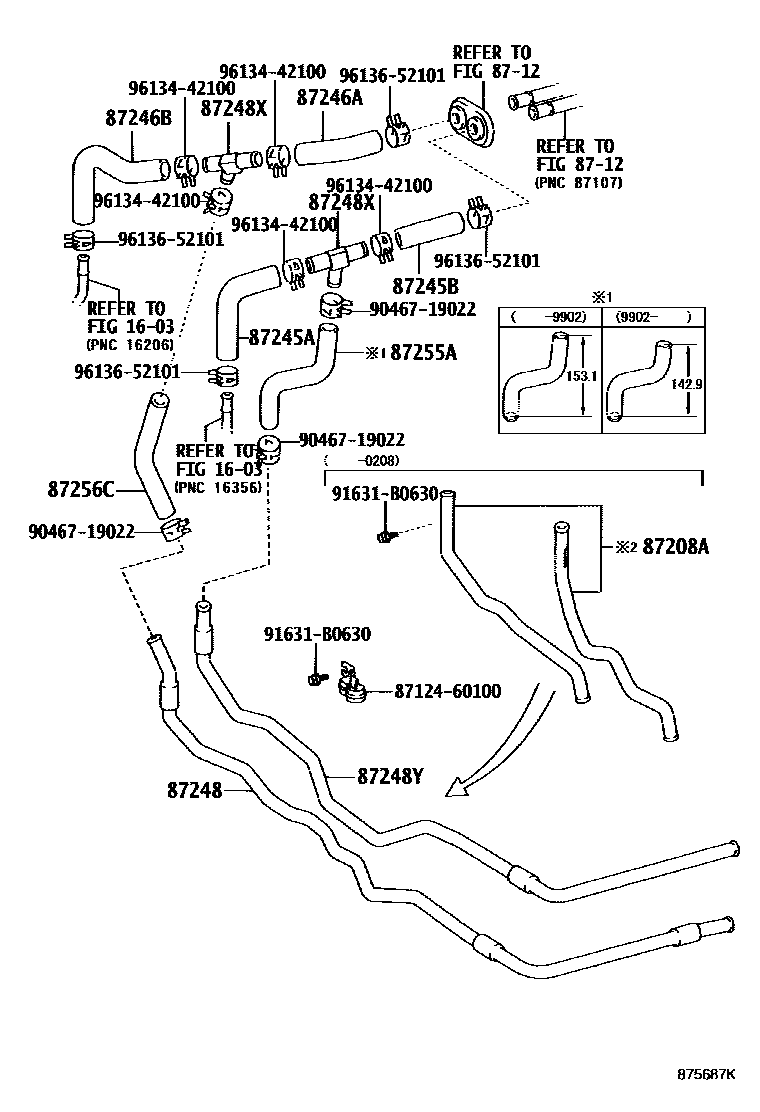

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT,W(REAR HEATER) 0004 1FRONT,W(VISCOUS HEATER) 0005 1REAR

1603

8712

87208APIPE SUB-ASSY, HEATER WATER, A

main87208-60590iHDJ100199801-200505

main87208-60610iUZJ100199801-199902

REFER TO PNC 87255A

main87208-60611iUZJ100199902-200208

REFER TO PNC 87255A

87245AHOSE, HEATER WATER, INLET A

main87245-6A020iHDJ100..5F,5FC199801-200505

main87245-6A220iUZJ100199801-200505

87245BHOSE, HEATER WATER, INLET B

main87245-6A210iUZJ100199801-200505

main87245-6A260iHDJ100199801-200505

W(VISVOUS HEATER)

main87245-6A260iHDJ100..STD200008-200010

main87245-6A300iHDJ100..VX199801-200505

87246AHOSE, HEATER WATER, OUTLET A

main87245-6A180iUZJ100199801-200412

main87245-6A181iUZJ100200501-200505

main87245-6A270iHDJ100..4FC199801-200505

87246BHOSE, HEATER WATER, OUTLET B

main87245-60C90iHDJ100200702

main87245-6A190iUZJ100199801-200412

main87245-6A191iUZJ100200501-200505

main87245-6A230iHDJ100199801-200108

sub87245-6A231

main87245-6A231iHDJ100200108-200609

main87245-6A232iHDJ100200610-200702

sub87245-60C90

87248PIPE SUB-ASSY, WATER

main87248-60730iUZJ100200208-200505

87248XPIPE, HEATER WATER

main87248-60460iHDJ100199801-200505

87248YPIPE, HEATER WATER, NO.2

main87248-60700iUZJ100200208-200505

87255AHOSE, REAR HEATER WATER INLET, A(FROM ENGINE)

main87245-6A200iUZJ100199801-199902

main87245-6A201iUZJ100199902-200208

main87245-6A280iHDJ100199801-200505

main87245-6A800iUZJ100200208-200505

87256CHOSE, REAR HEATER WATER OUTLET, C

main87245-6A170iUZJ100199801-199901

main99556-20155iUZJ100200208-200505

*H,L=155

main99556-20200iUZJ100199902-200208

*H,L=170

8712460100CLAMP, HEATER

main87124-60100

9046719022

main90467-19022

91631B0630

main91631-B0630

9613442100

main96134-42100

9613652101

main96136-52101
