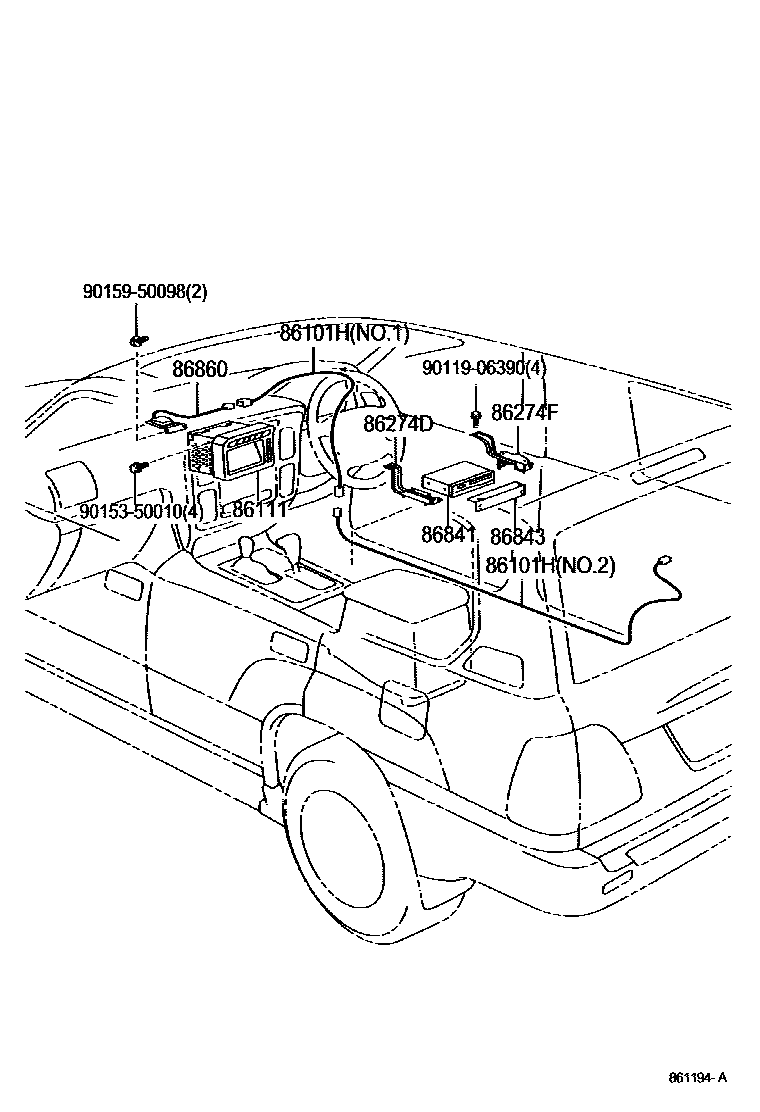

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1 0003 1 0004 1

86101HCORD SUB-ASSY, ANTENNA

main86101-60091iHDJ100,UZJ100..RHD..4FC200008-200108

NO.1

main86101-60101iHDJ100,UZJ100..LHD..VX200008-200308

NO.2

main86101-60160iHDJ100,UZJ100..LHD..VX200008-200108

NO.1

main86101-60170iHDJ100,UZJ100..VX200208-200308

86111MULTI-DISPLAY

main86111-60050iHDJ100,UZJ100..LHD..VX200008-200101

DENSO

sub86111-60051

main86111-60051iHDJ100,UZJ100..LHD..VX200101-200108

DENSO

main86111-60060iHDJ100,UZJ100..RHD..4FC200008-200108

DENSO

main86111-60150iHDJ100,UZJ100..LHD..VX200208-200308

DENSO

main86111-60160iHDJ100,UZJ100..RHD200208-200308

DENSO

main86111-60180iHDJ100,UZJ100..LHD..VX200308-200405

DENSO

sub86111-60181

main86111-60181iHDJ100,UZJ100..LHD..VX200406-200708

DENSO

main86111-60190iHDJ100,UZJ100..RHD200308-200505

DENSO

sub86111-60191

main86111-60191iHDJ100,UZJ100..RHD200505-200708

DENSO

86274DBRACKET, DISC PLAYER

main86274-60060iHDJ100,UZJ100..VX200208-200308

main86274-60100iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

main86274-60240iHDJ100,UZJ100..VX200308-200606

86274FBRACKET, DISC PLAYER, NO.2

main86274-60070iHDJ100,UZJ100..VX200208-200308

main86274-60110iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

main86274-60250iHDJ100,UZJ100..VX200308-200606

86841COMPUTER, NAVIGATION

main86841-13020iHDJ100,UZJ100..VX200208-200308

main86841-47030iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

main86841-50100iHDJ100,UZJ100..VX200308-200708

sub86841-50101

86843COVER, NAVIGATION COMPUTER

main86843-60030iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

86860ANTENNA ASSY, NAVIGATION

main86860-60031iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

main86860-60080iHDJ100,UZJ100..VX200208-200505

main86870-60011iHDJ100..RHD..5FC200307-200308

VOICE RECOGNITION

9011906390

main90119-06390

9015350010

main90153-50010

9015950098

main90159-50098

10 parts on this diagram · 4 diagrams in section
