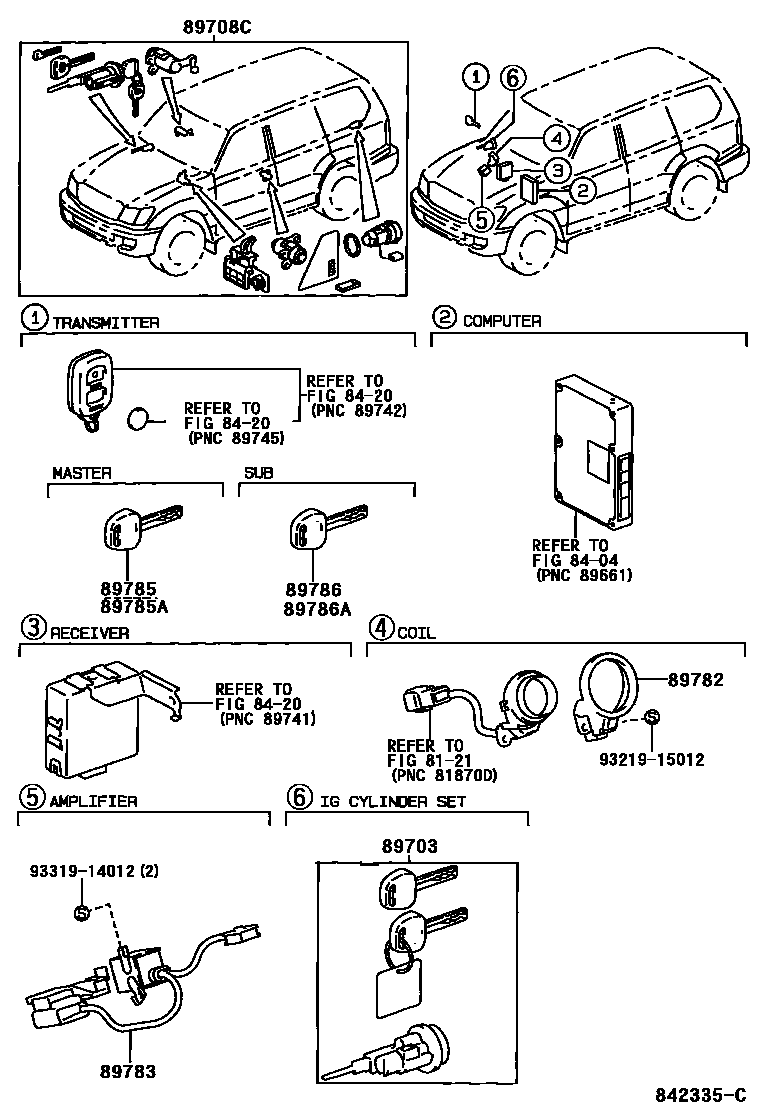

ANTI-THEFT DEVICE

0001 1WIRE LESS=KEY HOLDER TYPE 0002 1WIRELESS=KEY TYPE 0003 1WIRELESS=KEY HOLDER TYPE 0004 1WIRELESS=KEY TYPE 0005 1

8121

8404

8420

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-60380iUZJ100199801-199808

main89703-60390iHDJ100..RHD199801-199808

main89703-60400iHDJ100..LHD199801-199808

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-60080iHDJ100,UZJ100199801-199808

89782COIL, TRANSPONDER KEY

main89782-33020iHDJ100,UZJ100..VX199801-200208

main89782-60030iHDJ100..STD200008-200208

89783AMPLIFIER, TRANSPONDER KEY

main89783-35030iHDJ100,UZJ100200208-200505

sub89783-35031

main89783-60030iUZJ100..RHD199801-200208

main89783-60040iHDJ100..RHD199801-200208

main89783-60050iUZJ100..LHD199801-200208

main89783-60060iHDJ100..LHD199801-200208

main89783-60110iHDJ100,UZJ100200505

sub89783-60111

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-50060iHDJ100,UZJ100..VX200008-200208

main89785-60060iHDJ100,UZJ100199801-200008

main89785-60170iHDJ100,UZJ100200208-200505

89785ATRANSMITTER, TRANSPONDER CUT KEY MASTER

main89785-50070iHDJ100,UZJ100..VX200008-200208

main89785-60050iHDJ100,UZJ100199801-200008

main89785-60130iHDJ100,UZJ100..VX200208-200505

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-50060iHDJ100,UZJ100..VX200008-200208

main89786-60050iHDJ100..STD200008-200208

main89786-60090iHDJ100,UZJ100199801-200008

main89786-60170iHDJ100..STD200208-200505

main89786-60180iHDJ100,UZJ100..VX200208-200505

89786ATRANSMITTER, TRANSPONDER CUT KEY SUB

main89786-50070iHDJ100,UZJ100..VX200008-200208

main89786-60080iHDJ100,UZJ100199801-200008

main89786-60140iHDJ100,UZJ100..VX200208-200505

9321915012

main93219-15012

9331914012

main93319-14012

13 parts on this diagram · 5 diagrams in section
