WIRELESS DOOR LOCK

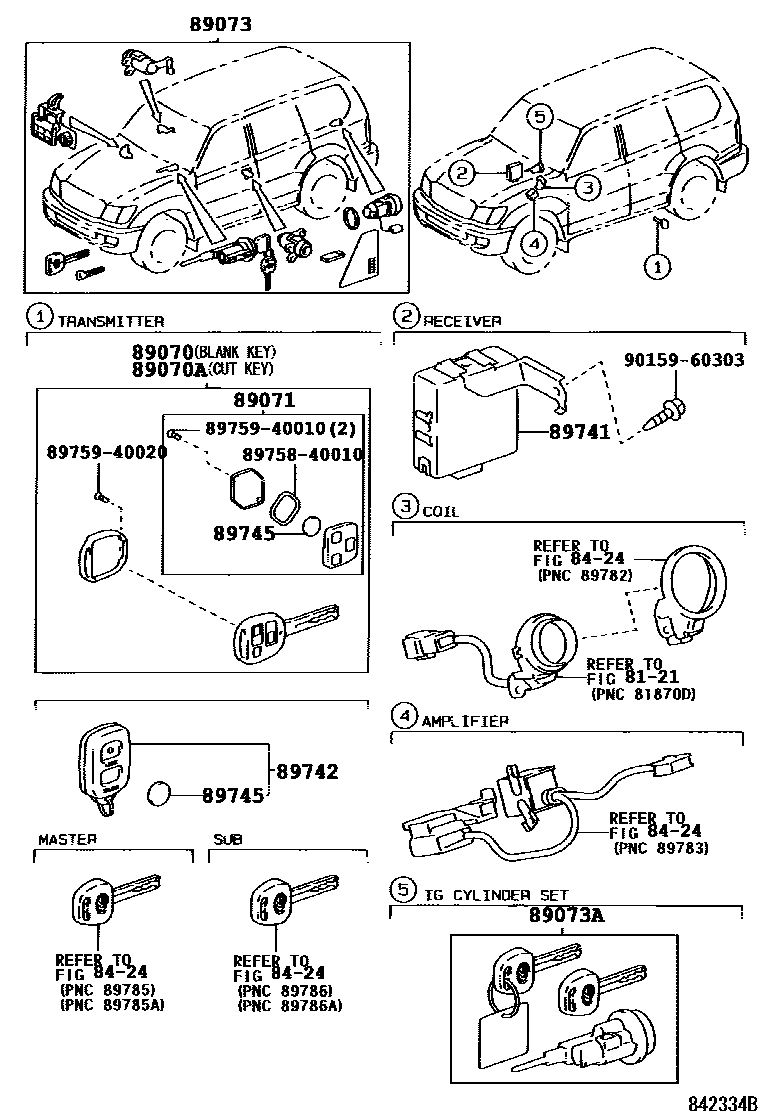

Parts diagram
8121
8424
89070TRANSMITTER ASSY, DOOR CONTROL
main89070-60110i¥0199801-200008
NEW ZEALAND SPEC
main89070-60111i200008-200208
NEW ZEALAND SPEC
main89070-60130i¥22,900200008-200107
main89070-60240i¥0199808-200008
sub89070-60590
main89070-60241i200008-200012
sub89070-60242¥0
main89070-60242i¥0200012-200208
main89070-60250i¥0199808-200008
sub89070-60590
main89070-60251i200008-200012
sub89070-60242¥0
main89070-60260i199808-200008
AUSTRIA OR GERMANY SPEC
sub89070-60590
main89070-60261i200008-200012
AUSTRIA OR GERMANY SPEC
sub89070-60242¥0
main89070-60270i199808-200008
DENMARK OR ITALY SPEC
sub89070-60590
main89070-60271i200008-200012
DENMARK OR ITALY SPEC
sub89070-60242¥0
main89070-60290i199808-200008
FRANCE SPEC
sub89070-60590
main89070-60291i200008-200012
FRANCE SPEC
sub89070-60242¥0
main89070-60480i¥19,400200107-200208
main89070-60740i200208-200604
NEW ZEALAND SPEC
sub89070-60741
main89070-60741i200605
NEW ZEALAND SPEC
main89070-60780i200208-200604
sub89070-60781
main89070-60781i200605
sub89070-60782
main89070-60790i200208-200505
sub89070-60791
89070ATRANSMITTER, DOOR CONTROL (CUT KEY)
main89070-60160i199801-200008
NEW ZEALAND SPEC
main89070-60161i¥33,400200008-200208
NEW ZEALAND SPEC
main89070-60300i199808-200008
sub89070-60600
main89070-60301i200008-200012
sub89070-60302
main89070-60302i200012-200208
main89070-60310i199808-200008
sub89070-60600
main89070-60311i200008-200012
sub89070-60302
main89070-60320i199808-200008
AUSTRIA OR GERMANY SPEC
sub89070-60600
main89070-60321i200008-200012
AUSTRIA OR GERMANY SPEC
sub89070-60302
main89070-60330i199808-200008
DENMARK OR ITALY SPEC
sub89070-60600
main89070-60331i200008-200012
DENMARK OR ITALY SPEC
sub89070-60302
main89070-60350i199808-200008
FRANCE SPEC
sub89070-60600
main89070-60351i200008-200012
FRANCE SPEC
sub89070-60302
main89070-60850i200208-200604
NEW ZEALAND SPEC
sub89070-60851
main89070-60851i200605
NEW ZEALAND SPEC
main89070-60860i200208-200604
sub89070-60861¥30,100
main89070-60861i¥30,100200605
sub89070-60862
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-42050i¥16,500200305-200505
main89071-50251i200208-200505
main89071-60010i¥18,000200008-200107
main89071-60030i¥16,500200107-200208
main89071-60030i¥16,500199801-200208
NEW ZEALAND SPEC
main89071-60080i199808-200012
sub89071-60081¥16,500
main89071-60081i¥16,500200012-200208
main89071-60170i200208-200505
NEW ZEALAND SPEC
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
main69005-6C460i¥71,200200208-200604
sub69005-6C461
main69005-6C461i200605
main69005-6C510i¥24,700200208-200505
sub69005-6C511
main89073-60100i199801-200008
NEW ZEALAND SPEC
main89073-60101i¥52,600200008-200208
NEW ZEALAND SPEC
main89073-60201i200008-200107
main89073-60270i199808-200008
sub89073-60690
main89073-60271i200008-200012
sub89073-60272
main89073-60272i200012-200208
main89073-60280i199808-200008
sub89073-60690
main89073-60281i200008-200012
sub89073-60272
main89073-60290i199808-200008
AUSTRIA OR GERMANY SPEC
sub89073-60690
main89073-60291i200008-200012
AUSTRIA OR GERMANY SPEC
sub89073-60272
main89073-60300i199808-200008
DENMARK OR ITALY SPEC
sub89073-60690
main89073-60301i200008-200012
DENMARK OR ITALY SPEC
sub89073-60272
main89073-60320i199808-200008
FRANCE SPEC
sub89073-60690
main89073-60321i200008-200012
FRANCE SPEC
sub89073-60272
main89073-60660i¥29,300200107-200208
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
main69057-60490i¥20,700200208-200604
sub69057-60491
main69057-60491i200605
main69057-60560i¥13,400200208-200505
sub69057-60561¥18,400
main89073-60040i¥31,000199801-200008
NEW ZEALAND SPEC
main89073-60041i200008-200208
NEW ZEALAND SPEC
main89073-60060i200008-200107
main89073-60210i199808-200008
sub89073-60680
main89073-60211i200008-200012
sub89073-60212
main89073-60212i200012-200208
main89073-60220i199808-200008
sub89073-60680
main89073-60221i200008-200012
sub89073-60212
main89073-60230i199808-200008
AUSTRIA OR GERMANY SPEC
sub89073-60680
main89073-60231i200008-200012
AUSTRIA OR GERMANY SPEC
sub89073-60212
main89073-60240i199808-200008
DENMARK OR ITALY SPEC
sub89073-60680
main89073-60241i200008-200012
DENMARK OR ITALY SPEC
sub89073-60212
main89073-60260i¥44,100199808-200008
FRANCE SPEC
sub89073-60680
main89073-60261i200008-200012
FRANCE SPEC
sub89073-60212
main89073-60640i200107-200208
89741RECEIVER, DOOR CONTROL
main89741-60061i¥53,700200008-200107
main89741-60080i¥53,700199801-200208
NEW ZEALAND SPEC
main89741-60100i¥53,700200107-200208
main89741-60120i¥53,700199801-199808
sub89741-60121¥53,600
main89741-60130i¥53,700199801-199808
sub89741-60131¥53,600
main89741-60230i199808-199907
sub89741-60310
main89741-60231i199907-200012
sub89741-60232
main89741-60232i200012-200208
main89741-60240i199808-199907
sub89741-60320
main89741-60241i199907-200012
sub89741-60242
main89741-60242i200012-200208
main89741-60380i¥34,800200208-200505
NEW ZEALAND SPEC
main89741-60390i¥34,800200208-200505
89742TRANSMITTER, DOOR CONTROL
main89742-12110i¥16,200199801-199808
sub89742-12111¥16,200
main89742-12120i¥16,200199801-199808
sub89742-12111¥16,200
main89742-12130i¥16,200199801-199808
GERMAN SPEC
sub89742-12111¥16,200
main89742-12140i¥16,200199801-199808
DENMARK SPEC
sub89742-12111¥16,200
main89742-12150i¥16,200199801-199808
SWEDEN SPEC
sub89742-12111¥16,200
main89742-12170i¥16,200199801-199808
FRANCE SPEC
sub89742-12111¥16,200
89745BATTERY, TRANSMITTER
main89745-40010i¥440199808-200505
main89745-40010i¥440199801-199808
NEW ZEALAND SPEC
main89745-50010i¥440199801-199808
sub89745-71010¥440
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010¥220
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010¥120
8975940020SCREW, DOOR CONTROL TRANSMITTER
main89759-40020¥120
9015960303
main90159-60303¥70

14 parts on this diagram · 3 diagrams in section
