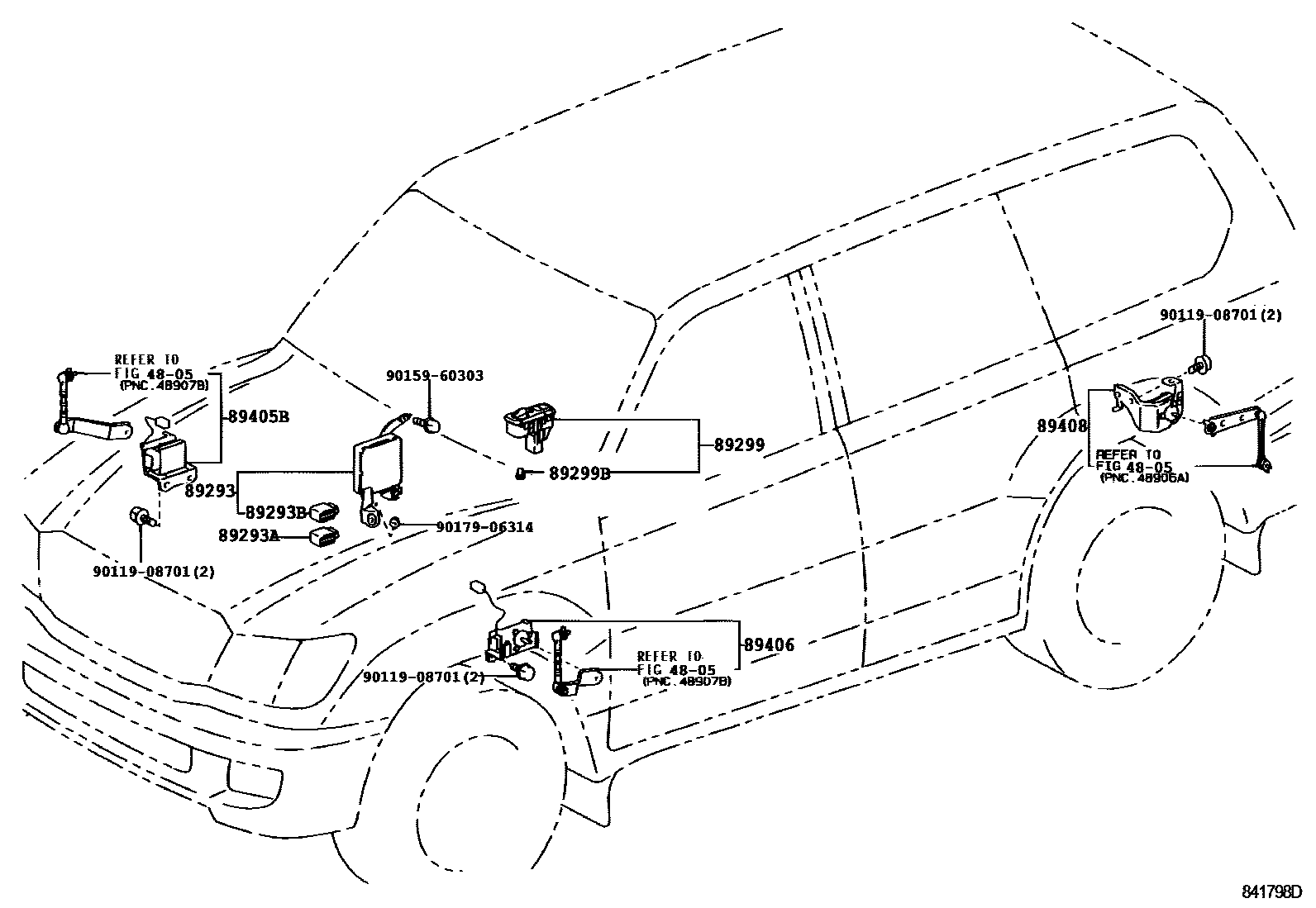

ELECTRONIC MODULATED SUSPENSION

4805

89293COMPUTER, SUSPENSION CONTROL

main89290-60010iHDJ100,UZJ100..RHD¥54,300199801-199907

sub89290-60011¥54,300

main89290-60011iHDJ100,UZJ100..RHD¥54,300199907-200208

main89290-60020iHDJ100,UZJ100..LHD¥54,300199801-199907

sub89290-60021¥54,300

main89290-60021iHDJ100,UZJ100..LHD..VX¥54,300199907-200208

main89290-60030iHDJ100,UZJ100..RHD..(5F,5FC)¥54,300200208-200409

sub89290-60031¥54,300

main89290-60031iHDJ100,UZJ100..RHD¥54,300200409-200505

main89290-60040iHDJ100..LHD..4FC200208-200409

sub89290-60041¥54,300

main89290-60041iHDJ100,UZJ100..LHD..VX¥54,300200409-200505

89293ARELAY, SUSPENSION CONTROL

main88263-24020iHDJ100,UZJ100¥3,890199801-200505

89293BRELAY, SUSPENSION CONTROL MAIN

main89278-60010iHDJ100,UZJ100..VX¥4,010200305-200505

main90987-02004iHDJ100,UZJ100..VX¥2,330199801-200305

89299SWITCH, SUSPENSION CONTROL

main89299-60010iHDJ100,UZJ100..VX¥9,100199801-200308

main89299-60020iHDJ100,UZJ100¥9,000200308-200505

89299BBULB(FOR SUSPENSION CONTROL SWITCH)

main90010-01039iHDJ100,UZJ100..VX¥270199801-200505

89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH

main89405-60010iHDJ100,UZJ100¥41,600199801-199804

sub89405-60011¥41,700

main89405-60011iHDJ100,UZJ100..VX¥41,700199804-200606

sub89405-60012¥41,700

main89405-60012iHDJ100,UZJ100¥41,700200607

89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH

main89406-60010iUZJ100¥41,600199801-199806

sub89406-60011¥41,700

main89406-60011iUZJ100¥41,700199806-200606

sub89406-60012¥41,700

main89406-60012iUZJ100¥41,700200607

main89406-60020iHDJ100¥41,600199801-199806

sub89406-60021¥41,700

main89406-60021iHDJ100¥41,700199806-200606

sub89406-60022¥41,700

main89406-60022iHDJ100¥41,700200607

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-60010iHDJ100,UZJ100..VX¥41,700199801-200505

9011908701

main90119-08701¥90

9015960303

main90159-60303¥70

9017906314

main90179-06314¥70

12 parts on this diagram · 1 diagram in section
