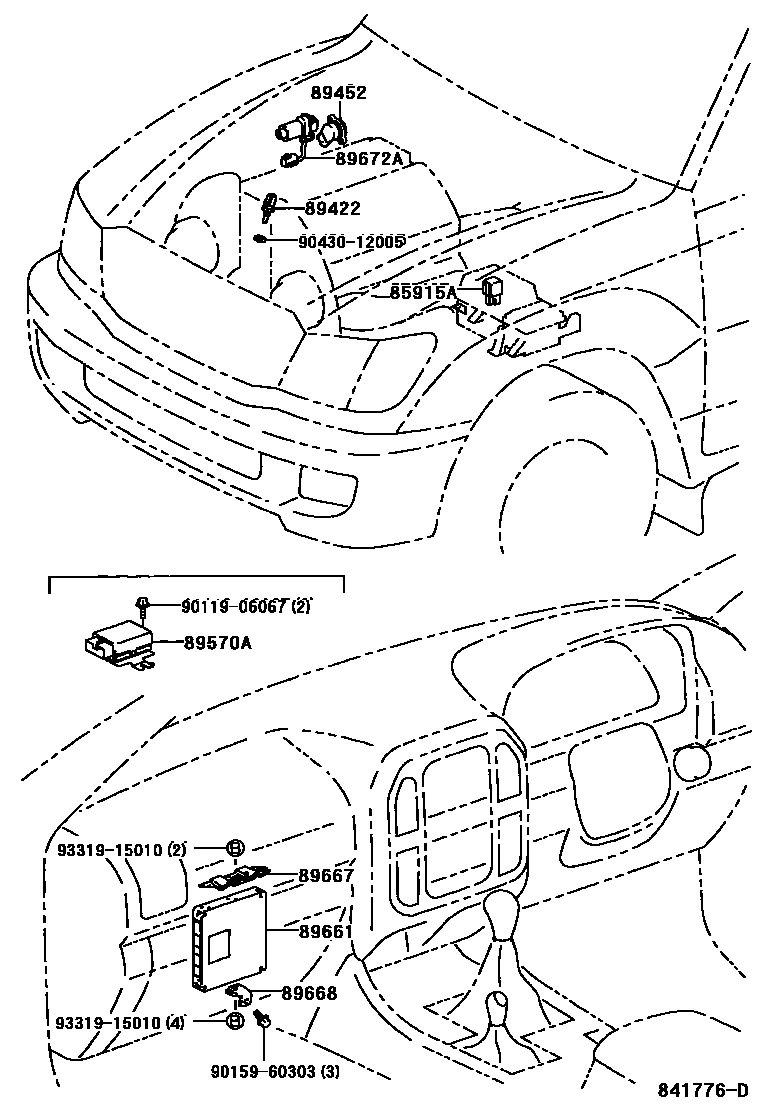

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85915ARELAY, MAIN

main85915-30050iUZJ100199801-200505

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iUZJ100199801-200108

main89422-20010iUZJ100..LHD200108-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

main89422-30030iUZJ100200108-200708

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30140iUZJ100199801-200208

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-60130iUZJ100199801-200208

main89570-60140iUZJ100..LHD200108-200208

RUSSIA SPEC OR SOUTH AMERICA SPEC OR CHINA SPEC

89661COMPUTER, ENGINE CONTROL

main89661-60620iUZJ100199801-199907

main89661-6A240iUZJ100200208-200211

MARK = 89661-6A240

sub89661-6A241

main89661-6A241iUZJ100200211-200708

MARK = 89661-6A241

main89661-6A250iUZJ100200208-200211

MARK = 89661-6A250

sub89661-6A251

main89661-6A251iUZJ100200211-200708

MARK = 89661-6A251

main89661-6A260iUZJ100200208-200210

MARK = 89661-6A260

sub89661-6A261

main89661-6A261iUZJ100200210-200708

MARK = 89661-6A261

main89666-60180iUZJ100199907-200108

MARK = 89666-60180

main89666-60240iUZJ100..LHD199907-200110

MARK = 89666-60240

sub89666-60241

main89666-60241iUZJ100..LHD200110-200208

MARK = 89666-60241

main89666-60270iUZJ100..RHD199903-199907

main89666-60720iUZJ100200108-200110

MARK = 89666-60720

sub89666-60721

main89666-60721iUZJ100200110-200208

MARK = 89666-60721

main89666-60730iUZJ100..LHD200108-200110

MARK = 89666-60730

sub89666-60731

main89666-60731iUZJ100..LHD200110-200208

MARK = 89666-60731

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-60140iUZJ100199801-200708

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-60160iUZJ100199801-200708

89672AMOTOR, THROTTLE CONTROL

main89672-47010iUZJ100199801-200208

9011906067

main90119-06067

9015960303

main90159-60303

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 3 diagrams in section
