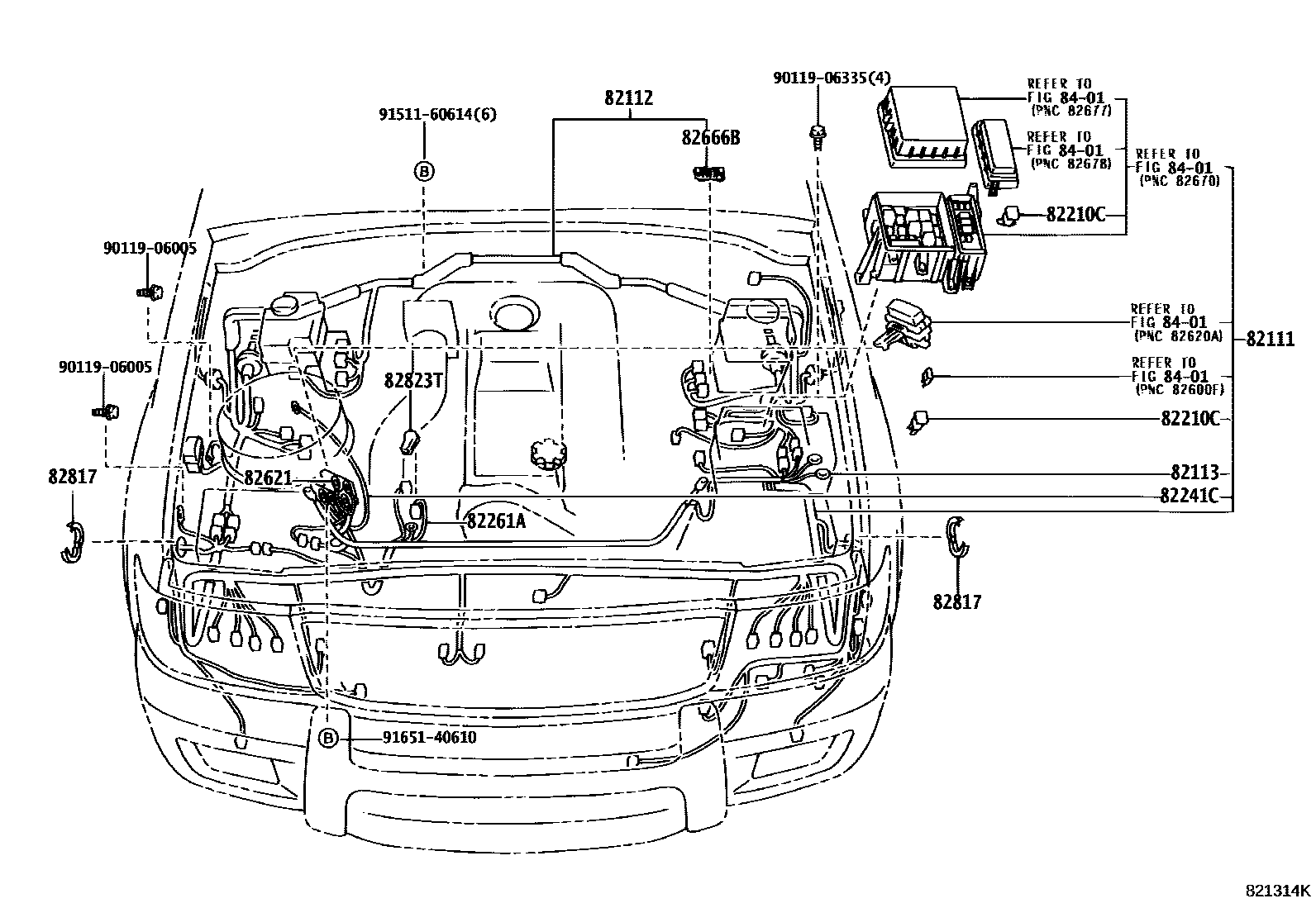

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
COLD SPEC
W(SINGLE AIR CONDITIONER)
CHINA SPEC
CHINA SPEC
CHINA SPEC
W(DUAL AIR CONDITIONER)
W(DUAL AUTO AIR CONDITIONER)
COLD SPEC
W(DUAL AIR CONDITIONER)
W(DUAL AUTO AIR CONDITIONER)
W(COOL BOX OR TEMS)
W(COOL BOX OR TEMS)
W(SINGLE AIR CONDITIONER)
82112WIRE, ENGINE ROOM, NO.2
W(ABS)
W(ABS)
W(ABS)
W(ABS)
CYPRUS SPEC
CYPRUS SPEC
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
W(VSC)
SOUTH AFRICA SPEC & W(VSC)
SOUTH AFRICA SPEC & W(VSC)
SOUTH AMERICA SPEC
SOUTH AMERICA SPEC
SOUTH AMERICA SPEC
CHINA OR RUSSIA OR SOUTH AMERICA OR COSTA RICA SPEC & W(ABS)
RUSSIA OR SOUTH AMERICA OR COSTA RICA SPEC & W(ABS)
COSTA RICA OR RUSSIA OR SOUTH AFRICA SPEC
COSTA RICA OR RUSSIA OR SOUTH AMERICA SPEC
SOUTH AMERECA SPEC & W(VSC)
SOUTH AMERECA SPEC & W(VSC)
SOUTH AMERECA SPEC & W(VSC)
CHINA OR RUSSIA OR SOUTH AMERICA OR COSTA RICA SPEC & W(VSC)
RUSSIA SPEC & W(VSC) OR SOUTH AFRICA SPEC & W(VSC);CHINA SPEC & W(VSC) OR COSTA RICA SPEC & W(VSC)
COSTA RICA SPEC & W(VSC) OR RUSSIA SPEC & W(VSC) OR SOUTH AMERICA SPEC & W(VSC)
SOUTH AFRICA SPEC & W(ABS)
SOUTH AFRICA SPEC & W(ABS)
SOUTH AFRICA SPEC
W(VSC)
W(VSC)
W(VSC)
W(VSC)
82113WIRE, ENGINE ROOM, NO.3
82210CFUSIBLE LINK
100A,TERM.:MALE,BLUE
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
50A,FEMALE,RED,32VDC
140A,TERM.:MALE,RBR
60A,YELLOW
80A,BLACK
82241CWIRE, RELAY
82261AWIRE, ALTERNATOR
W(BATTERY=80D26R + 80D26L)
W(BATTERY=105D31R + 105D31L)
COLD SPEC
82621COVER, FUSIBLE LINK
82666BHOLDER, CONNECTOR NO.3
RUSSIA SPEC OR SOUTH AMERICA
W(VSC)
82817PROTECTOR, WIRING HARNESS, NO.1
82823CAP, TERMINAL, NO.1
82823TCAP, ALTERNATOR TERMINAL
8401
9011906005
9011906335
9151160614
9165140610
16 parts on this diagram · 29 diagrams in section
