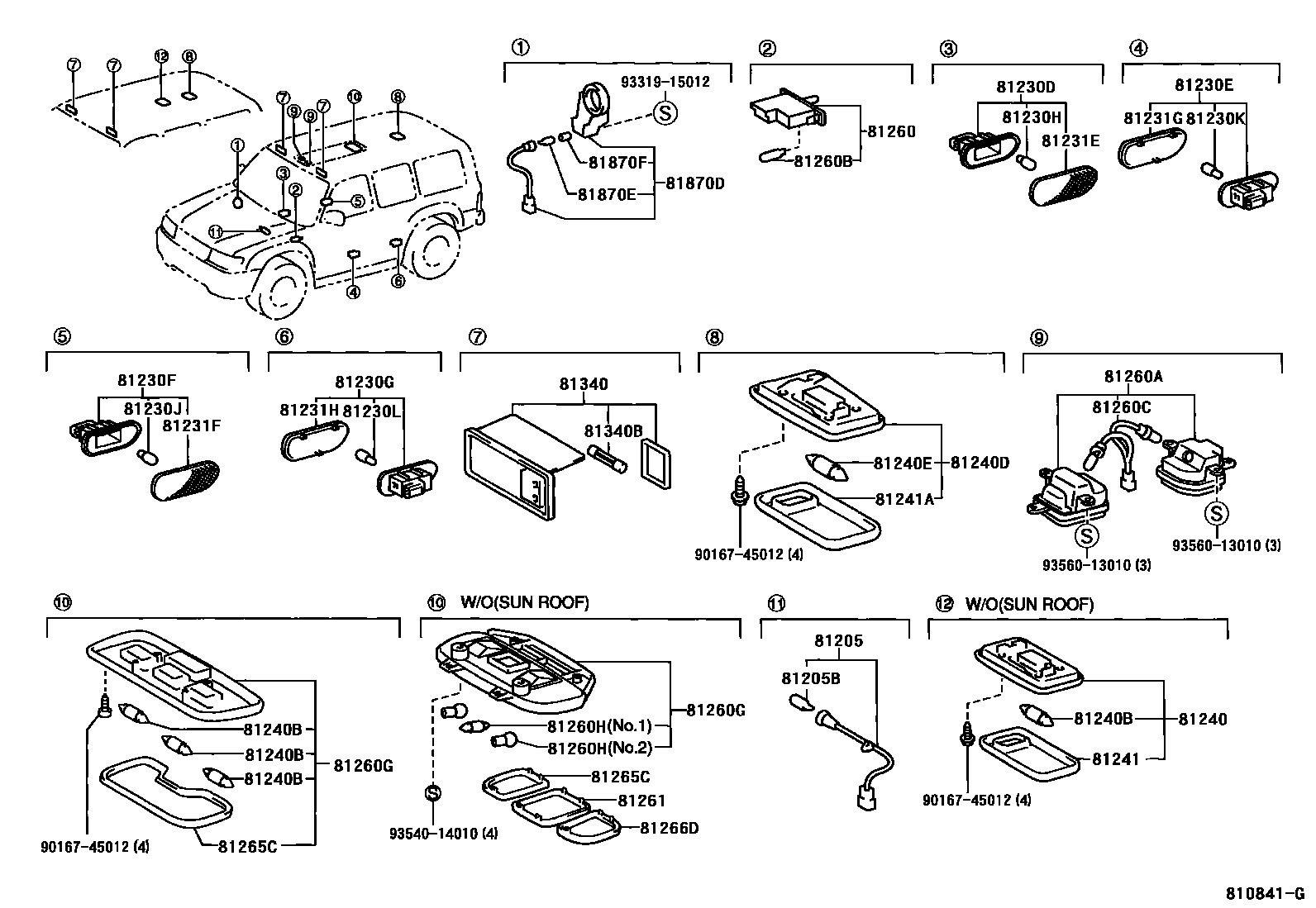

INTERIOR LAMP

0001 1 0002 1

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-60530iHDJ100,UZJ100199801-200103

main81850-60550iHDJ100..LHD..5F200103-200208

W(BENCH SEAT)

main81850-60560iHDJ100,UZJ100200505

W(SEPARATE SEAT)

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iHDJ100,UZJ100199801-200208

14V 1.4W

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-33010iHDJ100,UZJ100..VX199801-200208

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81310-33010iHDJ100,UZJ100..VX199801-200208

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-33010iHDJ100,UZJ100..VX199801-200208

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81310-33010iHDJ100,UZJ100..VX199801-200208

81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)

main90981-11020iHDJ100,UZJ100..VX199801-200208

12V 3.8W

81230JBULB(FOR REAR DOOR COURTESY LAMP RH)

main90981-11020iHDJ100,UZJ100..VX199801-200208

12V 3.8W

81230KBULB(FOR REAR DOOR COURTESY LAMP LH)

main90981-11020iHDJ100,UZJ100..VX199801-200208

12V 3.8W

81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)

main90981-11020iHDJ100,UZJ100..VX199801-200208

12V 3.8W

81231ELENS (FOR FRONT DOOR COURTESY LAMP, RH)

main81231-33010iHDJ100,UZJ100200505

81231FLENS (FOR REAR DOOR COURTESY LAMP, RH)

main81231-33010iHDJ100,UZJ100..VX200208-200505

81231GLENS (FOR FRONT DOOR COURTESY LAMP, LH)

main81311-33010iHDJ100,UZJ100..VX200208-200505

81231HLENS (FOR REAR DOOR COURTESY LAMP, LH)

main81311-33010iHDJ100,UZJ100..VX200208-200505

81240LAMP ASSY, ROOM, NO.1

main81240-60040-B0iHDJ100..STD200008-200208

MD.GRAY,TRIM1#

main81240-60040-B1iHDJ100..STD200208-200210

STONE,TRIM1#

main81250-60020-B0iHDJ100..STD200210-200505

STONE,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14004×3iHDJ100..STD200208-200505

12V 8W,W/O(SUN ROOF)

81240DLAMP ASSY, ROOM, NO.2

main81240-60040-A0iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41

main81240-60040-A1iHDJ100,UZJ100..VX200208-200210

IVORY,TRIM0#

main81240-60040-B0iHDJ100,UZJ100199801-200208

MD.GRAY,TRIM1#

main81240-60040-B1iHDJ100,UZJ100200208-200210

STONE,TRIM1#

main81250-60020-A0iHDJ100,UZJ100200505-200708

IVORY,TRIM0#

main81250-60020-B0iHDJ100,UZJ100200210-200505

STONE,TRIM1#

81240EBULB, ROOM LAMP, NO.2

main90981-14004iHDJ100,UZJ100199801-200208

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-32031iHDJ100..STD200008-200208

81241ALENS, ROOM LAMP, NO.2

main81241-32031iHDJ100,UZJ100200208-200505

81260LAMP ASSY, GLOVE BOX

main81260-33030iHDJ100,UZJ100..VX200208-200505

81260ALAMP ASSY, MAP

main81260-60050-A0iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41

main81260-60050-B0iHDJ100,UZJ100..VX199801-200208

MD.GRAY,TRIM1#

main81260-60080-A0iHDJ100,UZJ100200505-200708

IVORY,TRIM0#

main81260-60080-B0iHDJ100,UZJ100..VX200208-200505

STONE,TRIM1#

81260BBULB(FOR GLOVE BOX)

main90981-11018iHDJ100,UZJ100..VX199801-200208

12V 1.2W W/O SOCKET

81260CBULB(FOR MAP LAMP)

main99132-12050×2iHDJ100,UZJ100200505

12V 5W

81260GLAMP ASSY, MAP, NO.2

main81260-60060-A0iHDJ100..LHD..5F;HDJ100,UZJ100..4FC199801-199908

W/O(SUN ROOF),IVORY,TRIM40,41

main81260-60060-B0iHDJ100,UZJ100199801-199908

W/O(SUN ROOF),MD.GRAY,TRIM1#

main81260-60061-A0iHDJ100,UZJ100..VX199908-200208

W/O(SUN ROOF),IVORY,TRIM40,41

main81260-60061-A1iHDJ100,UZJ100..VX200208-200505

W/O(SUN ROOF),IVORY,TRIM0#

main81260-60061-B0iHDJ100,UZJ100..VX199908-200208

W/O(SUN ROOF),MD.GRAY,TRIM1#

main81260-60061-B1iHDJ100,UZJ100200505-200708

W/O(SUN ROOF),STONE,TRIM1#

main81260-60070-A0iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41

main81260-60070-B0iHDJ100,UZJ100..VX199801-200208

MD.GRAY,TRIM1#

main81260-60150-A0iHDJ100,UZJ100..VX200208-200210

IVORY,TRIM0#

main81260-60150-B0iHDJ100,UZJ100..VX200208-200210

STONE,TRIM1#

main81260-60151-A0iHDJ100,UZJ100200505-200708

IVORY,TRIM0#

main81260-60151-B0iHDJ100,UZJ100200505-200708

STONE,TRIM1#

81260HBULB(FOR MAP LAMP), NO.2

main90981-14011iHDJ100,UZJ100..VX199801-200208

12V 8W,NO.1

main99132-12050×2iHDJ100,UZJ100..VX200208-200505

12V 5W,NO.2

81261LENS AND COVER, MAP LAMP

main81261-60060iHDJ100,UZJ100200505

81265CLENS, MAP LAMP, NO.1

main81265-60060iHDJ100,UZJ100..VX199801-200208

W/O(SUN ROOF)

main81265-60070iHDJ100,UZJ100..VX200208-200505

81266DLENS, MAP LAMP, NO.2

main81266-60060iHDJ100,UZJ100200505

81340LAMP ASSY, VANITY

main81340-33090-A0iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41,RH

main81340-33090-A1iHDJ100,UZJ100..VX200208-200505

IVORY,TRIM0#,RH

main81340-33090-B4iHDJ100,UZJ100..VX199801-200208

MD.GRAY,TRIM1#,RH

main81340-33090-B8iHDJ100,UZJ100200505-200708

STONE,TRIM1#,RH

main81350-33040-A0iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41,LH

main81350-33040-A1iHDJ100,UZJ100..VX200208-200505

IVORY,TRIM0#,LH

main81350-33040-B4iHDJ100,UZJ100..VX199801-200208

MD.GRAY,TRIM1#,LH

main81350-33040-B8iHDJ100,UZJ100..VX200208-200505

STONE,TRIM1#,LH

81340BBULB (FOR VANITY LAMP)

main90981-14003×2iHDJ100,UZJ100..VX199801-200208

12V 1.5W

81870DLAMP ASSY, KEY CYLINDER

main81870-33050iHDJ100,UZJ100..VX199801-200208

sub81870-33030

81870EBULB, KEY CYLINDER LAMP

main90981-11014iHDJ100,UZJ100..VX199801-200208

14V 1.4W

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10070iHDJ100,UZJ100..VX199801-200208

9016745012

main90167-45012

9331915012

main93319-15012

9354014010

main93540-14010

9356013010

main93560-13010

38 parts on this diagram · 2 diagrams in section
