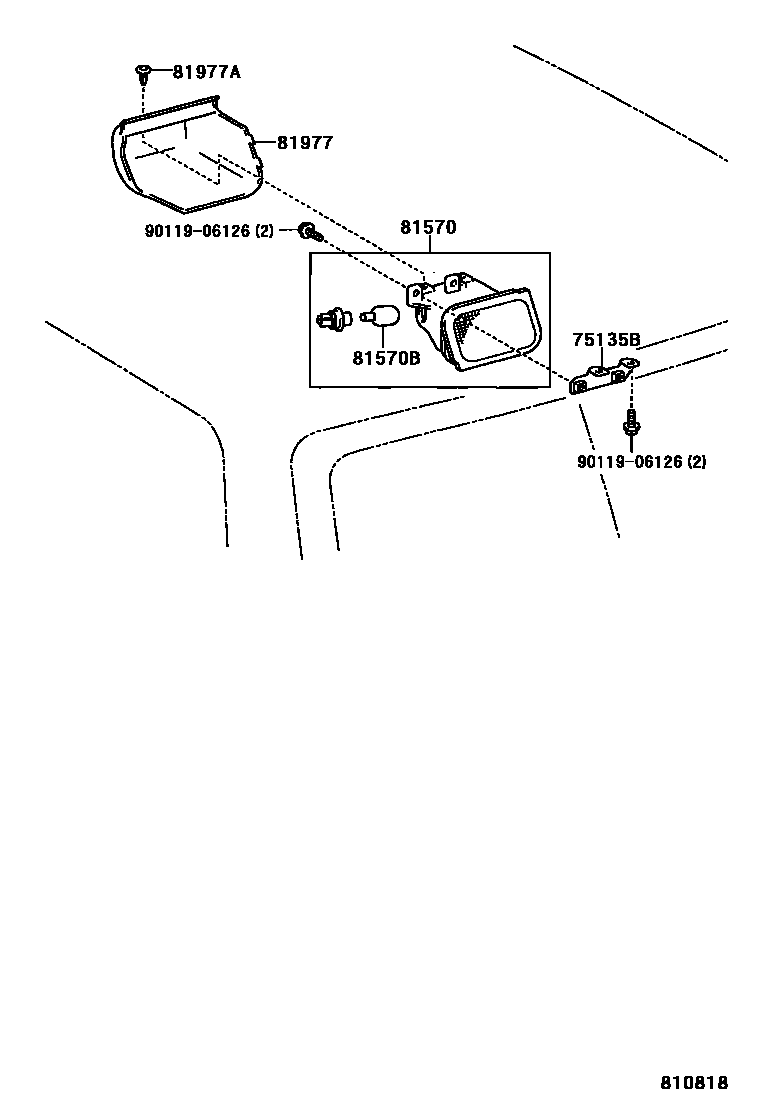

CENTER STOP LAMP

0001 1 0002 1

75135BBRACKET, CENTER STOP LAMP

main75135-60050iHDJ100..STD200201-200505

81570LAMP ASSY, CENTER STOP

main81570-60060iHDJ100,UZJ100199801-200609

sub81570-60061

main81570-60061iHDJ100,UZJ100200610-200708

sub81570-60062

main81570-60070iHDJ100..STD200201-200505

81570BBULB (FOR CENTER STOP LAMP)

main90981-13043iHDJ100..STD200201-200505

12V 21W

81977COVER, CENTER STOP LAMP

main81977-60050-B0iHDJ100..STD200201-200208

MD.GRAY,TRIM1#

main81977-60050-B1iHDJ100..STD200208-200505

STONE,TRIM1#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-06141iHDJ100..STD200201-200505

9011906126

main90119-06126

6 parts on this diagram · 2 diagrams in section
