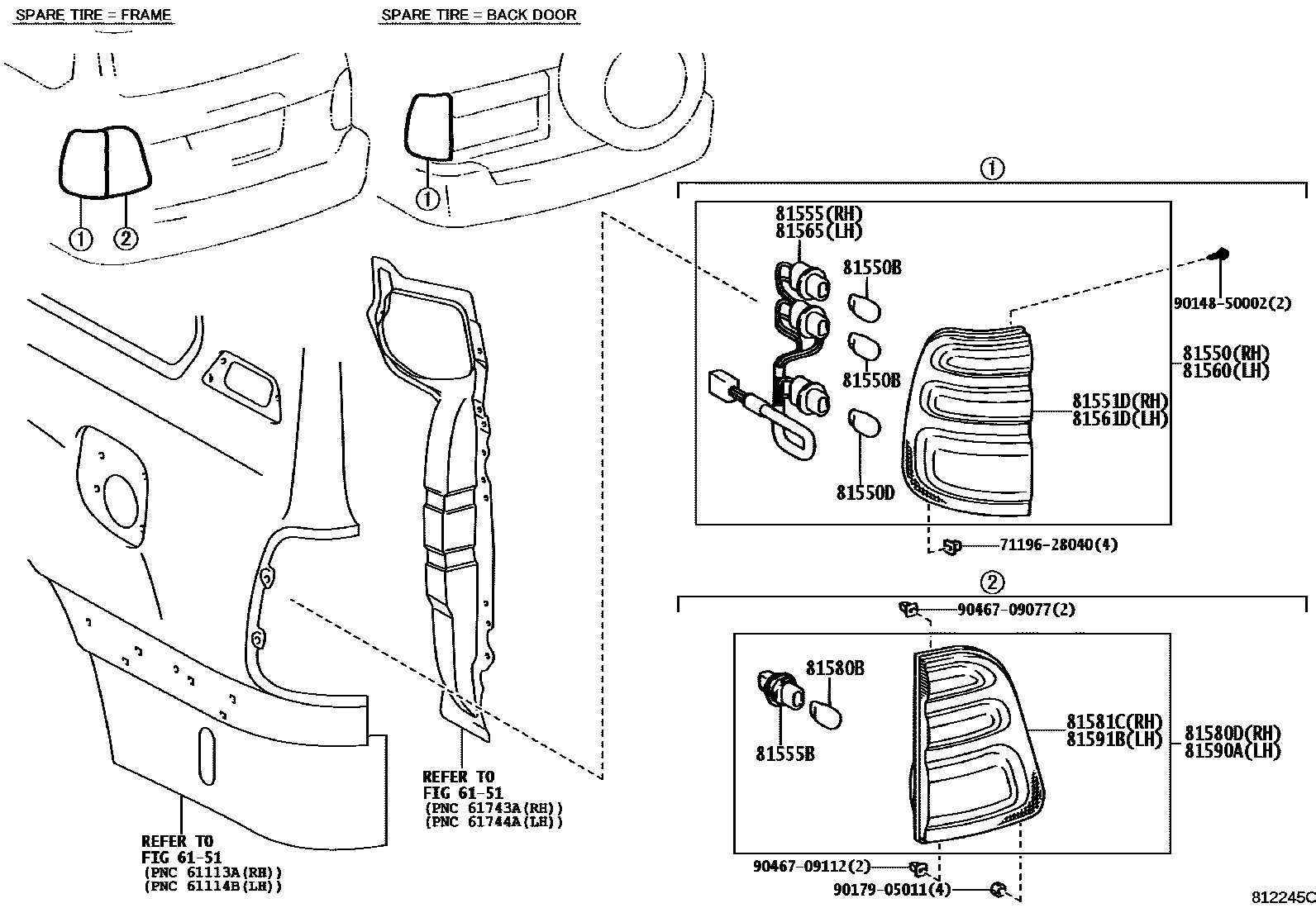

REAR COMBINATION LAMP

0001 1 0002 1

6151

81550LAMP ASSY, REAR COMBINATION, RH

main81550-60560iHDJ100,UZJ100199801-200208

main81550-60680iHDJ100,UZJ100200208-200505

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13043×4iHDJ100,UZJ100199801-200208

12V 21W

main90981-15011×2iHDJ100,UZJ100200208-200505

12V 21W,AMBER

81550DBULB(FOR REAR COMBINATION LAMP)

main90981-13044×2iHDJ100,UZJ100199801-200208

12V 21/5W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-60560iHDJ100,UZJ100199801-200208

main81551-60680iHDJ100,UZJ100200208-200505

main81551-60750iHDJ100,UZJ100200505-200610

main81551-60751iHDJ100,UZJ100200610

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-60560iHDJ100,UZJ100199801-200208

main81555-60680iHDJ100,UZJ100200208-200505

main81555-60750iHDJ100,UZJ100200505

81555BSOCKET PLUG, NO.1

main90075-60003×2iHDJ100,UZJ100..VX199801-200208

81560LAMP ASSY, REAR COMBINATION, LH

main81560-60480iHDJ100,UZJ100199801-200208

main81560-60600iHDJ100,UZJ100200208-200505

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-60480iHDJ100,UZJ100199801-200208

main81561-60600iHDJ100,UZJ100200208-200505

main81561-60670iHDJ100,UZJ100200505-200610

main81561-60671iHDJ100,UZJ100200610

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-60560iHDJ100,UZJ100199801-200208

main81555-60680iHDJ100,UZJ100200208-200505

main81555-60750iHDJ100,UZJ100200505

81580BBULB (FOR REAR LAMP)

main90981-13043×2iHDJ100,UZJ100..VX199801-200208

12V 21W

81580DLAMP ASSY, REAR, RH

main81580-60030iHDJ100,UZJ100..VX199801-200208

main81580-60070iHDJ100,UZJ100..VX200208-200505

81581CLENS AND BODY, REAR LAMP, RH

main81581-60030iHDJ100,UZJ100..VX199801-200208

main81581-60070iHDJ100,UZJ100..VX200208-200505

main81581-60140iHDJ100,UZJ100200505-200610

main81581-60141iHDJ100,UZJ100200610

81590ALAMP ASSY, REAR, LH

main81590-60060iHDJ100,UZJ100..VX199801-200208

main81590-60100iHDJ100,UZJ100..VX200208-200505

81591BLENS AND BODY, REAR LAMP, LH

main81591-60060iHDJ100,UZJ100..VX199801-200208

main81591-60100iHDJ100,UZJ100..VX200208-200505

main81591-60170iHDJ100,UZJ100200505-200610

main81591-60171iHDJ100,UZJ100200610

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9014850002

main90148-50002

9017905011

main90179-05011

9046709077

main90467-09077

9046709112

main90467-09112

20 parts on this diagram · 2 diagrams in section
