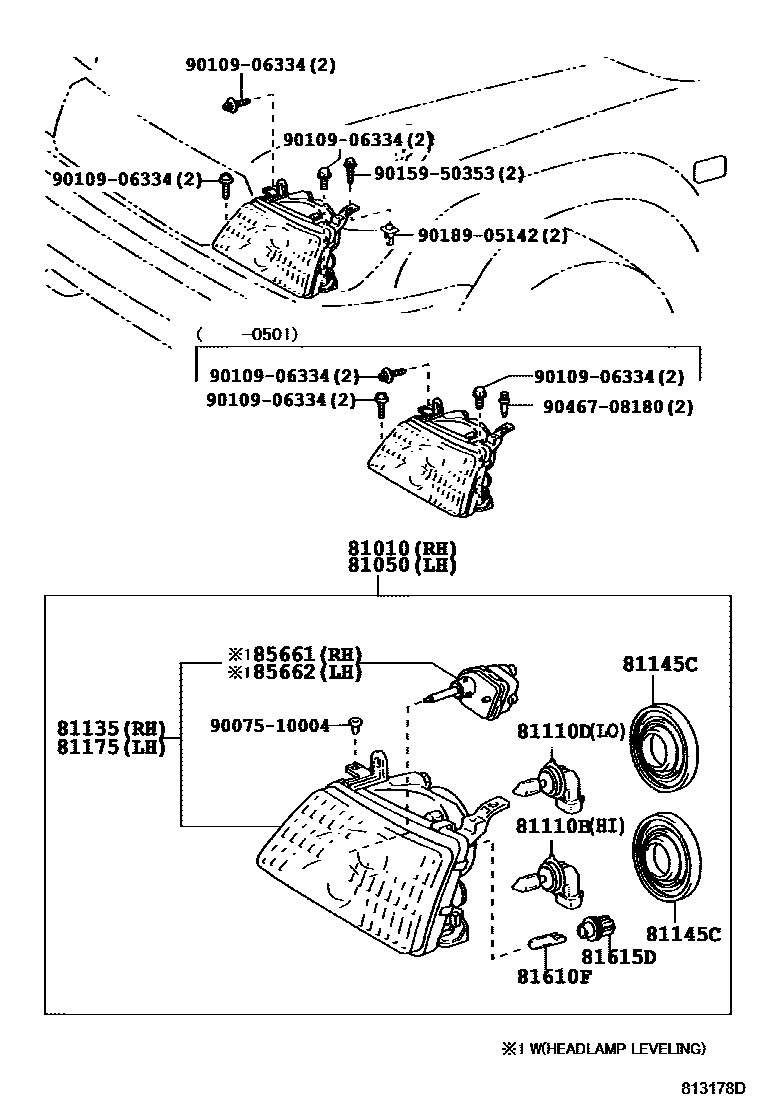

HEADLAMP

0001 1 0002 1

81010HEADLAMP ASSY, W/CLEARANCE, RH

main81010-60030iHDJ100,UZJ100..RHD199801-200308

sub81010-60031

main81010-60031iHDJ100,UZJ100..RHD200308-200505

sub81010-60032

main81010-60040iHDJ100,UZJ100..LHD..VX199801-200308

sub81010-60041

main81010-60041iHDJ100,UZJ100..LHD..VX200308-200505

sub81010-60042

main81010-60050iHDJ100,UZJ100..RHD199801-200308

W(HEADLAMP LEVELING)

sub81010-60051

main81010-60051iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING)

sub81010-60052

main81010-60060iHDJ100,UZJ100..RHD199801-200308

W(HEADLAMP LEVELING)

sub81010-60061

main81010-60060iHDJ100,UZJ100..RHD199801-200308

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81010-60061

main81010-60061iHDJ100,UZJ100..LHD200308-200505

W(HEADLAMP LEVELING)

sub81010-60062

main81010-60061iHDJ100,UZJ100..LHD200308-200505

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81010-60062

81050HEADLAMP ASSY, W/CLEARANCE, LH

main81050-60030iHDJ100,UZJ100..RHD199801-200308

sub81050-60031

main81050-60031iHDJ100,UZJ100..RHD200308-200505

sub81050-60032

main81050-60040iHDJ100,UZJ100..LHD..VX199801-200308

sub81050-60041

main81050-60041iHDJ100,UZJ100..LHD..VX200308-200505

sub81050-60042

main81050-60050iHDJ100,UZJ100..RHD199801-200308

W(HEADLAMP LEVELING)

sub81050-60051

main81050-60051iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING)

sub81050-60052

main81050-60060iHDJ100,UZJ100..RHD199801-200308

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81050-60061

main81050-60060iHDJ100,UZJ100..LHD199801-200308

W(HEADLAMP LEVELING)

sub81050-60061

main81050-60061iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81050-60062

main81050-60061iHDJ100,UZJ100..LHD200308-200505

W(HEADLAMP LEVELING)

sub81050-60062

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iHDJ100,UZJ100..LHD200505-200607

12V 65W

sub90981-13046

main90981-13046iHDJ100,UZJ100199801-200505

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13047iHDJ100,UZJ100199801-200708

12V 51W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81019-60030iHDJ100,UZJ100..RHD..(5F,5FC)199801-200308

sub81019-60031

main81019-60031iHDJ100,UZJ100..RHD200308-200505

sub81019-60032

main81019-60040iHDJ100..LHD..4FC199801-200308

sub81019-60041

main81019-60041iHDJ100,UZJ100..LHD..VX200308-200505

sub81019-60042

main81019-60050iHDJ100..RHD..4FC199801-200308

W(HEADLAMP LEVELING)

sub81019-60051

main81019-60051iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING)

sub81019-60052

main81019-60060iHDJ100,UZJ100..LHD..(5F,5FC)199801-200308

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81019-60061

main81019-60060iHDJ100,UZJ100..LHD199801-200308

W(HEADLAMP LEVELING)

sub81019-60061

main81019-60061iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING)

sub81019-60062

main81019-60061iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81019-60062

main81130-60A80iHDJ100,UZJ100..RHD200505-200607

sub81130-60A81

main81130-60A81iHDJ100,UZJ100..RHD200608

main81130-60A90iHDJ100,UZJ100..LHD200505-200608

sub81130-60A91

main81130-60A91iHDJ100,UZJ100..LHD200608-200609

sub81130-60A92

main81130-60A92iHDJ100,UZJ100..LHD200609

main81130-60B00iHDJ100,UZJ100..RHD200505-200607

W(HEADLAMP LEVELING)

sub81130-60B01

main81130-60B01iHDJ100,UZJ100..RHD200608

W(HEADLAMP LEVELING)

main81130-60B10iHDJ100,UZJ100..LHD200505-200607

W(HEADLAMP LEVELING)

sub81130-60B11

main81130-60B10iHDJ100,UZJ100..LHD200505-200607

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81130-60B11

main81130-60B11iHDJ100,UZJ100200608

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

81145CCOVER, HEADLAMP SOCKET, NO.2

main90075-65006iHDJ100,UZJ100199801-200505

81175UNIT ASSY, HEADLAMP, LH

main81059-60030iHDJ100,UZJ100..RHD199801-200308

sub81059-60031

main81059-60031iHDJ100,UZJ100..RHD200308-200505

sub81059-60032

main81059-60040iHDJ100,UZJ100..LHD..(5F,5FC)..VX199801-200308

sub81059-60041

main81059-60041iHDJ100,UZJ100..LHD..VX200308-200505

sub81059-60042

main81059-60050iHDJ100,UZJ100..RHD..(5F,5FC)199801-200308

W(HEADLAMP LEVELING)

sub81059-60051

main81059-60051iHDJ100,UZJ100..RHD200308-200505

W(HEADLAMP LEVELING)

sub81059-60052

main81059-60060iHDJ100,UZJ100..LHD..(5F,5FC)199801-200308

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81059-60061

main81059-60060iHDJ100..RHD..4FC199801-200308

W(HEADLAMP LEVELING)

sub81059-60061

main81059-60061iHDJ100,UZJ100..LHD200308-200505

W(HEADLAMP LEVELING)

sub81059-60062

main81059-60061iHDJ100,UZJ100..LHD200308-200505

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81059-60062

main81170-60A70iHDJ100,UZJ100..RHD200505-200607

sub81170-60A71

main81170-60A71iHDJ100,UZJ100..RHD200608

main81170-60A80iHDJ100,UZJ100..LHD200505-200608

sub81170-60A81

main81170-60A81iHDJ100,UZJ100..LHD200608-200609

sub81170-60A82

main81170-60A82iHDJ100,UZJ100..LHD200609

main81170-60A90iHDJ100,UZJ100..RHD200505-200607

W(HEADLAMP LEVELING)

sub81170-60A91

main81170-60A91iHDJ100,UZJ100..RHD200608

W(HEADLAMP LEVELING)

main81170-60B00iHDJ100,UZJ100..LHD200505-200607

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

sub81170-60B01

main81170-60B00iHDJ100,UZJ100..RHD200505-200607

W(HEADLAMP LEVELING)

sub81170-60B01

main81170-60B01iHDJ100,UZJ100200608

W(HEADLAMP LEVELING) & RH TRAFFIC SPEC

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iHDJ100,UZJ100199801-200607

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004iHDJ100,UZJ100..5F,5FC199801-200505

main90075-60077iHDJ100,UZJ100200505

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iHDJ100,UZJ100200505-200708

main85661-22010iHDJ100,UZJ100..5F,5FC199801-200505

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iHDJ100,UZJ100200505-200708

main85661-22010iHDJ100,UZJ100199801-200505

9007510004

main90075-10004

9010906334

main90109-06334

9015950353

main90159-50353

9018905142

main90189-05142

9046708180

main90467-08180

16 parts on this diagram · 2 diagrams in section
