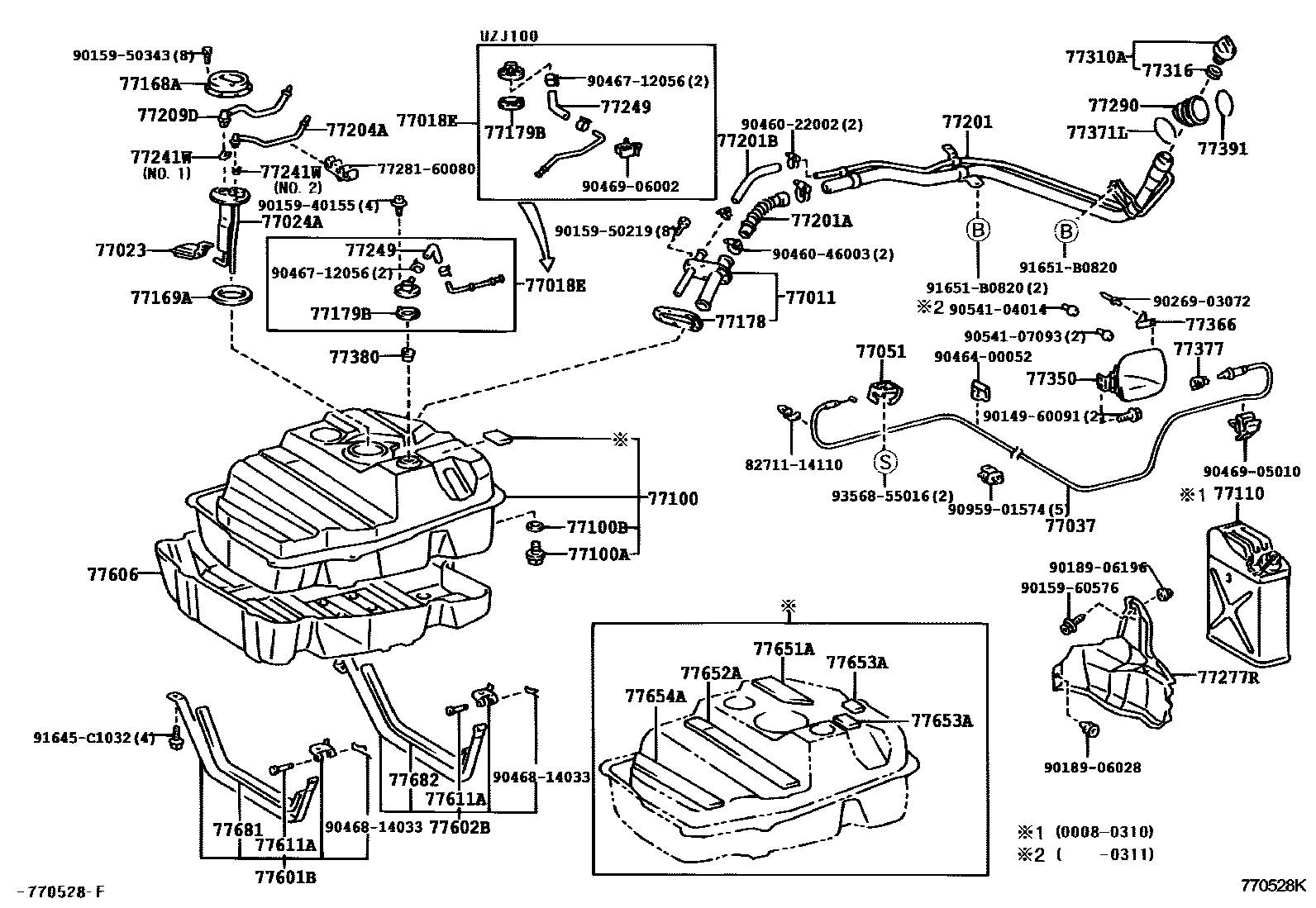

FUEL TANK & TUBE
77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77023FILTER SUB-ASSY, FUEL SUCTION TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77051LEVER SUB-ASSY, FUEL LID OPEN
77100TANK ASSY, FUEL
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77110TANK ASSY, AUXILIARY FUEL
W(AUXILIARY FUEL TANK X2)
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77201AHOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77201BHOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
L=280
L=280
77204ATUBE, FUEL TANK RETURN
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77241WCLIP, TUBE JOINT
NO.1
NO.2
77249HOSE, FUEL EMISSION
77277RPROTECTOR, FUEL TANK FILLER PIPE
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77371LRING, FUEL TANK FILLER PIPE SHIELD
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
EUROPE UP GRADE PACKAGE
77611APIN (FOR FUEL TANK BAND)
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
7728160080BRACKET, FUEL MAIN TUBE, NO.1
8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9014960091
9015940155
9015950219
9015950343
9015960576
9018906028
9018906196
9026903072
9046022002
9046046003
9046400052
9046712056
9046814033
9046905010
9046906002
9054104014
9054107093
9095901574
91645C1032
91651B0820
9356855016
64 parts on this diagram · 5 diagrams in section
