E
EPC Data

BODY STRIPE

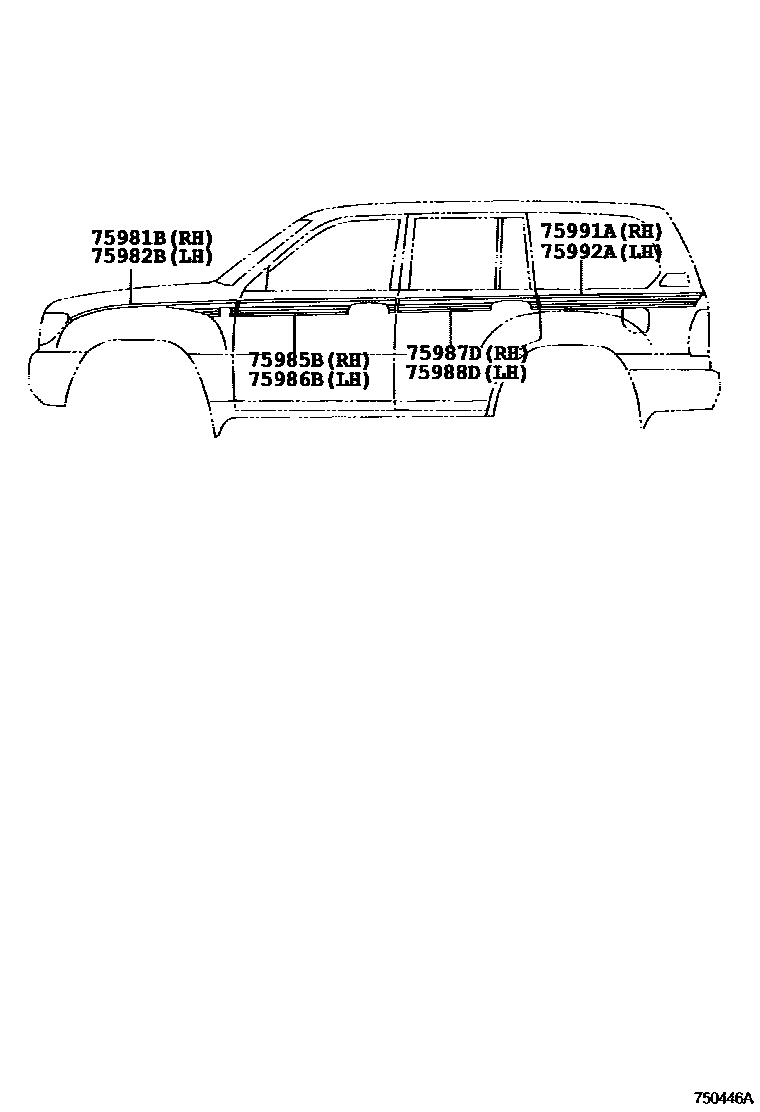

Parts diagram
75981BSTRIPE, FENDER, RH
main75981-60450i199801-199907
sub75981-60460
main75981-60550i199907-200008
sub75981-60560
main75981-60580i200008-200108
main75981-60590i200008-200108
main75981-60650i200108-200208
main75981-60660i200108-200208
sub75981-60670
main75981-60710i200208-200308
main75981-60720i200208-200308
sub75981-60730
main75981-60790i200308-200408
main75981-60800i200308-200407
sub75981-60810
main75981-60820i200408-200505
main75981-60830i200408-200505
main75981-60880i200505-200607
main75981-60A50i200607
75982BSTRIPE, FENDER, LH
main75982-60450i199801-199907
sub75982-60460
main75982-60550i199907-200008
sub75982-60560
main75982-60580i200008-200108
main75982-60590i200008-200108
main75982-60650i200108-200208
main75982-60660i200108-200208
sub75982-60670
main75982-60700i200208-200308
main75982-60710i200208-200308
main75982-60780i200308-200408
main75982-60790i200308-200407
sub75982-60800
main75982-60810i200408-200505
main75982-60820i200408-200505
main75982-60870i200505-200607
main75982-60A40i200607
75985BSTRIPE, FRONT DOOR, NO.3 RH
main75985-60370i199801-199907
main75985-60440i199907-200008
main75985-60470i200008-200108
main75985-60480i200008-200108
main75985-60510i200108-200208
main75985-60520i200108-200208
main75985-60580i200208-200308
main75985-60590i200208-200308
main75985-60640i200308-200408
main75985-60650i200308-200407
main75985-60660i200408-200505
main75985-60670i200408-200505
main75985-60700i200505-200607
main75985-60730i200607
75986BSTRIPE, FRONT DOOR, NO.3 LH
main75986-60300i199801-199907
main75986-60440i199907-200008
main75986-60470i200008-200108
main75986-60480i200008-200108
main75986-60510i200108-200208
main75986-60520i200108-200208
main75986-60580i200208-200308
main75986-60590i200208-200308
main75986-60640i200308-200408
main75986-60650i200308-200407
main75986-60660i200408-200505
main75986-60670i200408-200505
main75986-60700i200505-200607
main75986-60730i200607
75987DSTRIPE, REAR DOOR, OUTSIDE, RH
main75987-60320i199801-199907
main75987-60340i199907-200008
main75987-60350i200008-200108
main75987-60360i200008-200108
main75987-60370i200108-200208
main75987-60380i200108-200208
main75987-60410i200208-200308
main75987-60420i200208-200308
main75987-60460i200308-200408
main75987-60470i200308-200407
main75987-60480i200408-200505
main75987-60490i200408-200505
main75987-60510i200505-200607
main75987-60530i200607
75988DSTRIPE, REAR DOOR OUTSIDE, LH
main75988-60380i199801-199907
main75988-60420i199907-200008
main75988-60430i200008-200108
main75988-60440i200008-200108
main75988-60470i200108-200208
main75988-60480i200108-200208
main75988-60520i200208-200308
main75988-60530i200208-200308
main75988-60580i200308-200408
main75988-60590i200308-200407
main75988-60600i200408-200505
main75988-60610i200408-200505
main75988-60640i200505-200607
main75988-60670i200607
75991ASTRIPE, QUARTER, RH
main75991-60660i199801-199907
main75991-60830i199907-200008
main75991-60890i200008-200108
main75991-60A00i200308-200408
main75991-60A10i200308-200407
main75991-60A40i200408-200505
main75991-60A60i200408-200505
main75991-60B20i200505-200607
main75991-60C20i200607
main75991-6A010i200008-200108
main75991-6A080i200108-200208
main75991-6A090i200108-200208
main75991-6A180i200208-200308
main75991-6A190i200208-200308
75992ASTRIPE, QUARTER, LH
main75992-60660i199801-199907
main75992-60830i199907-200008
main75992-60890i200008-200108
main75992-60A00i200308-200408
main75992-60A10i200308-200407
main75992-60A40i200408-200505
main75992-60A60i200408-200505
main75992-60B20i200505-200607
main75992-60C20i200607
main75992-6A010i200008-200108
main75992-6A080i200108-200208
main75992-6A090i200108-200208
main75992-6A190i200208-200308
main75992-6A200i200208-200308

8 parts on this diagram · 8 diagrams in section
