EPC Data

MOULDING

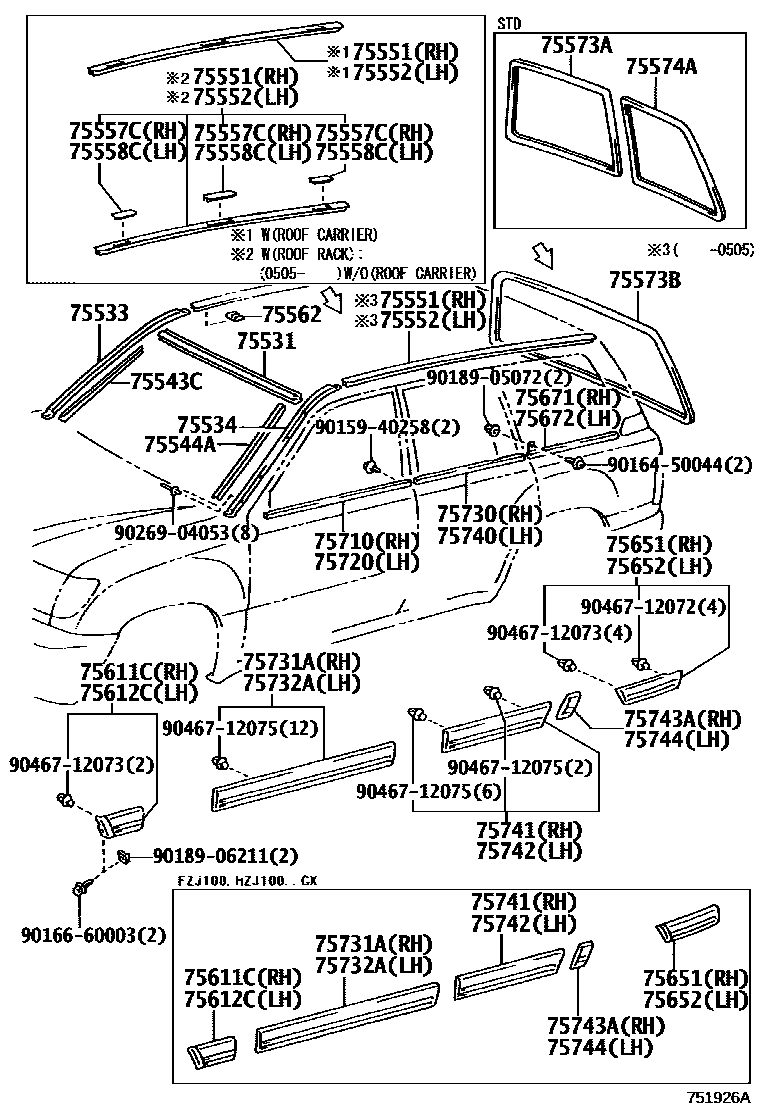

Parts diagram
75531MOULDING, WINDSHIELD, OUTER UPPER
main75531-60020i199801-199912
sub75531-60030
main75531-60030i199912-200505
75533MOULDING, WINDSHIELD, OUTSIDE RH
main75533-60030i199801-200402
sub75533-60031
main75533-60031i200402-200505
75534MOULDING, WINDSHIELD, OUTSIDE LH
main75534-60020i199801-200402
sub75534-60021
main75534-60021i200402-200505
75543CMOULDING, WINDSHIELD, OUTSIDE NO.2 RH
main75543-60020i199801-200708
75544AMOULDING, WINDSHIELD, OUTSIDE NO.2 LH
main75543-60020i199801-200708
75551MOULDING, ROOF DRIP SIDE FINISH, RH
main75505-60030i200505-200703
W(ROOF RACK);W/O(ROOF CARRIER)
sub75505-60031
main75505-60030i199801-200505
W(ROOF RACK)
sub75505-60031
main75505-60031i200704
W(ROOF RACK);W/O(ROOF CARRIER)
main75551-60060i200008-200505
main75551-60070i199801-200208
W(ROOF CARRIER)
main75551-60100i200208-200704
W(ROOF CARRIER)
sub75551-60101
main75551-60101i200705
W(ROOF CARRIER)
75552MOULDING, ROOF DRIP SIDE FINISH, LH
main75506-60030i199801-200505
W(ROOF RACK)
sub75506-60031
main75506-60030i200505-200703
W(ROOF RACK);W/O(ROOF CARRIER)
sub75506-60031
main75506-60031i200704
W(ROOF RACK);W/O(ROOF CARRIER)
main75552-60060i200008-200505
main75552-60070i199801-200208
W(ROOF CARRIER)
main75552-60100i200208-200704
W(ROOF CARRIER)
sub75552-60101
main75552-60101i200705
W(ROOF CARRIER)
75557CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 RH
main75557-60010i199801-200703
FRONT & REAR
main75557-60020i199801-200703
CENTER
75558CMOULDING, ROOF DRIP SIDE FINISH, CENTER NO.2 LH
main75557-60010i199801-200703
FRONT & REAR
main75557-60020i199801-200703
CENTER
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
main75562-60020i199801-200505
75573AMOULDING, BACK WINDOW, OUTSIDE RH
main75573-60020i200008-200505
75573BMOULDING, BACK WINDOW, OUTSIDE
main75573-60030i199801-200505
75574AMOULDING, BACK WINDOW, OUTSIDE LH
main75574-60010i200008-200505
75611CMOULDING, FRONT FENDER, OUTSIDE RH
main75611-60120-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75611-60120
main75611-60120-B1i200505-200708
GRAY ME.,8R3
sub75611-60120
main75611-60120-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75611-60120
main75611-60120-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75611-60120
main75611-60120-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75611-60120
main75611-60120-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75611-60120
main75611-60120-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75611-60120
main75611-60120-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75611-60120
main75611-60120-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75611-60120
main75611-60120-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75611-60120
main75611-60120-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75611-60120
main75611-60120-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75611-60120
75612CMOULDING, FRONT FENDER, OUTSIDE LH
main75612-60120-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75612-60120
main75612-60120-B1i200505-200708
GRAY ME.,8R3
sub75612-60120
main75612-60120-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75612-60120
main75612-60120-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75612-60120
main75612-60120-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75612-60120
main75612-60120-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75612-60120
main75612-60120-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75612-60120
main75612-60120-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75612-60120
main75612-60120-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75612-60120
main75612-60120-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75612-60120
main75612-60120-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75612-60120
main75612-60120-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75612-60120
75651MOULDING, QUARTER, OUTSIDE RH
main75651-60180-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75651-60180
main75651-60180-B1i200505-200708
GRAY ME.,8R3
sub75651-60180
main75651-60180-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75651-60180
main75651-60180-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75651-60180
main75651-60180-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75651-60180
main75651-60180-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75651-60180
main75651-60180-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75651-60180
main75651-60180-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75651-60180
main75651-60180-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75651-60180
main75651-60180-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75651-60180
main75651-60180-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75651-60180
main75651-60180-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75651-60180
75652MOULDING, QUARTER, OUTSIDE LH
main75652-60170-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75652-60170
main75652-60170-B1i200505-200708
GRAY ME.,8R3
sub75652-60170
main75652-60170-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75652-60170
main75652-60170-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75652-60170
main75652-60170-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75652-60170
main75652-60170-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75652-60170
main75652-60170-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75652-60170
main75652-60170-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75652-60170
main75652-60170-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75652-60170
main75652-60170-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75652-60170
main75652-60170-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75652-60170
main75652-60170-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75652-60170
75671MOULDING, QUARTER BELT, RH
main75660-60030i200001-200308
SILVER
main75660-60040i199801-200505
BLACK
main75660-60040i200505
75672MOULDING, QUARTER BELT, LH
main75670-60030i200001-200308
SILVER
main75670-60040i199801-200505
BLACK
main75670-60040i200505
75710MOULDING ASSY, FRONT DOOR BELT, RH
main75710-60050i200001-200308
SILVER
sub75710-60051
main75710-60060i199801-200312
BLACK
sub75710-60061
main75710-60061i200401-200505
75720MOULDING ASSY, FRONT DOOR BELT, LH
main75720-60050i200001-200308
SILVER
sub75720-60051
main75720-60060i199801-200312
BLACK
sub75720-60061
main75720-60061i200401-200505
75730MOULDING ASSY, REAR DOOR BELT, RH
main75730-60030i200001-200308
SILVER
sub75730-60031
main75730-60040i199801-200312
BLACK
sub75730-60041
main75730-60041i200401-200505
75731AMOULDING, FRONT DOOR, OUTSIDE RH
main75731-60120-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75731-60120
main75731-60120-B1i200505-200708
GRAY ME.,8R3
sub75731-60120
main75731-60120-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75731-60120
main75731-60120-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75731-60120
main75731-60120-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75731-60120
main75731-60120-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75731-60120
main75731-60120-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75731-60120
main75731-60120-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75731-60120
main75731-60120-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75731-60120
main75731-60120-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75731-60120
main75731-60120-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75731-60120
main75731-60120-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75731-60120
75732AMOULDING, FRONT DOOR, OUTSIDE LH
main75732-60120-B1i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75732-60120
main75732-60120-B2i200505-200708
GRAY ME.,8R3
sub75732-60120
main75732-60120-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75732-60120
main75732-60120-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75732-60120
main75732-60120-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75732-60120
main75732-60120-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75732-60120
main75732-60120-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75732-60120
main75732-60120-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75732-60120
main75732-60120-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75732-60120
main75732-60120-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75732-60120
main75732-60120-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75732-60120
main75732-60120-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75732-60120
75740MOULDING ASSY, REAR DOOR BELT, LH
main75740-60030i200001-200308
SILVER
sub75740-60031
main75740-60040i199801-200312
BLACK
sub75740-60041
main75740-60041i200401-200505
75741MOULDING, REAR DOOR, OUTSIDE RH
main75741-60160-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75741-60160
main75741-60160-B1i200505-200708
GRAY ME.,8R3
sub75741-60160
main75741-60160-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75741-60160
main75741-60160-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75741-60160
main75741-60160-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75741-60160
main75741-60160-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75741-60160
main75741-60160-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75741-60160
main75741-60160-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75741-60160
main75741-60160-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75741-60160
main75741-60160-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75741-60160
main75741-60160-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75741-60160
main75741-60160-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75741-60160
75742MOULDING, REAR DOOR, OUTSIDE LH
main75742-60160-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75742-60160
main75742-60160-B1i200505-200708
GRAY ME.,8R3
sub75742-60160
main75742-60160-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75742-60160
main75742-60160-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75742-60160
main75742-60160-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75742-60160
main75742-60160-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75742-60160
main75742-60160-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75742-60160
main75742-60160-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75742-60160
main75742-60160-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75742-60160
main75742-60160-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75742-60160
main75742-60160-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75742-60160
main75742-60160-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75742-60160
75743AMOULDING, REAR DOOR, OUTSIDE UPPER REAR RH
main75743-60010-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75743-60010
main75743-60010-B1i200505-200708
GRAY ME.,8R3
sub75743-60010
main75743-60010-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75743-60010
main75743-60010-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75743-60010
main75743-60010-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75743-60010
main75743-60010-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75743-60010
main75743-60010-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75743-60010
main75743-60010-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75743-60010
main75743-60010-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75743-60010
main75743-60010-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75743-60010
main75743-60010-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75743-60010
main75743-60010-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75743-60010
75744MOULDING, REAR DOOR, OUTSIDE UPPER REAR LH
main75744-60010-B0i200505-200708
GRAY ME.,056 ,1F7 ,4R3
sub75744-60010
main75744-60010-B1i200505-200708
GRAY ME.,8R3
sub75744-60010
main75744-60010-D0i200505-200708
DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4
sub75744-60010
main75744-60010-D0i200208-200505
DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4
sub75744-60010
main75744-60010-E0i199801-199909
LT. GRAYISH BEIGE ME,056 ,1B1
sub75744-60010
main75744-60010-E1i199909-200505
LT.GRAYISH BEIGE ME.,056 ,1B1
sub75744-60010
main75744-60010-H0i199801-199909
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75744-60010
main75744-60010-H1i199801-199909
DK. TAUPE ME.,3N2 ,4P3
sub75744-60010
main75744-60010-H2i200008-200208
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4
sub75744-60010
main75744-60010-H2i200008-200108
MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4
sub75744-60010
main75744-60010-H2i199909-200008
MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4
sub75744-60010
main75744-60010-H3i199909-200008
DK.TAUPE ME.,3N2 ,4P3
sub75744-60010
9015940258
main90159-40258
9016450044
main90164-50044
9016660003
main90166-60003
9018905072
main90189-05072
9018906211
main90189-06211
9026904053
main90269-04053
9046712072
main90467-12072
9046712073
main90467-12073
9046712075
main90467-12075

38 parts on this diagram · 1 diagram in section

MOULDING — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
