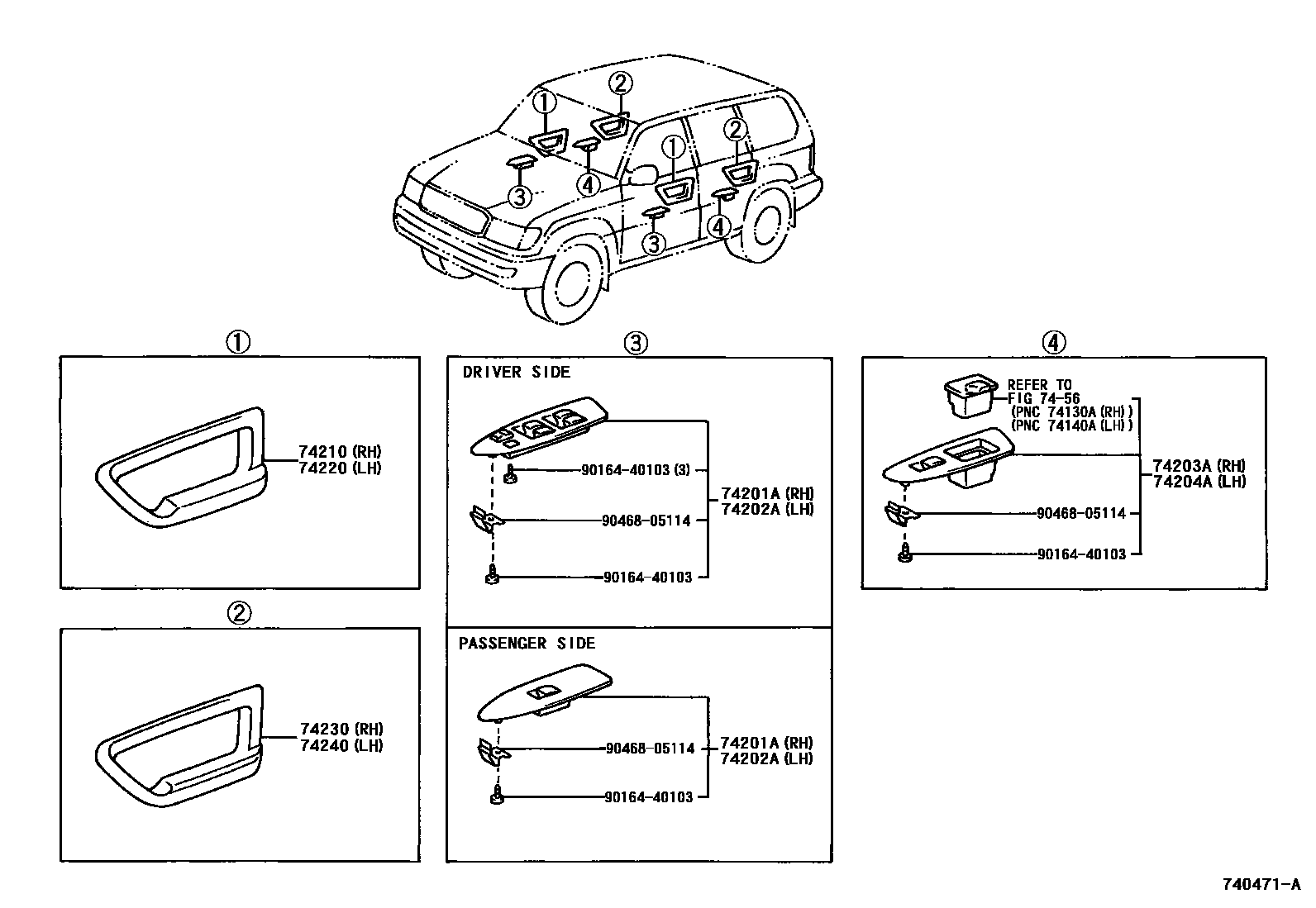

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74201APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER RH

main74201-60260-A0iHDJ100,UZJ100..LHD199801-200008

IVORY,TRIM4#

main74201-60260-B0iHDJ100,UZJ100..LHD199801-200008

MD.GRAY,TRIM1#

main74201-60280iHDJ100,UZJ100..RHD199801-200008

WOOD GRAIN

main74201-60290iHDJ100,UZJ100..RHD200008-200208

WOOD GRAIN

main74201-60300iHDJ100,UZJ100..LHD199801-200008

WOOD GRAIN

main74201-60310iHDJ100,UZJ100..LHD..VX200010-200108

50TH ANNIVERSARY

main74201-60340iHDJ100,UZJ100..RHD..4FC200010-200108

50TH ANNIVERSARY

main74201-60350iHDJ100,UZJ100..LHD..VX200008-200208

WOOD GRAIN

main74201-60370-A0iHDJ100,UZJ100..LHD..VX200008-200208

IVORY,TRIM4#

main74201-60370-B0iHDJ100,UZJ100..LHD200008-200208

MD.GRAY,TRIM1#

main74231-60221-A1iHDJ100,UZJ100..LHD..(5F,5FC)..VX200208-200505

IVORY,TRIM0#

main74231-60221-B1iHDJ100,UZJ100..LHD200505-200708

STONE,TRIM1#

main74231-60251iHDJ100..LHD..4FC200208-200307

WOOD GRAIN

main74231-60301iHDJ100,UZJ100..RHD..(5F,5FC)200208-200505

WOOD GRAIN

74202APANEL SUB-ASSY, FRONT ARMREST BASE, UPPER LH

main74202-60170-A0iHDJ100,UZJ100..LHD199801-200008

IVORY,TRIM4#

main74202-60170-B0iHDJ100,UZJ100..LHD199801-200008

MD.GRAY,TRIM1#

main74202-60180iHDJ100,UZJ100..RHD199801-200008

WOOD GRAIN

main74202-60190iHDJ100,UZJ100..RHD200008-200208

WOOD GRAIN

main74202-60200iHDJ100,UZJ100..LHD199801-200008

WOOD GRAIN

main74202-60210iHDJ100,UZJ100..LHD..VX200010-200108

50TH ANNIVERSARY

main74202-60230iHDJ100,UZJ100..RHD..4FC200010-200108

50TH ANNIVERSARY

main74202-60240iHDJ100,UZJ100..LHD..VX200008-200208

WOOD GRAIN

main74202-60250-A0iHDJ100,UZJ100..LHD..VX200008-200208

IVORY,TRIM4#

main74202-60250-B0iHDJ100,UZJ100..LHD200008-200208

MD.GRAY,TRIM1#

main74232-60311iHDJ100,UZJ100..LHD..(5F,5FC)..VX200208-200505

WOOD GRAIN

main74232-60321-A1iHDJ100,UZJ100..LHD..(5F,5FC)..VX200208-200505

IVORY,TRIM0#

main74232-60321-B1iHDJ100,UZJ100..LHD200505-200708

STONE,TRIM1#

main74232-60480iHDJ100,UZJ100..RHD..(5F,5FC)200208-200505

WOOD GRAIN

74203APANEL SUB-ASSY, REAR ARMREST BASE, UPPER RH

main74203-60060-A0iHDJ100,UZJ100..LHD199801-200008

IVORY,TRIM4#

main74203-60060-B0iHDJ100,UZJ100..LHD199801-200008

MD.GRAY,TRIM1#

main74203-60070-A0iHDJ100,UZJ100..LHD..VX200008-200208

IVORY,TRIM4#

main74203-60070-B0iHDJ100,UZJ100..LHD200008-200208

MD.GRAY,TRIM1#

main74203-60080iHDJ100,UZJ100199801-199805

WOOD GRAIN

main74203-60081iHDJ100,UZJ100199805-200008

WOOD GRAIN

main74203-60091iHDJ100,UZJ100..VX200008-200208

WOOD GRAIN

main74203-60100iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY

main74271-60061-A1iHDJ100..LHD..4FC200208-200307

IVORY,TRIM0#

main74271-60061-B1iHDJ100,UZJ100..LHD200505-200708

STONE,TRIM1#

main74271-60071iHDJ100,UZJ100..(5F,5FC)..VX200208-200505

WOOD GRAIN

74204APANEL SUB-ASSY, REAR ARMREST BASE, UPPER LH

main74204-60060-A0iHDJ100,UZJ100..LHD199801-200008

IVORY,TRIM4#

main74204-60060-B0iHDJ100,UZJ100..LHD199801-200008

MD.GRAY,TRIM1#

main74204-60070-A0iHDJ100,UZJ100..LHD..VX200008-200208

IVORY,TRIM4#

main74204-60070-B0iHDJ100,UZJ100..LHD200008-200208

MD.GRAY,TRIM1#

main74204-60080iHDJ100,UZJ100199801-199805

WOOD GRAIN

main74204-60081iHDJ100,UZJ100199805-200008

WOOD GRAIN

main74204-60091iHDJ100,UZJ100..VX200008-200208

WOOD GRAIN

main74204-60100iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY

main74272-60061-A1iHDJ100,UZJ100..LHD..(5F,5FC)..VX200208-200505

IVORY,TRIM0#

main74272-60061-B1iHDJ100..LHD..4FC200208-200307

STONE,TRIM1#

main74272-60071iHDJ100..4FC200208-200307

WOOD GRAIN

74210ARMREST ASSY, FRONT, RH

main74210-60090-B0iHDJ100,UZJ100199801-200208

SHADOW GRAY,TRIM1#

main74210-60090-B3iHDJ100,UZJ100..5F,5FC200208-200505

DK.GRAY,TRIM1#

main74210-60090-E0iHDJ100,UZJ100..VX199801-200208

OAK,TRIM40,41

main74210-60090-E2iHDJ100,UZJ100200505-200708

SANDAL WOOD,TRIM0#

main74210-60100-E0iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub74210-60102

74220ARMREST ASSY, FRONT, LH

main74220-60090-B0iHDJ100,UZJ100199801-200208

SHADOW GRAY,TRIM1#

main74220-60090-B3iHDJ100,UZJ100..5F,5FC200208-200505

DK.GRAY,TRIM1#

main74220-60090-E0iHDJ100,UZJ100..VX199801-200208

OAK,TRIM40,41

main74220-60090-E2iHDJ100..4FC200208-200307

SANDAL WOOD,TRIM0#

main74220-60100-E0iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub74220-60102

74230ARMREST ASSY, REAR, RH

main74250-60010-B0iHDJ100,UZJ100199801-200208

SHADOW GRAY,TRIM1#

main74250-60010-B3iHDJ100,UZJ100200505-200708

DK.GRAY,TRIM1#

main74250-60010-E0iHDJ100,UZJ100..VX199801-200208

OAK,TRIM40,41

main74250-60010-E2iHDJ100..4FC200208-200307

SANDAL WOOD,TRIM0#

main74250-60020-E0iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub74250-60022

74240ARMREST ASSY, REAR, LH

main74260-60010-B0iHDJ100,UZJ100199801-200208

SHADOW GRAY,TRIM1#

main74260-60010-B3iHDJ100,UZJ100200505-200708

DK.GRAY,TRIM1#

main74260-60010-E0iHDJ100,UZJ100..VX199801-200208

OAK,TRIM40,41

main74260-60010-E2iHDJ100..4FC200208-200307

SANDAL WOOD,TRIM0#

main74260-60020-E0iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub74260-60022

7456

9016440103

main90164-40103

9046805114

main90468-05114

11 parts on this diagram · 3 diagrams in section
