EPC Data

SEAT & SEAT TRACK

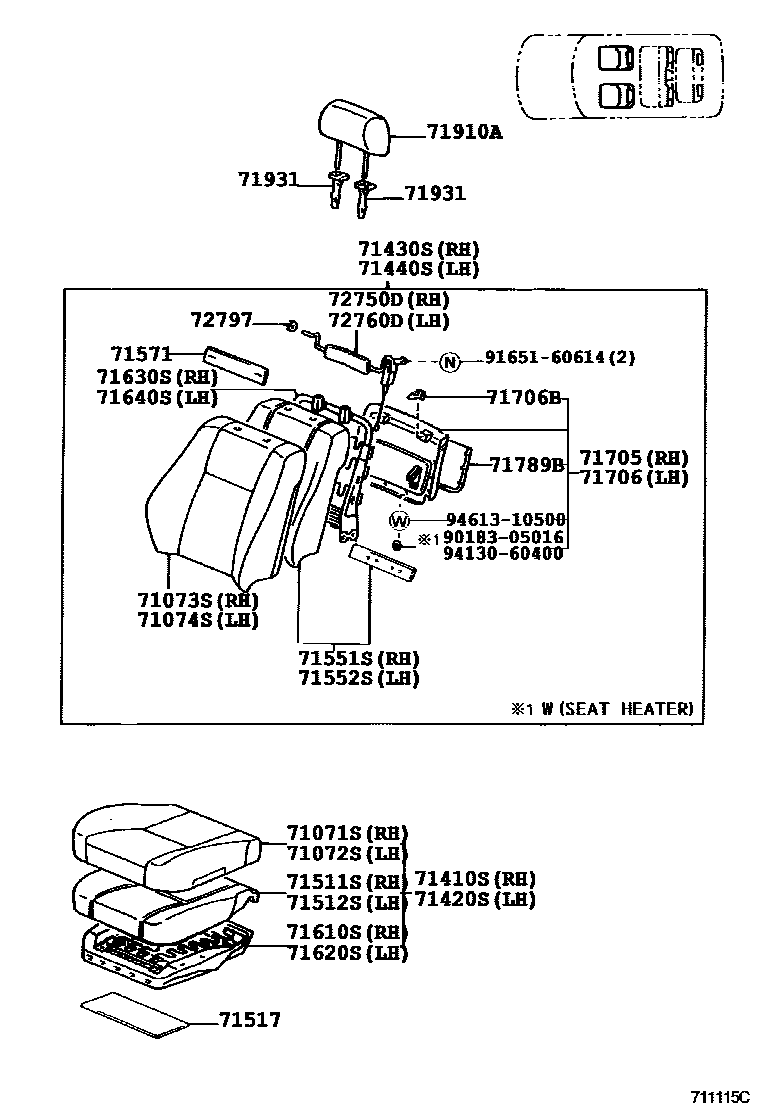

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-60810-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71071-60810¥73,500
sub71071-60812¥73,700
main71071-60820-B0i200008-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71071-60820-B2i200208-200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71071-60890-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71071-6A020-B0i200008-200208
GRAY,TRIM1#
main71071-6A030-A0i200208-200708
W(FRONT BENCH SEAT),IVORY,TRIM0#
main71071-6A030-B0i199801-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71071-6A030-B1i200208-200708
W(FRONT BENCH SEAT),STONE,TRIM1#
main71071-6A030-E0i199801-200208
W(FRONT BENCH SEAT),LT. OAK,TRIM4#
main71071-6A040-A1i200208-200708
IVORY,TRIM0#
main71071-6A040-B0i199801-200208
GRAY,TRIM1#
main71071-6A040-B1i200208-200708
STONE,TRIM1#
main71071-6A040-E0i199801-200208
LT. OAK,TRIM4#
main71071-6A050-A1i200208-200708
IVORY,TRIM0#
sub71071-6A050¥32,100
main71071-6A050-B0i199801-200208
GRAY,TRIM1#
sub71071-6A050¥32,100
main71071-6A050-B1i200208-200708
STONE,TRIM1#
sub71071-6A050¥32,100
main71071-6A050-E0i199801-200208
LT. OAK,TRIM4#
sub71071-6A050¥32,100
main71071-6A070-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71071-6A070¥73,500
main71071-6A070-A1i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
sub71071-6A070¥73,500
main71071-6A070-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
sub71071-6A070¥73,500
main71071-6A070-B1i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
sub71071-6A070¥73,500
main71071-6A300-B0i200208-200505
W(FABRIC SEAT),STONE,TRIM1#
sub71071-6A301¥22,900
main71071-6A440-B0i200208-200505
W(FABRIC SEAT & FRONT BENCH SEAT),STONE,TRIM1#
sub71071-6A441
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-60660-B0i200008-200208
GRAY,TRIM1#
main71072-60660-B2i200208-200505
STONE,TRIM1#
main71072-60670-B0i200008-200208
W(FABRIC SEAT),GRAY,TRIM1#
main71072-60680-A1i200208-200708
IVORY,TRIM0#
main71072-60680-B0i199801-200208
GRAY,TRIM1#
main71072-60680-B1i200208-200708
STONE,TRIM1#
main71072-60680-E0i199801-200208
LT. OAK,TRIM4#
main71072-60690-A1i200208-200708
IVORY,TRIM0#
main71072-60690-B0i199801-200208
GRAY,TRIM1#
main71072-60690-B1i200208-200708
STONE,TRIM1#
main71072-60690-E0i199801-200208
LT. OAK,TRIM4#
main71072-60710-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71072-60710¥73,500
main71072-60710-A1i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
sub71072-60710¥73,500
main71072-60710-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
sub71072-60710¥73,500
main71072-60710-B1i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
sub71072-60710¥73,500
main71072-60730-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71072-60730¥73,500
sub71072-60732¥73,700
main71072-60840-B0i200208-200505
W(FABRIC SEAT),STONE,TRIM1#
sub71072-60841¥22,900
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-60880-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71073-60880¥94,500
main71073-6A010-B0i200008-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71073-6A010-B2i200208-200505
W(FRONT BENCH SEAT),STONE,TRIM1#
main71073-6A020-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),GRAY,TRIM1#
main71073-6A040-B0i200008-200208
GRAY,TRIM1#
main71073-6A050-A0i200208-200708
W(FRONT BENCH SEAT),IVORY,TRIM0#
main71073-6A050-B0i199801-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
main71073-6A050-B1i200208-200708
W(FRONT BENCH SEAT),STONE,TRIM1#
main71073-6A050-E0i199801-200208
W(FRONT BENCH SEAT),LT. OAK,TRIM4#
main71073-6A060-A1i200208-200708
IVORY,TRIM0#
sub71073-6A130¥45,200
main71073-6A060-B0i199801-200208
GRAY,TRIM1#
sub71073-6A130¥45,200
main71073-6A060-B1i200208-200708
STONE,TRIM1#
sub71073-6A130¥45,200
main71073-6A060-E0i199801-200208
LT. OAK,TRIM4#
sub71073-6A130¥45,200
main71073-6A080-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71073-6A080¥94,500
main71073-6A080-A1i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
sub71073-6A080¥94,500
main71073-6A080-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
sub71073-6A080¥94,500
main71073-6A080-B1i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
sub71073-6A080¥94,500
main71073-6A130-A1i200208-200708
IVORY,TRIM0#
main71073-6A130-B0i199801-200208
SHADOW GRAY,TRIM1#
main71073-6A130-B1i200208-200708
STONE,TRIM1#
main71073-6A130-E0i199801-200208
OAK,TRIM4#
main71073-6A310-A0i200208-200708
W(*80,SIDE),IVORY,TRIM0#
sub71073-6A400¥45,100
main71073-6A310-B0i200208-200708
W(*80,SIDE),STONE,TRIM1#
sub71073-6A400¥45,100
main71073-6A350-A0i200208-200708
W(*80,SIDE & LEATHER SEAT),IVORY,TRIM0#
main71073-6A350-B0i200208-200708
W(*80,SIDE & LEATHER SEAT),STONE,TRIM1#
main71073-6A400-A0i200208-200708
W(*80,SIDE),IVORY,TRIM0#
main71073-6A400-B0i200208-200708
W(*80,SIDE),STONE,TRIM1#
main71073-6A420-B0i200208-200505
STONE,TRIM1#
sub71073-6A421¥32,400
main71073-6A440-B0i200208-200505
W(FABRIC SEAT & FRONT BENCH SEAT),STONE,TRIM1#
sub71073-6A441
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-6A030-B0i200008-200208
GRAY,TRIM1#
main71073-6A030-B2i200208-200505
STONE,TRIM1#
main71073-6A040-B0i200008-200208
W(FABRIC SEAT),GRAY,TRIM1#
main71073-6A060-A1i200208-200708
IVORY,TRIM0#
sub71073-6A130¥45,200
main71073-6A060-B0i199801-200208
GRAY,TRIM1#
sub71073-6A130¥45,200
main71073-6A060-B1i200208-200708
STONE,TRIM1#
sub71073-6A130¥45,200
main71073-6A060-E0i199801-200208
LT. OAK,TRIM4#
sub71073-6A130¥45,200
main71073-6A130-A1i200208-200708
IVORY,TRIM0#
main71073-6A130-B0i199801-200208
SHADOW GRAY,TRIM1#
main71073-6A130-B1i200208-200708
STONE,TRIM1#
main71073-6A130-E0i199801-200208
OAK,TRIM4#
main71073-6A420-B0i200208-200505
W(FABRIC SEAT),STONE,TRIM1#
sub71073-6A421¥32,400
main71074-60740-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71074-60740¥94,500
main71074-60750-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71074-60750¥94,500
main71074-60750-A1i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
sub71074-60750¥94,500
main71074-60750-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
sub71074-60750¥94,500
main71074-60750-B1i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
sub71074-60750¥94,500
main71074-60830-A0i200208-200708
W(*80,SIDE),IVORY,TRIM0#
sub71074-6A020¥45,100
main71074-60830-B0i200208-200708
W(*80,SIDE),STONE,TRIM1#
sub71074-6A020¥45,100
main71074-60860-A0i200208-200708
W(*80,SIDE & LEATHER SEAT),IVORY,TRIM0#
main71074-60860-B0i200208-200708
W(*80,SIDE & LEATHER SEAT),STONE,TRIM1#
main71074-6A020-A0i200208-200708
W(*80,SIDE),IVORY,TRIM0#
main71074-6A020-B0i200208-200708
W(*80,SIDE),STONE,TRIM1#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-6A380-B0i199801-200208
SHADOW GRAY,TRIM1#
main71410-6A380-E1i199801-200208
OAK,TRIM4#
main71410-6A450-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71410-6A450-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71410-6A460-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
sub71410-6A460¥125,000
main71410-6A460-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
sub71410-6A460¥125,000
main71410-6A470-B0i199801-200208
W(SEAT HEATER & LEATHER SEAT),SHADOW GRAY,TRIM1#
main71410-6A470-E0i199801-200208
W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#
main71410-6A520-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71410-6A530-B2i200008-200208
W(VERTICAL SEAT AJDUSTER & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
sub71410-6A530¥61,100
main71410-6A610-B2i200008-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
sub71410-6A610
main71410-6A620-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
sub71410-6A620
main71410-6A690-B0i200008-200208
W(FABRIC SEAT),SHADOW GRAY,TRIM1#
sub71410-6A690
main71410-6A700-B0i200108-200208
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
sub71410-6A700
main71410-6A710-B0i200008-200208
W(VERTICAL SEAT AJDUSTER & FABRIC SEAT),SHADOW GRAY,TRIM1#
sub71410-6A710
main71410-6A720-B0i199801-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71410-6A720-E1i199801-200208
W(FRONT BENCH SEAT),OAK,TRIM4#
main71410-6A730-B0i199801-200208
SHADOW GRAY,TRIM1#
main71410-6A730-E1i199801-200208
OAK,TRIM4#
main71410-6A740-B0i199801-200208
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71410-6A740-E1i199801-200208
W(SEAT HEATER),OAK,TRIM4#
main71410-6A750-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-6A220-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71420-6A280-B0i199801-200208
SHADOW GRAY,TRIM1#
main71420-6A280-E1i199801-200208
OAK,TRIM4#
main71420-6A310-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71420-6A310-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
main71420-6A320-B0i199801-200208
W(SEAT HEATER & LEATHER SEAT),SHADOW GRAY,TRIM1#
main71420-6A320-E0i199801-200208
W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#
main71420-6A350-B0i199801-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
sub71420-6A350¥125,000
main71420-6A350-E0i199801-200208
W(LEATHER SEAT),OAK,TRIM4#
sub71420-6A350¥125,000
main71420-6A370-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71420-6A450-B2i200008-200208
SHADOW GRAY,TRIM1#
sub71420-6A450¥60,600
main71420-6A460-B0i200008-200208
W(FABRIC SEAT),SHADOW GRAY,TRIM1#
sub71420-6A460
main71420-6A490-B0i199801-200208
SHADOW GRAY,TRIM1#
main71420-6A490-E1i199801-200208
OAK,TRIM4#
main71420-6A500-B0i199801-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71420-6A500-E1i199801-200208
W(FRONT BENCH SEAT),OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71040-60030-B0i199801-199908
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71040-60030-E0i199801-199908
W(LEATHER SEAT),OAK,TRIM4#
main71040-60040-B1i199801-200208
W(SEAT HEATER & LEATHER SEAT),GRAY,TRIM1#
main71040-60040-E0i199801-200208
W(SEAT HEATER & LEATHER SEAT),DAK,TRIM4#
main71040-60060-B0i199801-199908
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
sub71040-60060¥176,000
main71040-60060-E0i199801-199908
W(LEATHER SEAT),OAK,TRIM4#
sub71040-60060¥176,000
main71040-60170-B0i200008-200208
W(FABRIC SEAT),SHADOW GRAY,TRIM1#
sub71040-60170
main71040-60180-B0i199801-199804
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
sub71040-60300¥134,000
main71040-60180-E1i199801-199804
W(FRONT BENCH SEAT),OAK,TRIM4#
sub71040-60300¥134,000
main71040-60190-B0i199801-200208
SHADOW GRAY,TRIM1#
main71040-60190-E1i199801-200208
OAK,TRIM4#
main71040-60200-B0i199801-200208
W(SEAT HEATER),SHADOW GRAY,TRIM1#
main71040-60200-E1i199801-200208
W(SEAT HEATER),OAK,TRIM4#
main71040-60220-B0i199801-200208
SHADOW GRAY,TRIM1#
main71040-60220-E1i199801-200208
OAK,TRIM4#
main71040-60280-B1i200008-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
sub71040-60280
main71040-60290-B0i200108-200208
W(FABRIC SEAT & FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71040-60300-B0i199804-200208
BENCH SEAT TYPE,SHADOW GRAY,TRIM1#
main71040-60300-E0i199804-200208
BENCH SEAT TYPE,OAK,TRIM4#
main71040-60500-B0i199908-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71040-60500-E0i199908-200208
W(LEATHER SEAT),OAK,TRIM4#
main71040-60510-B0i199908-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71040-60510-E0i199908-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM4#
main71040-60660-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71040-60670-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71430-6A090-A0i200208-200708
IVORY,TRIM0#
sub71430-6A091¥149,000
main71430-6A090-B0i200208-200708
STONE,TRIM1#
sub71430-6A091¥149,000
main71430-6A230-A0i200208-200708
IVORY,TRIM0#
sub71430-6A231
main71430-6A230-B0i200208-200708
STONE,TRIM1#
sub71430-6A231
main71430-6A240-A0i200208-200708
W(SEAT HEATER),IVORY,TRIM0#
sub71430-6A241
main71430-6A240-B0i200208-200708
W(SEAT HEATER),STONE,TRIM1#
sub71430-6A241
main71430-6A260-A0i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
main71430-6A260-B0i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
main71430-6A320-A0i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
main71430-6A320-B0i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
main71430-6A330-A0i200208-200708
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71430-6A330-B0i200208-200708
W(SEAT HEATER & LEATHER SEAT),STONE,TRIM1#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71040-60160-B2i200008-200208
SHADOW GRAY,TRIM1#
sub71040-60160¥67,400
main71040-60170-B0i200008-200208
W(FABRIC SEAT),SHADOW GRAY,TRIM1#
sub71040-60170
main71070-60040-B0i199801-200208
W(FRONT BENCH SEAT),SHADOW GRAY,TRIM1#
main71070-60040-E1i199801-200208
W(FRONT BENCH SEAT),OAK,TRIM4#
main71070-60050-B0i199801-200208
SHADOW GRAY,TRIM1#
main71070-60050-E1i199801-200208
OAK,TRIM4#
main71070-60070-B0i199801-199908
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60070-E0i199801-199908
W(LEATHER SEAT),OAK,TRIM4#
main71070-60080-B0i199801-200208
W(SEAT HEATER & LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60080-E0i199801-200208
W(SEAT HEATER & LEATHER SEAT),OAK,TRIM4#
main71070-60200-B0i199908-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60200-E0i199908-200208
W(LEATHER SEAT),OAK,TRIM4#
main71070-60210-B0i199908-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
main71070-60210-E0i199908-200208
W(LEATHER SEAT),SHADOW GRAY,TRIM4#
main71070-60260-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71070-60270-E0i200010-200108
50TH ANNIVERSARY,OAK,TRIM4#
main71440-60810-B0i199801-200208
SHADOW GRAY,TRIM1#
main71440-60810-E1i199801-200208
OAK,TRIM4#
main71440-60850-B0i199801-199908
W(LEATHER SEAT),SHADOW GRAY,TRIM1#
sub71440-60850¥155,000
main71440-60850-E0i199801-199908
W(LEATHER SEAT),OAK,TRIM4#
sub71440-60850¥155,000
main71440-6A090-A0i200208-200708
IVORY,TRIM0#
sub71440-6A091¥122,000
main71440-6A090-B0i200208-200708
STONE,TRIM1#
sub71440-6A091¥122,000
main71440-6A120-A0i200208-200708
W(SEAT HEATER),IVORY,TRIM0#
sub71440-6A121
main71440-6A120-B0i200208-200708
W(SEAT HEATER),STONE,TRIM1#
sub71440-6A121
main71440-6A130-A0i200208-200708
IVORY,TRIM0#
sub71440-6A131
main71440-6A130-B0i200208-200708
STONE,TRIM1#
sub71440-6A131
main71440-6A150-A0i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
main71440-6A150-B0i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
main71440-6A160-A0i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
main71440-6A160-B0i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
main71440-6A170-A0i200208-200708
W(SEAT HEATER & LEATHER SEAT),IVORY,TRIM0#
main71440-6A170-B0i200208-200708
W(SEAT HEATER & LEATHER SEAT),STONE,TRIM1#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-60040i¥26,400200008-200505
W(VERTICAL SEAT AJDUSTER & FRONT BENCH SEAT)
main71501-60050i¥23,000200008-200505
W(VERTICAL SEAT AJDUSTER)
main71501-60060i¥15,900200010-200108
50TH ANNIVERSARY
sub71501-60C60
main71501-60070i¥23,000199801-200505
W(LEATHER SEAT)
main71501-60080i¥17,800199801-200505
W(LEATHER SEAT)
main71501-60090i¥17,800200010-200108
50TH ANNIVERSARY
main71501-60100i¥26,400199801-200505
W(FRONT BENCH SEAT)
main71501-60110i¥23,000199801-200505
main71511-60140i¥20,000200008-200505
W(FRONT BENCH SEAT)
main71511-60160i¥16,500199801-200505
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-60060i¥23,000199801-200505
W(LEATHER SEAT)
main71502-60080i¥23,000200010-200108
50TH ANNIVERSARY
main71502-60090i¥17,800199801-200505
W(LEATHER SEAT)
main71502-60100i¥17,800200010-200108
50TH ANNIVERSARY
main71502-60110i¥23,000199801-200505
main71512-60120i¥16,500199801-200505
71517CLOTH, FRONT SEAT CUSHION UNDER
main71517-60170i¥170199801-199903
main71517-60200i¥180199903-200208
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-60210i¥24,400200010-200108
50TH ANNIVERSARY
main71551-60240i¥24,400199801-200505
W(LEATHER SEAT)
main71551-60250i¥16,500199801-200505
W(FRONT BENCH SEAT)
main71551-60260i¥14,100200008-200505
main71551-60270i¥15,400199801-200505
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-60210i¥24,400200010-200108
50TH ANNIVERSARY
main71551-60240i¥24,400199801-200505
W(LEATHER SEAT)
main71551-60260i¥14,100200008-200505
main71551-60270i¥15,400199801-200505
71571PAD, FRONT SEATBACK SILENCER, A
main71571-60020i¥410199801-200505
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-60130i¥18,600199801-200505
main71610-60230i¥18,600199801-200505
W(LEATHER SEAT)
main71610-60240i¥21,900199801-200505
W(FRONT BENCH SEAT)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-60170i¥18,600199801-200505
main71620-60230i¥18,600199801-200505
W(LEATHER SEAT)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71630-60130i¥25,000199801-200505
W(FRONT BENCH SEAT)
main71630-60140i¥20,300199801-200505
main71630-60150i¥19,900199801-200505
main71630-60180i¥21,100199908-200505
W(POWER SEAT)
main71630-60190i¥20,800199908-200505
W(POWER SEAT)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71630-60140i¥20,300199801-200505
main71630-60150i¥19,900199801-200505
main71630-60180i¥21,100199908-200505
W(POWER SEAT)
main71630-60190i¥20,800199908-200505
W(POWER SEAT)
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-60180-B0i199801-200208
GRAY,TRIM1#
main71705-60180-E0i199801-200208
LT. OAK,TRIM4#
main71705-60190-A1i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71705-60230¥10,000
main71705-60190-B1i199801-200208
W(LEATHER SEAT),MD.GRAY,TRIM1#
sub71705-60230¥10,000
main71705-60210-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71705-60210¥15,100
main71705-60220-A0i200208-200708
IVORY,TRIM0#
main71705-60220-B0i200208-200708
STONE,TRIM1#
main71705-60230-A0i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
main71705-60230-B0i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-60180-B0i199801-200208
GRAY,TRIM1#
main71705-60180-E0i199801-200208
LT. OAK,TRIM4#
main71705-60190-A1i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71705-60230¥10,000
main71705-60190-B1i199801-200208
W(LEATHER SEAT),MD.GRAY,TRIM1#
sub71705-60230¥10,000
main71705-60210-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71705-60210¥15,100
main71705-60220-A0i200208-200708
IVORY,TRIM0#
main71705-60220-B0i200208-200708
STONE,TRIM1#
main71705-60230-A0i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
main71705-60230-B0i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
71706BCLIP, FRONT SEATBACK BOARD
main71769-60020i¥760199801-200505
W(FRONT BENCH SEAT)
71789BPOCKET, FRONT SEATBACK BOARD
main71780-60020-A1i200208-200708
W(FRONT BENCH SEAT),IVORY,TRIM0#
sub71780-60020¥940
main71780-60020-A1i200208-200708
IVORY,TRIM0#
sub71780-60020¥940
main71780-60020-B0i199801-200208
GRAY,TRIM1#
sub71780-60020¥940
main71780-60020-B0i199801-200208
W(FRONT BENCH SEAT),GRAY,TRIM1#
sub71780-60020¥940
main71780-60020-B2i200208-200708
STONE,TRIM1#
sub71780-60020¥940
main71780-60020-B2i200208-200708
W(FRONT BENCH SEAT),STONE,TRIM1#
sub71780-60020¥940
main71780-60020-E0i199801-200208
LT. OAK,TRIM40,41
sub71780-60020¥940
main71780-60020-E0i199801-200208
W(FRONT BENCH SEAT),LT. OAK,TRIM40,41
sub71780-60020¥940
main71780-60040-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71780-60040¥2,790
71910AHEADREST ASSY, FRONT SEAT
main71910-60400-B0i200008-200208
MD.GRAY,TRIM1#
sub71910-60400¥14,100
main71910-60400-B2i200208-200505
STONE,TRIM1#
sub71910-60400¥14,100
main71910-60410-B0i200008-200208
W(FABRIC SEAT),GRAY,TRIM1#
sub71910-60410¥27,600
main71910-60410-B1i200208-200505
W(FABRIC SEAT),STONE,TRIM1#
sub71910-60410¥27,600
main71910-60420-A1i200208-200708
IVORY,TRIM0#
sub71910-60420¥29,600
main71910-60420-B0i199801-200208
GRAY,TRIM1#
sub71910-60420¥29,600
main71910-60420-B1i200208-200708
STONE,TRIM1#
sub71910-60420¥29,600
main71910-60420-E0i199801-200208
OAK,TRIM4#
sub71910-60420¥29,600
main71910-60440-A0i199801-200208
W(LEATHER SEAT),IVORY,TRIM4#
sub71910-60440¥37,400
main71910-60440-A1i200208-200708
W(LEATHER SEAT),IVORY,TRIM0#
sub71910-60440¥37,400
main71910-60440-B0i199801-200208
W(LEATHER SEAT),GRAY,TRIM1#
sub71910-60440¥37,400
main71910-60440-B1i200208-200708
W(LEATHER SEAT),STONE,TRIM1#
sub71910-60440¥37,400
main71910-60450-A0i200010-200108
50TH ANNIVERSARY,IVORY,TRIM4#
sub71910-60450¥37,400
sub71910-60452¥37,400
71931SUPPORT, FRONT SEAT HEADREST
main71930-28040-A0i199801-200103
W(LOCK),IVORY,TRIM40,41
sub71930-60030¥1,260
sub71930-28040¥1,260
main71930-28040-B5i199801-200103
W(LOCK),MD.GRAY,TRIM1#
sub71930-60030¥1,260
sub71930-28040¥1,260
main71930-60030-A0i200103-200208
W(LOCK),IVORY,TRIM41
sub71930-60030¥1,260
main71930-60030-A1i200208-200708
W(LOCK),IVORY,TRIM0#
sub71930-60030¥1,260
main71930-60030-B0i200103-200208
W(LOCK),MD.GRAY,TRIM1#
sub71930-60030¥1,260
main71930-60030-B0i200103-200208
W(LOCK),MD.GRAY,TRIM1#,40
sub71930-60030¥1,260
main71930-60030-B1i200208-200708
W(LOCK),STONE,TRIM1#
sub71930-60030¥1,260
main71931-28050-A0i199801-200103
W/O(LOCK),IVORY,TRIM40,41
sub71931-28050¥780
main71931-28050-B5i199801-200103
W/O(LOCK),MD.GRAY,TRIM1#
sub71931-28050¥780
main71931-60020-A0i200103-200208
W/O(LOCK),IVORY,TRIM41
sub71931-60020¥780
main71931-60020-A1i200208-200708
W/O(LOCK),IVORY,TRIM0#
sub71931-60020¥780
main71931-60020-B0i200103-200208
W/O(LOCK),MD.GRAY,TRIM1#
sub71931-60020¥780
main71931-60020-B0i200103-200208
W/O(LOCK),MD.GRAY,TRIM1#,40
sub71931-60020¥780
main71931-60020-B1i200208-200708
W/O(LOCK),STONE,TRIM1#
sub71931-60020¥780
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72760-60040i¥29,600199801-200505
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72750-60070i¥29,600199801-200505
72797SPACER, LUMBAR SUPPORT
main72797-50010i¥360199801-200505
9018305016
main90183-05016¥80
9165160614
main91651-60614¥70
9413060400
main94130-60400¥60
9461310500
main94613-10500¥170

31 parts on this diagram · 31 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
