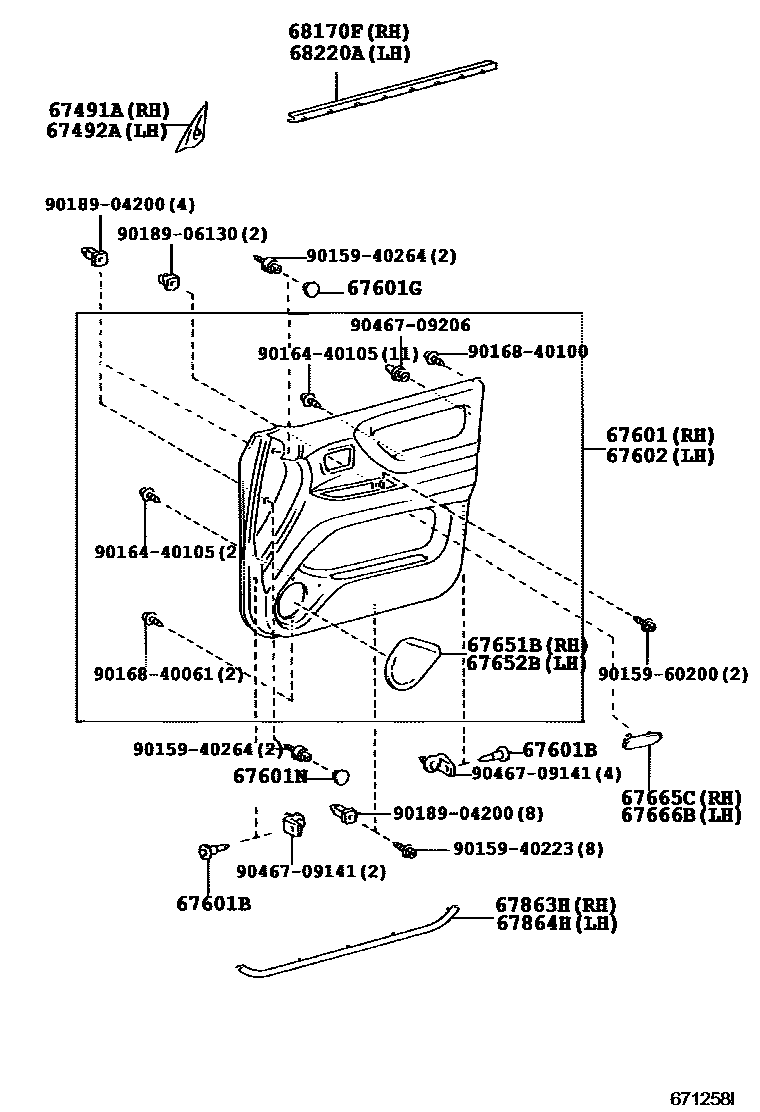

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-60060iUZJ100..LHD;HDJ100..STD;HDJ100..RHD..4FC199801-200505

sub67491-60070

main67491-60070iHDJ100,UZJ100..VX199801-200505

W(TWEETER SPEAKER)

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-60060iHDJ100..RHD..4FC199801-200505

sub67492-60070

main67492-60070iHDJ100,UZJ100..VX199801-200505

W(TWEETER SPEAKER)

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67650-60010-B0iHDJ100..STD200008-200107

SHADOW GRAY,TRIM1#

sub67650-60011

main67650-60011-B0iHDJ100..STD200107-200208

SHADOW GRAY,TRIM1#

main67650-60012-B0iHDJ100..STD200208-200505

STONE,TRIM1#

sub67610-60C10

sub67650-60012

main67650-60020-B0iHDJ100,UZJ100..VX199801-200009

SHADOW GRAY,TRIM1#

sub67650-60310

main67650-60020-E0iHDJ100,UZJ100..VX199801-200009

OAK,TRIM4#

sub67650-60310

main67650-60022-A0iHDJ100,UZJ100200208-200701

IVORY,TRIM0#

sub67650-60022

main67650-60022-A2iHDJ100,UZJ100200701-200708

IVORY,TRIM0#

sub67650-60022

main67650-60022-B2iHDJ100,UZJ100..VX200208-200701

STONE,TRIM1#

sub67650-60022

main67650-60022-B4iHDJ100,UZJ100200701-200708

STONE,TRIM1#

sub67650-60022

main67650-60040-B0iHDJ100,UZJ100..LHD..VX199801-200009

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67650-60320

main67650-60040-E0iHDJ100,UZJ100..LHD..VX199801-200009

W(LEATHER SEAT),OAK,TRIM4#

sub67650-60320

main67650-60041-A0iHDJ100,UZJ100..LHD..VX200208-200701

W(LEATHER SEAT),IVORY,TRIM0#

sub67650-60041

sub67610-60C20

main67650-60041-A1iHDJ100,UZJ100..LHD200701-200708

W(LEATHER SEAT),IVORY,TRIM0#

sub67650-60041

sub67610-60C20

main67650-60041-B1iHDJ100,UZJ100..LHD200208-200701

W(LEATHER SEAT),STONE,TRIM1#

sub67650-60041

sub67610-60C20

main67650-60041-B2iHDJ100,UZJ100..LHD200701-200708

W(LEATHER SEAT),STONE,TRIM1#

sub67650-60041

sub67610-60C20

main67650-60050-B0iHDJ100,UZJ100..RHD199801-200208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main67650-60050-E0iHDJ100,UZJ100..RHD199801-200208

W(LEATHER SEAT),OAK,TRIM4#

main67650-60051-A0iHDJ100,UZJ100..RHD200208-200701

W(LEATHER SEAT),IVORY,TRIM0#

sub67650-60051

main67650-60051-A1iHDJ100,UZJ100..RHD200701-200708

W(LEATHER SEAT),IVORY,TRIM0#

sub67650-60051

main67650-60051-B1iHDJ100,UZJ100..RHD200208-200701

W(LEATHER SEAT),STONE,TRIM1#

sub67650-60051

main67650-60051-B2iHDJ100,UZJ100..RHD200701-200708

W(LEATHER SEAT),STONE,TRIM1#

sub67650-60051

main67650-60060-E0iHDJ100,UZJ100..RHD..4FC200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

main67650-60290-E0iHDJ100,UZJ100..LHD..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub67650-60290

main67650-60310-B0iHDJ100,UZJ100..VX200009-200107

SHADOW GRAY,TRIM1#

sub67650-60311

main67650-60310-E0iHDJ100,UZJ100..VX200009-200107

OAK,TRIM4#

sub67650-60311

main67650-60311-B0iHDJ100,UZJ100..VX200107-200206

SHADOW GRAY,TRIM1#

sub67650-60311

main67650-60311-B1iHDJ100,UZJ100..VX200206-200208

SHADOW GRAY,TRIM1#

sub67650-60311

main67650-60311-E0iHDJ100,UZJ100..VX200107-200206

OAK,TRIM4#

sub67650-60311

main67650-60311-E1iHDJ100,UZJ100..VX200206-200208

OAK,TRIM4#

sub67650-60311

main67650-60320-B0iHDJ100,UZJ100..LHD..VX200009-200208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67650-60320

main67650-60320-E0iHDJ100,UZJ100..LHD..VX200009-200208

W(LEATHER SEAT),OAK,TRIM4#

sub67650-60320

67601BCLIP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-A0iHDJ100,UZJ100..VX200208-200708

IVORY,TRIM0#

sub90467-07066

main90467-07066-A1iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41

sub90467-07066

main90467-07066-P2iHDJ100,UZJ100199801-200208

MD.GRAY,TRIM1#

sub90467-07066

main90467-07066-P4iHDJ100,UZJ100200208-200708

STONE,TRIM1#

sub90467-07066

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A1iHDJ100,UZJ100..VX200208-200708

IVORY,TRIM00

sub90950-01800

main90950-01800-B0iHDJ100,UZJ100199801-200208

SHADOW GRAY,TRIM1#

sub90950-01800

main90950-01800-B9iHDJ100,UZJ100200208-200708

STONE,TRIM10

sub90950-01800

main90950-01800-E1iHDJ100,UZJ100..VX199801-200208

OAK,TRIM40,41

sub90950-01800

main90950-01800-E5iHDJ100,UZJ100..VX200208-200708

SANDAL WOOD,TRIM00

sub90950-01800

main90950-01800-P0iHDJ100,UZJ100200208-200708

DK.GRAY,TRIM10

sub90950-01800

67601NPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01800-A0iHDJ100,UZJ100..VX199801-200208

IVORY,TRIM40,41

sub90950-01800

main90950-01800-A1iHDJ100,UZJ100..VX200208-200708

IVORY,TRIM00

sub90950-01800

main90950-01800-B6iHDJ100,UZJ100..VX199801-200208

MD.GRAY,TRIM1#

sub90950-01800

main90950-01800-B9iHDJ100,UZJ100200208-200708

STONE,TRIM10

sub90950-01800

main90950-01800-E5iHDJ100,UZJ100..VX200208-200708

SANDAL WOOD,TRIM00

sub90950-01800

main90950-01800-P0iHDJ100,UZJ100200208-200708

DK.GRAY,TRIM10

sub90950-01800

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67660-60020-B0iHDJ100..STD200008-200107

SHADOW GRAY,TRIM1#

sub67660-60021

main67660-60021-B0iHDJ100..STD200107-200208

SHADOW GRAY,TRIM1#

main67660-60022-B0iHDJ100..STD200208-200505

STONE,TRIM1#

sub67620-60B90

sub67660-60022

main67660-60030-B0iHDJ100,UZJ100..VX199801-200009

SHADOW GRAY,TRIM1#

sub67660-60330

main67660-60030-E0iHDJ100,UZJ100..VX199801-200009

OAK,TRIM4#

sub67660-60330

main67660-60032-A0iHDJ100,UZJ100..VX200208-200701

IVORY,TRIM0#

sub67660-60032

main67660-60032-A2iHDJ100,UZJ100200701-200708

IVORY,TRIM0#

sub67660-60032

main67660-60032-B2iHDJ100,UZJ100200208-200701

STONE,TRIM1#

sub67660-60032

main67660-60032-B6iHDJ100,UZJ100200701-200708

STONE,TRIM1#

sub67660-60032

main67660-60050-B0iHDJ100,UZJ100..RHD199801-200009

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67660-60340

main67660-60050-E0iHDJ100,UZJ100..RHD199801-200009

W(LEATHER SEAT),OAK,TRIM4#

sub67660-60340

main67660-60051-A0iHDJ100,UZJ100..RHD200208-200701

W(LEATHER SEAT),IVORY,TRIM0#

sub67660-60051

main67660-60051-A1iHDJ100,UZJ100..RHD200701-200708

W(LEATHER SEAT),IVORY,TRIM0#

sub67660-60051

main67660-60051-B1iHDJ100,UZJ100..RHD200208-200701

W(LEATHER SEAT),STONE,TRIM1#

sub67660-60051

main67660-60051-B2iHDJ100,UZJ100..RHD200701-200708

W(LEATHER SEAT),STONE,TRIM1#

sub67660-60051

main67660-60060-B0iHDJ100,UZJ100..LHD..VX199801-200208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

main67660-60060-E0iHDJ100,UZJ100..LHD..VX199801-200208

W(LEATHER SEAT),OAK,TRIM4#

main67660-60061-A0iHDJ100,UZJ100..LHD..VX200208-200701

W(LEATHER SEAT),IVORY,TRIM0#

sub67660-60061

sub67620-60C00

main67660-60061-A1iHDJ100,UZJ100..LHD200701-200708

W(LEATHER SEAT),IVORY,TRIM0#

sub67660-60061

sub67620-60C00

main67660-60061-B1iHDJ100,UZJ100..LHD..VX200208-200701

W(LEATHER SEAT),STONE,TRIM1#

sub67660-60061

sub67620-60C00

main67660-60061-B2iHDJ100,UZJ100..LHD200701-200708

W(LEATHER SEAT),STONE,TRIM1#

sub67660-60061

sub67620-60C00

main67660-60070-E0iHDJ100,UZJ100..RHD..4FC200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

main67660-60310-E0iHDJ100,UZJ100..LHD..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub67660-60310

main67660-60330-B0iHDJ100,UZJ100..VX200009-200107

SHADOW GRAY,TRIM1#

sub67660-60331

main67660-60330-E0iHDJ100,UZJ100..VX200009-200107

OAK,TRIM4#

sub67660-60331

main67660-60331-B0iHDJ100,UZJ100..VX200107-200206

SHADOW GRAY,TRIM1#

sub67660-60331

main67660-60331-B1iHDJ100,UZJ100..VX200206-200208

SHADOW GRAY,TRIM1#

sub67660-60331

main67660-60331-E0iHDJ100,UZJ100..VX200107-200206

OAK,TRIM4#

sub67660-60331

main67660-60331-E1iHDJ100,UZJ100..VX200206-200208

OAK,TRIM4#

sub67660-60331

main67660-60340-B0iHDJ100,UZJ100..RHD200009-200208

W(LEATHER SEAT),SHADOW GRAY,TRIM1#

sub67660-60340

main67660-60340-E0iHDJ100,UZJ100..RHD200009-200208

W(LEATHER SEAT),OAK,TRIM4#

sub67660-60340

67651BGRILLE, SPEAKER DOOR, RH

main67609-60010-A1iHDJ100,UZJ100..VX200206-200208

IVORY,TRIM40,41

sub67609-60010

main67609-60010-B0iHDJ100,UZJ100..VX199801-200206

SHADOW GRAY,TRIM1#

sub67609-60010

main67609-60010-B2iHDJ100,UZJ100..VX200206-200208

MD.GRAY,TRIM1#

sub67609-60010

main67609-60010-E0iHDJ100,UZJ100..VX199801-200206

OAK,TRIM40,41

sub67609-60010

main67609-60011-A0iHDJ100,UZJ100..VX200208-200708

IVORY,TRIM0#

main67609-60011-B1iHDJ100,UZJ100200208-200708

STONE,TRIM1#

main67609-60020-E0iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub67609-60020

main67651-60030-B0iHDJ100..STD200008-200208

MD. GRAY,TRIM1#

sub67651-60030

main67651-60030-B2iHDJ100..STD200208-200505

STONE,TRIM1#

sub67651-60030

67652BGRILLE, SPEAKER DOOR, LH

main67652-60010-B0iHDJ100..STD200008-200208

MD. GRAY,TRIM1#

sub67652-60010

main67652-60010-B2iHDJ100..STD200208-200505

STONE,TRIM1#

sub67652-60010

main67709-60010-A1iHDJ100,UZJ100..VX200206-200208

IVORY,TRIM40,41

sub67709-60010

main67709-60010-B0iHDJ100,UZJ100..VX199801-200206

SHADOW GRAY,TRIM1#

sub67709-60010

main67709-60010-B2iHDJ100,UZJ100..VX200206-200208

MD.GRAY,TRIM1#

sub67709-60010

main67709-60010-E0iHDJ100,UZJ100..VX199801-200206

OAK,TRIM40,41

sub67709-60010

main67709-60011-A0iHDJ100,UZJ100..VX200208-200708

IVORY,TRIM0#

main67709-60011-B1iHDJ100,UZJ100..VX200208-200708

STONE,TRIM1#

main67709-60020-E0iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200010-200108

50TH ANNIVERSARY,OAK,TRIM4#

sub67709-60020

sub67709-60010

67665CREFLECTOR, FRONT DOOR TRIM, RH

main67665-60010iHDJ100..STD200107-200505

67666BREFLECTOR, FRONT DOOR TRIM, LH

main67666-60010iHDJ100..STD200107-200505

67863HWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-60020iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

50TH ANNIVERSARY

67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-60020iHDJ100,UZJ100..4FC;HDJ100..LHD..5F..VX200008-200108

50TH ANNIVERSARY

68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH

main68170-60110iHDJ100,UZJ100199801-200104

sub68170-60111

main68170-60111iHDJ100,UZJ100200104-200708

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-60060iHDJ100,UZJ100199801-200104

sub68220-60061

main68220-60061iHDJ100,UZJ100200104-200708

9015940223

main90159-40223

9015940264

main90159-40264

9015960200

main90159-60200

9016440105

main90164-40105

9016840061

main90168-40061

9016840100

main90168-40100

9018904200

main90189-04200

9018906130

main90189-06130

9046709141

main90467-09141

9046709206

main90467-09206

25 parts on this diagram · 2 diagrams in section
