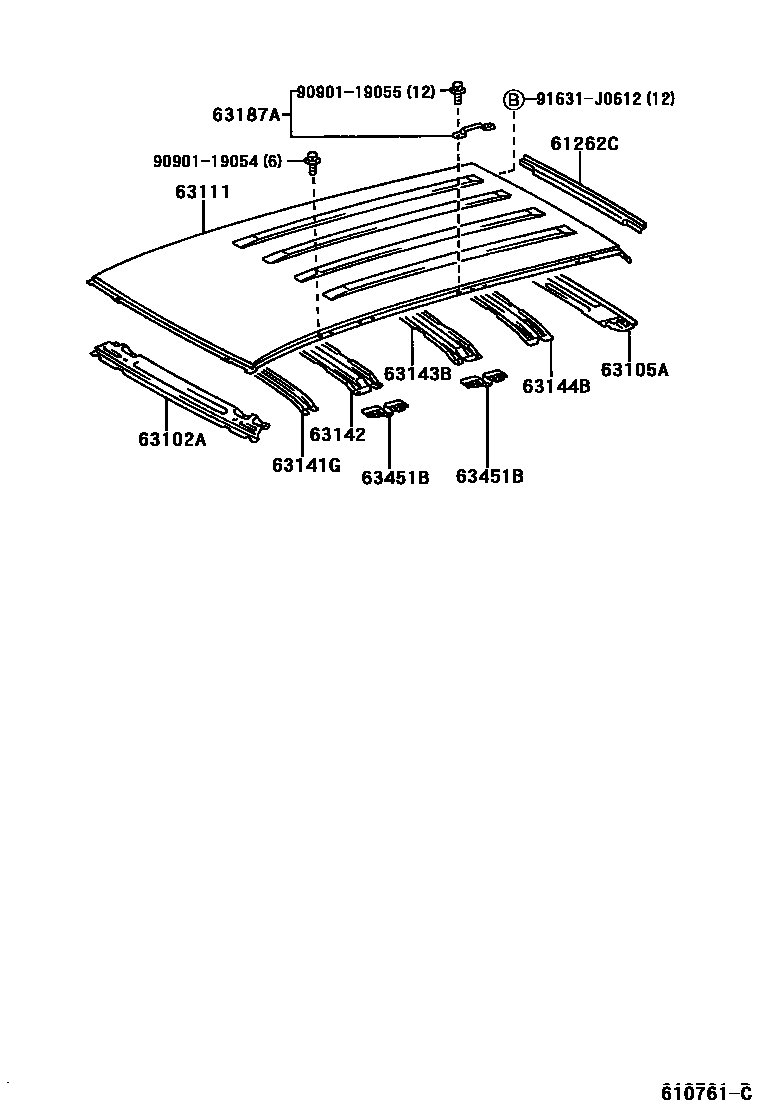

ROOF PANEL & BACK PANEL

0001 1 0002 1W(MOON ROOF) 0003 1W(MOON ROOF) 0004 1W(MOON ROOF) 0005 1W(ROOF RAIL) 0006 1W(ROOF RACK)

61262CCHANNEL, ROOF DRIP, REAR

main61263-60051iHDJ100..STD200008-200505

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-60070iHDJ100,UZJ100199801-200505

main63102-60071iHDJ100,UZJ100200201-200208

sub63102-60070

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-60171iHDJ100..STD200008-200505

sub63105-60191

main63105-60180iHDJ100,UZJ100199801-199906

sub63105-60181

main63105-60181iHDJ100,UZJ100..VX199906-200505

63111PANEL, ROOF

main63111-60431iHDJ100..STD200008-200505

main63111-60450iHDJ100,UZJ100199801-199906

sub63111-60451

main63111-60451iHDJ100,UZJ100199906-200505

main63111-60460iHDJ100,UZJ100199801-199906

W(MOON ROOF)

sub63111-60461

main63111-60461iHDJ100,UZJ100..VX199906-200505

W(MOON ROOF)

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-60060iHDJ100,UZJ100199801-200505

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-60020iHDJ100,UZJ100199801-200505

W(MOON ROOF)

main63104-60040iHDJ100,UZJ100199801-200505

W(MOON ROOF & ROOF RACK)

main63143-60030iHDJ100,UZJ100199801-200505

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63144-60050iHDJ100,UZJ100199801-200505

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63127-60020iHDJ100,UZJ100199801-200505

63187ABRACKET, ROOF RACK, REAR

main63187-60030iHDJ100,UZJ100..VX199801-200505

63451BREINFORCEMENT, ROOF RACK, NO.1

main63451-60040iHDJ100..STD199801-200708

W(MOON ROOF)

9090119054

main90901-19054

9090119055

main90901-19055

91631J0612

main91631-J0612

13 parts on this diagram · 6 diagrams in section
