FRONT FENDER APRON & DASH PANEL

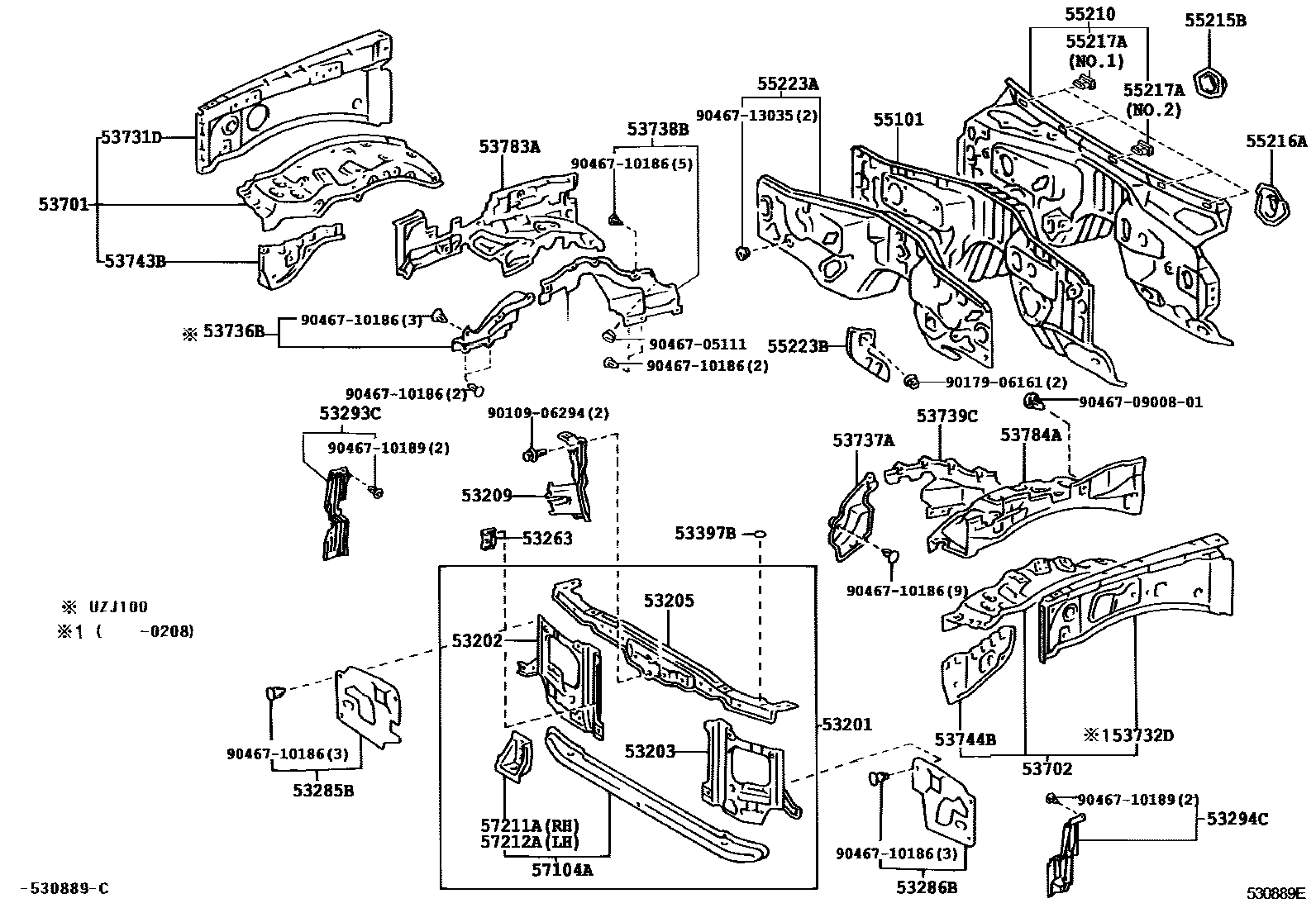

Parts diagram
53201SUPPORT SUB-ASSY, RADIATOR
main53201-60050i199801-200201
sub53201-60051
main53201-60051i200201-200205
sub53201-60140
main53201-60052i200208-200411
sub53201-60180
main53201-60140i200205-200208
main53201-60180i200412-200505
53202SUPPORT SUB-ASSY, RADIATOR, RH
main53202-60060i199801-200201
sub53202-60061
main53202-60061i200201-200205
sub53202-60062
main53202-60062i200205-200505
53203SUPPORT SUB-ASSY, RADIATOR, LH
main53203-60090i199801-200201
sub53203-60091
main53203-60091i200201-200205
sub53203-60180
main53203-60092i200208-200505
main53203-60180i200205-200208
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
main53205-60010i199801-200411
sub53205-60040
main53205-60040i200412-200505
53209BRACE SUB-ASSY, HOOD LOCK
main53209-60050i199801-200201
sub53209-60051
main53209-60051i200201-200208
main53209-60090i200208-200502
sub53209-60091
main53209-60091i200503-200505
53263RETAINER, INTERCOOLER MOUNTING
main53263-60010i199801-200505
53285BSEAL, RADIATOR SIDE AIR, NO.1
main53285-60061i200208-200505
53286BSEAL, RADIATOR SIDE AIR, NO.2
main53286-60051i200208-200505
53293CDEFLECTOR, RADIATOR SIDE, RH
main53293-60020i200208-200505
main53293-60030i200208-200505
main53293-60040i200505
main53293-60050i200505
53294CDEFLECTOR, RADIATOR SIDE, LH
main53294-60040i200208-200505
main53294-60060i200505
53397BSEAL, RADIATOR, UPPER
main53397-60010i200107-200505
53701APRON SUB-ASSY, FRONT FENDER, RH
main53710-60180i199801-199906
sub53710-60181
sub91651-60614
main53710-60181i199906-200204
sub53710-60200
main53710-60182i200208-200411
sub53710-60183
main53710-60183i200412-200505
main53710-60190i199801-199906
sub53710-60191
sub91651-60614
main53710-60191i199906-200204
sub53710-60210
main53710-60192i200208-200411
sub53710-60193
main53710-60193i200412-200505
main53710-60200i200204-200208
sub53710-60182
main53710-60210i200204-200208
sub53710-60192
53702APRON SUB-ASSY, FRONT FENDER, LH
main53720-60170i199801-200204
sub53720-60180
main53720-60172i200208-200302
sub53720-60173
main53720-60173i200302-200409
sub53720-60175
main53720-60174i200410-200411
sub53720-60175
main53720-60175i200412-200606
sub53720-60176
main53720-60176i200607
sub53720-60180
main53720-60180i200204-200208
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
main53705-60040i199801-199906
sub53705-60041
sub91651-60614
main53705-60041i199906-200411
sub53705-60042
main53705-60042i200412-200505
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
main53706-60030i199801-200208
53736BSEAL, FRONT FENDER APRON TO FRAME, NO.1 RH
main53736-60080i199801-200702
sub53736-60081
main53736-60081i200703
53737ASEAL, FRONT FENDER APRON TO FRAME, NO.1 LH
main53737-60070i199801-200505
53738BSEAL, FRONT FENDER APRON TO FRAME, NO.2 RH
main53738-60050i199801-200702
sub53738-60051
main53738-60051i200703
53739CSEAL, FRONT FENDER APRON TO FRAME, REAR
main53739-60040i199801-200702
sub53739-60041
main53739-60041i200703
53743BREINFORCEMENT, FRONT FENDER APRON, FRONT RH
main53743-60050i199801-200505
53744BREINFORCEMENT, FRONT FENDER APRON, FRONT LH
main53744-60050i199801-200606
53783AINSULATOR, APRON FRONT FENDER, RH
main53783-60050i199801-200208
sub53783-60070
main53783-60070i200208-200505
53784AINSULATOR, APRON FRONT FENDER, LH
main53784-60040i199801-200204
sub53784-60041
main53784-60041i200204-200208
sub53784-60061
main53784-60060i200208-200409
sub53784-60061
main53784-60061i200410-200505
55101PANEL SUB-ASSY, DASH
main55101-60A10i200505
W(VGRS)
main55101-60A10i200307-200505
W(POWER STEERING & VGRS)
main55101-60A20i200307-200505
W(VGRS)
main55101-6D120i200505
main55101-6D120i199801-200505
W(ACTIVE HEIGHT CONTROL & REAR HEATER) OR W(REAR HEATER)
main55101-6D210i199801-200208
W(ACTIVE HEIGHT CONTROL & REAR HEATER) OR W(REAR HEATER)
main55101-6D240i200307-200505
main55101-6D240i199801-200307
W(ACTIVE HEIGHT CONTROL & REAR HEATER) OR W(REAR HEATER)
main55101-6D310i199801-200208
W(ACTIVE HEIGHT CONTROL & REAR HEATER)
main55101-6D330i199801-200208
W(REAR HEATER)
sub55101-6D310
main55101-6D350i200307-200505
main55101-6D350i199801-200307
W(ACTIVE HEIGHT CONTROL & REAR HEATER) OR W(REAR HEATER)
main55101-6D510i200008-200505
W(REAR HEATER)
main55101-6D510i199801-200505
W(ACTIVE HEIGHT CONTROL & REAR HEATER)
main55101-6D510i200505
main55101-6D850i200008-200505
sub55101-6D510
main55101-6E450i200208-200505
main55101-6E460i200505
W(VGRS)
main55101-6E460i200208-200505
W(POWER STEERING)
main55101-6E530i200208-200505
main55101-6E540i200208-200505
W(POWER STEERING)
sub55101-60A10
sub91611-G0612
main55101-6E540i200505
W(VGRS)
sub55101-60A10
sub91611-G0612
55210INSULATOR ASSY, DASH PANEL
main55210-60070i199801-200204
sub55210-60071
main55210-60071i200204-200505
main55210-60080i199801-199910
sub55210-60081
main55210-60081i199910-200204
sub55210-60082
main55210-60082i200204-200308
sub55210-60083
main55210-60083i200308-200411
sub55210-60084
main55210-60084i200412-200505
55215BPAD, DASH PANEL INSULATOR, NO.3
main55215-60010i199801-200312
sub55215-60011
main55215-60011i200312-200505
55216APAD, DASH PANEL INSULATOR, NO.4
main55216-60010i199801-200403
sub55216-60011
main55216-60011i200403-200505
55217ARETAINER, DASH PANEL SILENCER
main55217-60010i200412-200505
NO.1
main55217-60020i200412-200505
NO.2
55223AINSULATOR, DASH PANEL, OUTER
main55223-60220i199801-200204
sub55223-60221
main55223-60221i200204-200505
main55223-60230i199801-200204
sub55223-60231
main55223-60231i200204-200410
sub55223-60232
main55223-60232i200411-200505
55223BINSULATOR, DASH PANEL HEAT, NO.1
main55225-60040i199801-200505
57104AMEMBER SUB-ASSY, FRONT CROSS
main57104-60040i199801-200505
57211ABRACKET, BODY MOUNTING, NO.1 RH
main57211-60010i199801-200505
57212ABRACKET, BODY MOUNTING, NO.1 LH
main57212-60010i199801-200505
9010906294
main90109-06294
9017906161
main90179-06161
9046705111
main90467-05111
904670900801
main90467-0900801
9046710186
main90467-10186
9046710189
main90467-10189
9046713035
main90467-13035

40 parts on this diagram · 1 diagram in section
