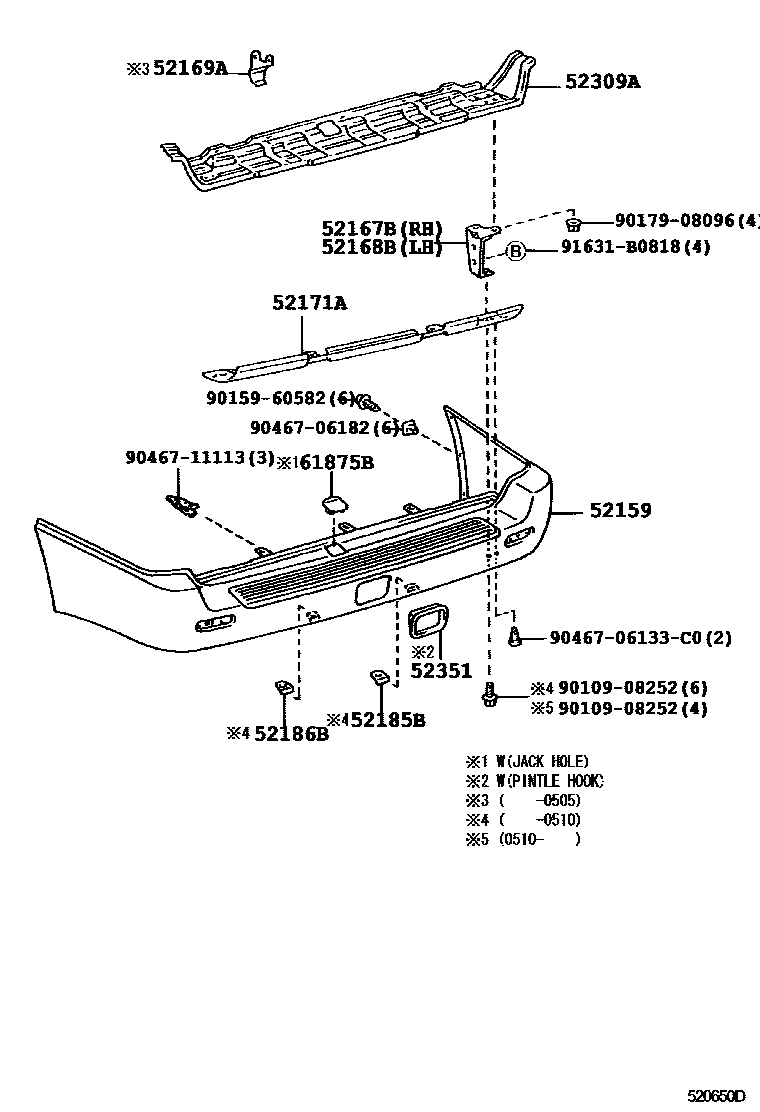

REAR BUMPER & BUMPER STAY

52159COVER, REAR BUMPER

main52159-60121iHDJ100..STD200008-200505

W(JACK HOLE)

sub52159-6A920

main52159-60161iHDJ100..STD200008-200505

W(PINTLE HOOK)

sub52159-6A922

main52159-60903iHDJ100,UZJ100199801-199808

W(JACK HOLE)

sub52159-60907

main52159-60905iHDJ100,UZJ100199801-199808

W(PINTLE HOOK & JACK HOLE)

sub52159-60909

main52159-60907iHDJ100,UZJ100..VX199808-200505

W(JACK HOLE)

sub52159-6A914

main52159-60907iHDJ100,UZJ100200505-200708

sub52159-6A914

main52159-60909iUZJ100..LHD;HDJ100..ATM;HDJ100..LHD..5F..VX199808-200505

W(PINTLE HOOK & JACK HOLE)

sub52159-6A916

main52159-60909iUZJ100..LHD;HDJ100..5FC;HDJ100..LHD..5F200505-200708

W(PINTLE HOOK)

sub52159-6A916

52167BBRACKET, REAR BUMPER EXTENSION MOUNTING, RH

main52167-60030iHDJ100,UZJ100199801-200505

52168BBRACKET, REAR BUMPER EXTENSION MOUNTING, LH

main52168-60030iHDJ100,UZJ100199801-200505

52169ASUPPORT, REAR BUMPER SIDE, NO.3

main52169-60030iHDJ100..STD200008-200505

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-60010iHDJ100,UZJ100199808-200510

main52171-60070iHDJ100,UZJ100200510

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-60080iHDJ100,UZJ100199801-200510

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52185-60080iHDJ100,UZJ100199801-200510

52309AREINFORCEMENT SUB-ASSY, BACK STEP

main52309-60010iHDJ100,UZJ100199801-200505

52351STEP, REAR BUMPER

main51775-60040iHDJ100,UZJ100199801-200505

61875BLID, SPARE WHEEL CARRIER, NO.1

main61875-60020-B0iHDJ100,UZJ100200505-200708

GRAY ME.,056 ,1F7 ,4R3

sub61875-60020

main61875-60020-B1iHDJ100,UZJ100200505-200708

GRAY ME.,8R3

sub61875-60020

main61875-60020-D0iHDJ100,UZJ100200505-200708

DK. GRAY M.,1E9 ,202 ,3Q2 ,6R4

sub61875-60020

main61875-60020-D0iHDJ100,UZJ100..VX200208-200505

DK. GRAY M.,1E9 ,202 ,3Q2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-E0iHDJ100,UZJ100199801-199909

LT. GRAYISH BEIGE ME,056 ,1B1

sub61875-60020

main61875-60020-E1iHDJ100,UZJ100..VX199909-200505

LT.GRAYISH BEIGE ME.,056 ,1B1

sub61875-60020

main61875-60020-H0iHDJ100,UZJ100199801-199909

MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H1iHDJ100,UZJ100199801-199909

DK. TAUPE ME.,3N2 ,4P3

sub61875-60020

main61875-60020-H2iHDJ100..RHD..5F200008-200208

MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H2iHDJ100..RHD..5F200008-200108

MEDIUM GRAY ME.,1C3 ,202 ,3N2 ,6Q7 ,6S5 ,8L4

sub61875-60020

main61875-60020-H2iHDJ100,UZJ100199909-200008

MEDIUM GRAY ME.,1C3 ,202 ,6Q7 ,8L4

sub61875-60020

main61875-60020-H3iHDJ100,UZJ100199909-200008

DK.TAUPE ME.,3N2 ,4P3

sub61875-60020

main61875-60030iHDJ100..STD200008-200505

UNPAINTED

9010908252

main90109-08252

9015960582

main90159-60582

9017908096

main90179-08096

9046706133C0

main90467-06133C0

9046706182

main90467-06182

9046711113

main90467-11113

91631B0818

main91631-B0818

17 parts on this diagram · 1 diagram in section
