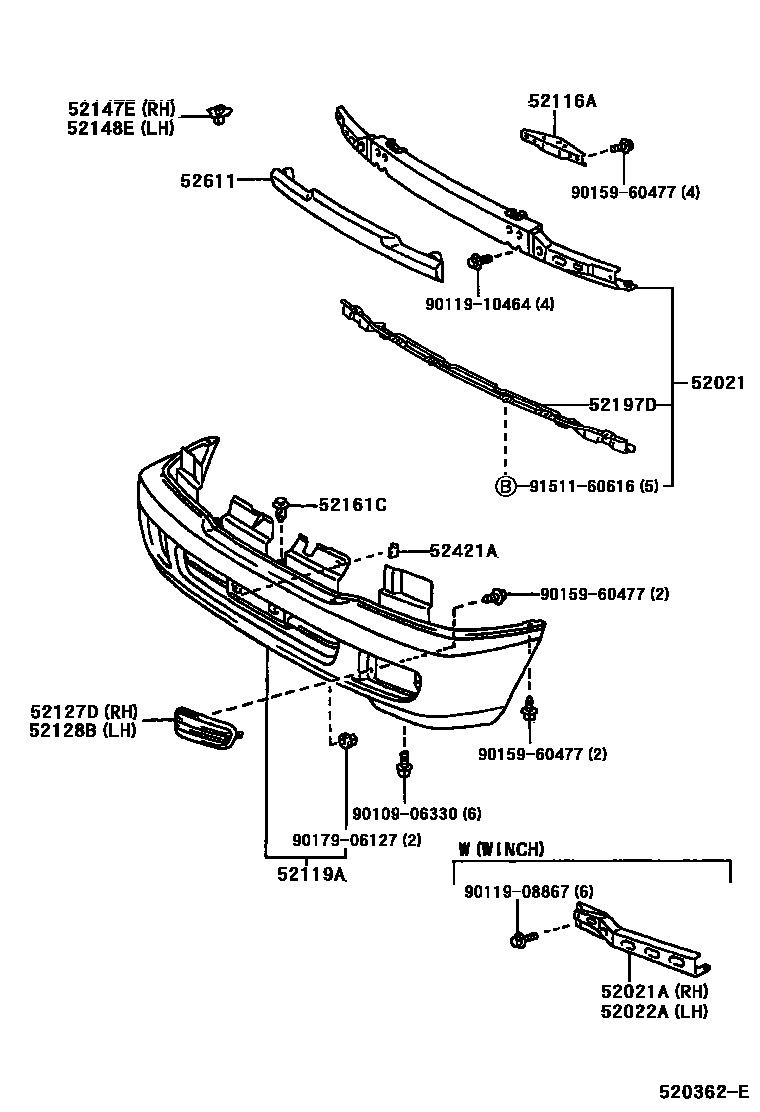

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1BUMPER GUARD

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-60020iHDJ100,UZJ100199801-199808

sub52110-60010

sub52110-60020

main52021-60060iHDJ100,UZJ100200208-200505

sub52021-60120

main52110-60010iHDJ100,UZJ100199808-200208

52021AREINFORCEMENT SUB-ASSY, FRONT BUMPER, RH

main52021-60050iHDJ100,UZJ100199808-200208

main52131-60100iHDJ100,UZJ100199801-199808

sub52021-60050

main52131-60140iUZJ100;HDJ100..5F200208-200505

52022AREINFORCEMENT SUB-ASSY, FRONT BUMPER, LH

main52022-60030iHDJ100,UZJ100199808-200208

main52132-60070iHDJ100,UZJ100199801-199808

sub52022-60030

main52132-60100iUZJ100;HDJ100..5F200208-200505

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-60110iHDJ100,UZJ100199802-200208

52119ACOVER, FRONT BUMPER

main52119-60160iHDJ100..STD200008-200208

W(WINCH)

sub52119-6B917

main52119-60220iHDJ100..STD200008-200208

sub52119-6B918

main52119-60680iHDJ100..STD200208-200505

W(HEADLAMP CLEANER)

sub52119-6A994

main52119-60700iHDJ100..STD200208-200505

W(WINCH & HEADLAMP CLEANER)

sub52119-6A996

main52119-60904iHDJ100,UZJ100..LHD..VX199801-200208

sub52119-6B920

main52119-60907iUZJ100..LHD200001-200208

CHINA SPEC & W(HEADLAMP CLEANER & FRONT BUMPER GUARD)

sub52119-6B903

main52119-60908iUZJ100..LHD200001-200208

CHINA SPEC & W(FRONT BUMPER GUARD)

sub52119-6B904

main52119-60909iHDJ100,UZJ100..VX199801-200208

W(HEADLAMP CLEANER)

sub52119-6B905

main52119-60910iHDJ100,UZJ100..VX199801-200208

W(WINCH & HEADLAMP CLEANER)

sub52119-6B906

main52119-60911iHDJ100,UZJ100..LHD..VX199801-200208

W(WINCH)

sub52119-6B907

main52119-60916iUZJ100..LHD200001-200208

CHINA SPEC & W(HEADLAMP CLEANER & WINCH)

main52119-60917iUZJ100..LHD200001-200208

CHINA SPEC & W(WINCH)

sub52119-6B921

main52119-60918iHDJ100,UZJ100..LHD200208-200708

main52119-60919iUZJ100..LHD200208-200505

W(HEADLAMP CLEANER & BUMPER GUARD)

main52119-60920iUZJ100..LHD200208-200505

W(BUMPER GUARD)

main52119-60921iHDJ100,UZJ100..VX200208-200505

W(HEADLAMP CLEANER)

main52119-60922iUZJ100;HDJ100..5F..VX200208-200505

W(WINCH & HEADLAMP CLEANER)

main52119-60923iUZJ100..LHD;HDJ100..LHD..5F..VX200208-200708

W(WINCH)

main52119-60924iUZJ100..LHD200208-200505

CHINA SPEC & W(HEADLAMP CLEANER & WINCH)

main52119-60925iUZJ100..LHD200208-200505

CHINA SPEC & W(WINCH)

main52119-60956iHDJ100,UZJ100200505-200708

W(HEADLAMP CLEANER)

main52119-60959iUZJ100;HDJ100..5F200505-200708

W(WINCH & HEADLAMP CLEANER)

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-60010iHDJ100,UZJ100..VX199801-200208

sub52127-60030

main52127-60030iHDJ100,UZJ100..VX200208-200505

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-60010iHDJ100,UZJ100..VX199801-200208

sub52128-60030

main52128-60030iHDJ100,UZJ100200208-200505

52147EBRACKET, FRONT BUMPER MOUNTING, RH

main52147-60050iHDJ100,UZJ100199801-200505

52148EBRACKET, FRONT BUMPER MOUNTING, LH

main52147-60050iHDJ100,UZJ100199801-200505

52161CPIECE, FRONT BUMPER

main52161-16010iHDJ100,UZJ100199801-200708

sub52161-0K040

52197DREINFORCEMENT, FRONT BUMPER ARM

main52197-60010iHDJ100,UZJ100199808-200208

52421APAD, FRONT BUMPER

main52421-60050iHDJ100,UZJ100199801-200208

sub52421-60090

main52421-60090iUZJ100;HDJ100..5F200208-200505

52611ABSORBER, FRONT BUMPER ENERGY

main52611-60010iHDJ100,UZJ100199801-200208

main52611-60020iHDJ100,UZJ100200208-200505

9010906330

main90109-06330

9011908867

main90119-08867

9011910464

main90119-10464

9015960477

main90159-60477

9017906127

main90179-06127

9151160616

main91511-60616

19 parts on this diagram · 4 diagrams in section
