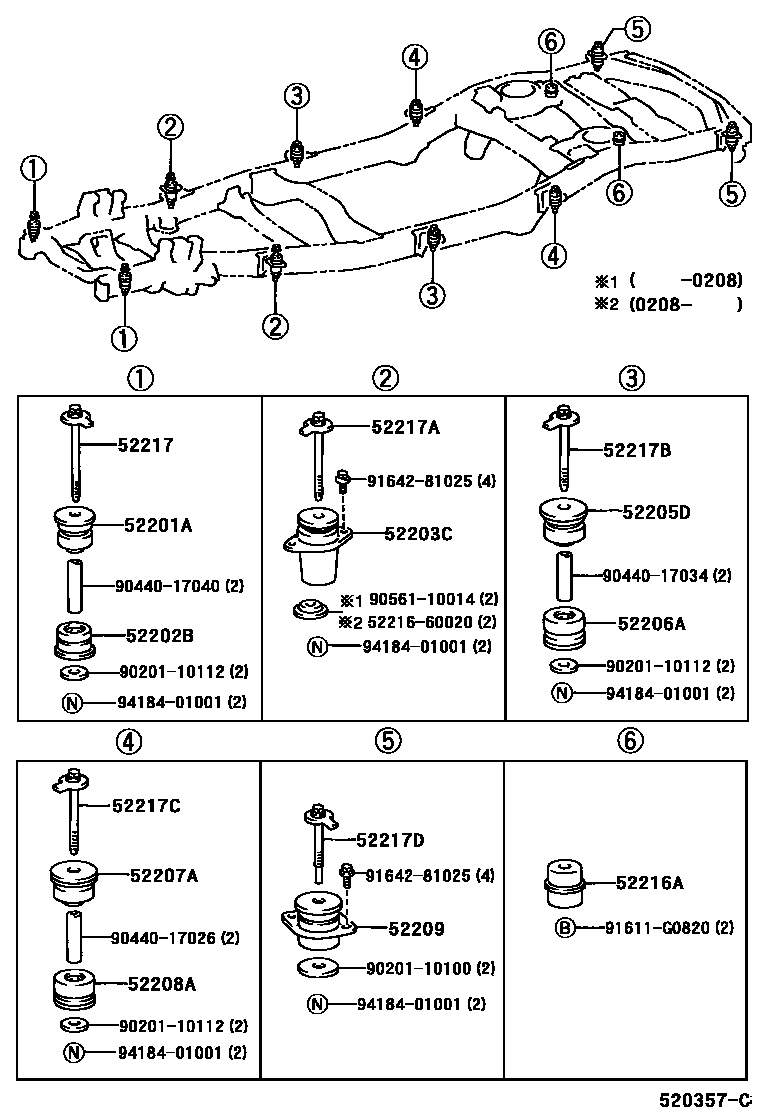

CAB MOUNTING & BODY MOUNTING

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-60050iHDJ100,UZJ100199801-200505

52202BCUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER

main52202-60030iHDJ100,UZJ100199801-200505

52203CCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-60060iHDJ100,UZJ100199801-200505

52205DCUSHION SUB-ASSY, CAB MOUNTING, NO.3 UPPER

main52205-60020iHDJ100,UZJ100199801-200505

52206ACUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER

main52206-60020iHDJ100,UZJ100199801-200505

52207ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER

main52207-60080iHDJ100,UZJ100199801-200505

52208ACUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER

main52208-60040iHDJ100,UZJ100199801-200505

52209CUSHION SUB-ASSY, REAR END BODY MOUNTING, UPPER

main52209-60070iHDJ100,UZJ100199801-199809

sub52209-60071

main52209-60071iHDJ100,UZJ100199809-200505

52216ASTOPPER, CAB MOUNTING CUSHION

main52216-60030iHDJ100,UZJ100199801-200505

52217BOLT, BODY MOUNTING

main52217-60020iHDJ100,UZJ100199801-200505

52217ABOLT, BODY MOUNTING

main52217-60030iHDJ100,UZJ100199801-200505

52217BBOLT, BODY MOUNTING

main52217-60010iHDJ100,UZJ100199801-200505

52217CBOLT, BODY MOUNTING

main52217-60050iHDJ100,UZJ100199801-200505

52217DBOLT, BODY MOUNTING

main52217-60040iHDJ100,UZJ100199801-200505

5221660020SPACER, BODY MOUNTING

main52216-60020

9020110100

main90201-10100

9020110112

main90201-10112

9044017026

main90440-17026

9044017034

main90440-17034

9044017040

main90440-17040

9056110014

main90561-10014

91611G0820

main91611-G0820

9164281025

main91642-81025

9418401001

main94184-01001

24 parts on this diagram · 1 diagram in section
