FRAME

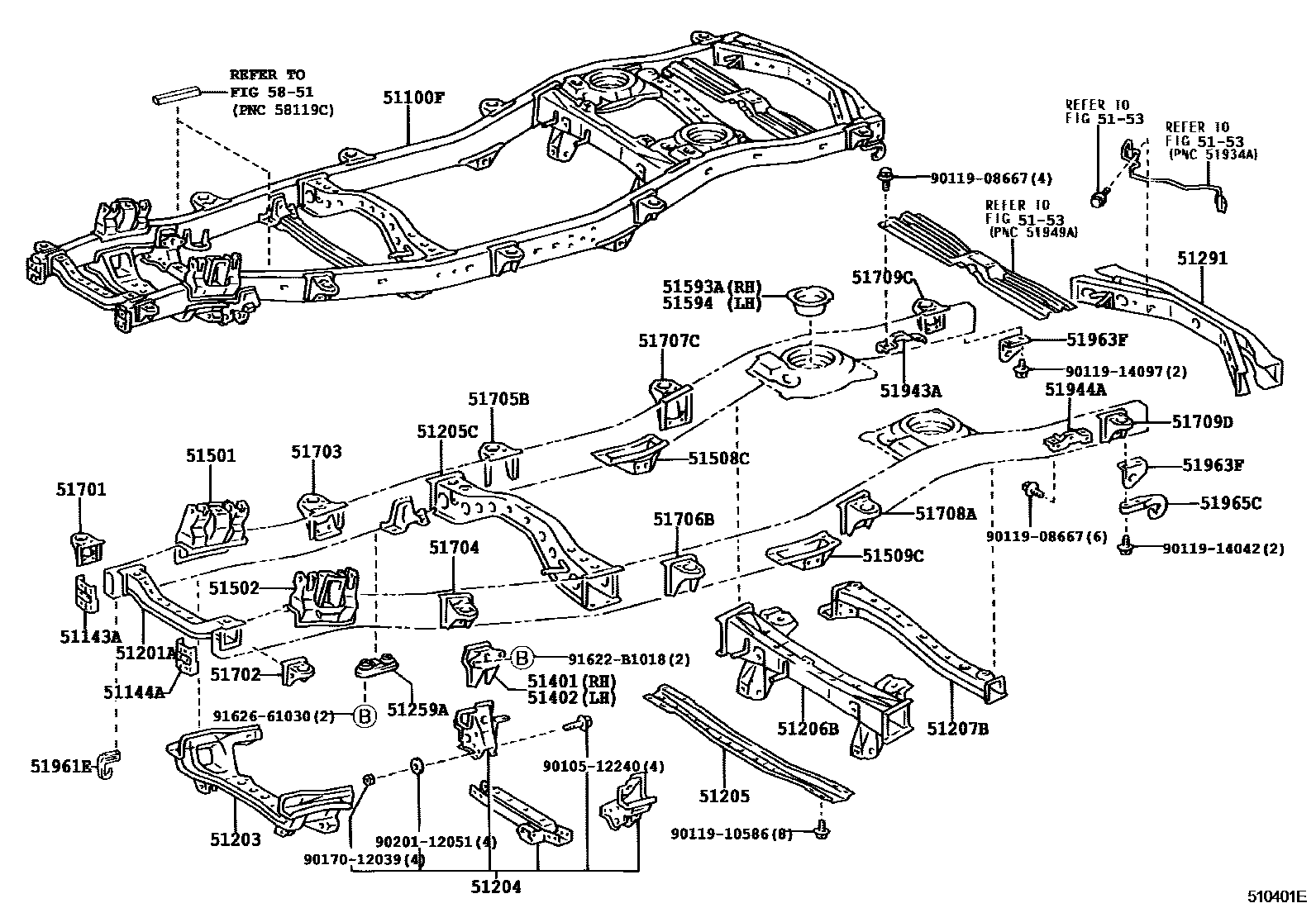

Parts diagram

51100FFRAME SUB-ASSY

main51001-60A30i200407-200505

W(WINCH)

main51001-60A40i200407-200505

main51001-60A50i200407-200505

main51001-60A60i200407-200505

W(WINCH)

main51001-60A70i200407-200505

main51001-60A80i200407-200505

W(WINCH)

main51001-6B100i200002-200208

main51001-6B120i200002-200208

main51001-6B140i200002-200208

main51001-6B210i200002-200208

main51001-6B240i200002-200208

main51001-6B270i200002-200208

main51001-6B620i200407-200505

main51001-6B630i200307-200505

NEW ZEALAND SPEC;CYPRUS SPEC;SOUTH AFRICA SPEC

main51001-6B630i200208-200307

main51001-6B680i200208-200505

NEW ZEALAND SPEC & W(WINCH)

main51001-6B690i200208-200505

NEW ZEALAND SPEC

main51001-6B760i200407-200505

W(WINCH)

main51001-6B770i200407-200505

main51001-6B780i200208-200505

CYPRUS SPEC & W(WINCH);SOUTH AFRICA SPEC & W(WINCH)

main51001-6B790i200208-200505

CYPRUS OR SOUTH AFRICA SPEC

main51001-6B790i200505

CYPRUS SPEC;SOUTH AFRICA SPEC

main51001-6B840i200307-200505

RUSSIA SPEC

main51001-6B840i200505

RUSSIA SPEC;ARGENTINA SPEC;POLAND SPEC;SLOVENIA SPEC;HUNGARY SPEC

main51001-6B840i200208-200307

main51001-6C030i200208-200505

W(WINCH)

main51001-6C030i200208-200505

ARGENTINA OR POLAND OR RUSSIA SPEC & W(WINCH)

main51001-6C030i200505

SLOVENIA SPEC & W(WINCH);HUNGARY SPEC & W(WINCH);RUSSIA SPEC & W(WINCH);POLAND SPEC & W(WINCH);ARGENTINA SPEC & W(WINCH)

main51001-6C040i200505

RUSSIA SPEC;ARGENTINA SPEC;POLAND SPEC;SLOVENIA SPEC;HUNGARY SPEC

main51001-6C040i200208-200505

ARGENTINA OR POLAND OR RUSSIA SPEC

main51001-6C121i200407-200505

main51001-6C130i200208-200505

SLOVENIA SPEC & W(WINCH);HUNGARY SPEC & W(WINCH);SOUTH AMERICA SPEC & W(WINCH);TURKEY SPEC & W(WINCH);RUSSIA SPEC & W(WINCH);POLAND SPEC & W(WINCH);COSTA RICA SPEC

main51001-6C140i200208-200505

COSTA RICA SPEC;RUSSIA SPEC;TURKEY SPEC;POLAND SPEC;SLOVENIA SPEC;HUNGARY SPEC;SOUTH AMERICA SPEC

main51001-6C190i200208-200505

W(ACTIVE HEIGHT CONTROL)

main51001-6C200i200307-200505

CYPRUS SPEC & W(ACTIVE HEIGHT CONTROL);SOUTH AFRICA SPEC & W(ACTIVE HEIGHT CONTROL);NEW ZEALAND SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C200i200208-200307

SOUTH AFRICA OR NEW ZEALAND OR CYPRUS SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C240i200208-200211

W(ACTIVE HEIGHT CONTROL & WINCH)

main51001-6C250i200208-200505

W(ACTIVE HEIGHT CONTROL)

main51001-6C260i200208-200211

NEW ZEALAND SPEC & W(ACTIVE HEIGHT CONTROL & WINCH)

main51001-6C270i200208-200505

NEW ZEALAND SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C330i200208-200505

W(ACTIVE HEIGHT CONTROL & WINCH)

main51001-6C340i200208-200505

W(ACTIVE HEIGHT CONTROL)

main51001-6C350i200208-200505

SOUTH AFRICA SPEC & W(ACTIVE HEIGHT CONTROL & WINCH);CYPRUS SPEC & W(ACTIVE HEIGHTCONTROL & WINCH)

main51001-6C360i200208-200505

CYPRUS SPEC & W(ACTIVE HEIGHT CONTROL);SOUTH AFRICA SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C400i200208-200505

W(ACTIVE HEIGHT CONTROL)

main51001-6C410i200208-200307

POLAND SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C410i200307-200505

POLAND SPEC & W(ACTIVE HEIGHT CONTROL);HUNGARY SPEC & W(ACTIVE HEIGHT CONTROL);ARGENTINA SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C410i200505

POLAND SPEC & W(ACTIVE HEIGHT CONTROL);SLOVENIA SPEC & W(ACTIVE HEIGHT CONTROL);HUNGARY SPEC & W(ACTIVE HEIGHT CONTROL);ARGENTINA SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C480i200208-200505

W(ACTIVE HEIGHT CONTROL)

main51001-6C500i200505

POLAND SPEC & W(ACTIVE HEIGHT CONTROL);SLOVENIA SPEC & W(ACTIVE HEIGHT CONTROL);HUNGARY SPEC & W(ACTIVE HEIGHT CONTROL);ARGENTINA SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C500i200208-200505

ARGENTINA OR POLAND SPEC & W(ACTIVE HEIGHT CONTROL)

main51001-6C580i200208-200505

W(ACTIVE HEIGHT CONTROL & WINCH)

main51001-6C590i200208-200505

W(ACTIVE HEIGHT CONTROL)

main51001-6C610i200208-200505

SOUTH AMERICA SPEC & W(ACTIVE HEIGHT CONTROL & WINCH);TURKEY SPEC & W(ACTIVE HEIGHT CONTROL & WINCH);COSTA RICA SPEC & W(ACTIVE HEIGHT CONTROL & WINCH);HUNGARY SPEC

main51001-6C620i200208-200505

POLAND SPEC & W(ACTIVE HEIGHT CONTROL);SOUTH AMERICA SPEC & W(ACTIVE HEIGHT CONTROL);SLOVENIA SPEC & W(ACTIVE HEIGHT CONTROL);COSTA RICA SPEC & W(ACTIVE HEIGHT CONT

main51002-6A550i199801-200208

W(WINCH)

main51002-6A740i199801-200002

main51002-6A760i199801-200002

main51002-6A780i199801-200002

main51002-6A870i199801-200002

main51003-6A010i199801-200002

main51003-6A210i199801-200208

W(WINCH)

main51003-6A240i199801-200208

W(WINCH)

main51003-6A270i199907-199908

SOUTH AMERICA SPEC & W(WINCH)

main51003-6A270i199801-200208

W(WINCH)

main51003-6A300i199801-199908

main51003-6A300i199907-199908

SOUTH AMERICA SPEC

main51003-6A300i199802-200002

TURKEY SPEC

main51003-6A370i199801-200208

W(WINCH)

main51003-6A450i199801-200208

W(WINCH)

51143AREINFORCEMENT, SIDE RAIL, FRONT RH

main51143-60070i199801-200505

51144AREINFORCEMENT, SIDE RAIL, FRONT LH

main51144-60060i199801-200505

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51201-60140i199801-200505

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-60200i199801-200208

main51202-60210i199801-200208

main51202-60210i199907-199908

SOUTH AMERICA SPEC

main51202-60220i200208-200505

main51202-60230i200208-200505

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51230-60010i199801-200505

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-60150i199801-200505

main51204-60160i199801-200505

main51204-60170i199801-200505

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-60140i199801-200505

main51205-60150i199801-200208

W(WINCH)

main51205-60200i200208-200505

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-60030i199801-200505

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51207-60010i199801-200505

51259AWEIGHT, NO.4 CROSSMEMBER DUMPER

main51259-60010i199801-200208

51291CROSSMEMBER, FRAME, REAR

main51290-60010i199801-200505

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-60040i199801-200505

main51401-60050i199801-200505

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-60030i199801-200505

main51402-60040i199801-200505

51501SUPPORT SUB-ASSY, SUSPENSION ARM, RH

main51501-60010i199801-200505

51502SUPPORT SUB-ASSY, SUSPENSION ARM, LH

main51502-60020i199801-200505

51508CBRACKET SUB-ASSY, LOWER CONTROL LINK, RH

main51508-60020i199801-200505

51509CBRACKET SUB-ASSY, LOWER CONTROL LINK, LH

main51509-60020i199801-200505

5153

51593ABRACKET, REAR SPRING BUMPER, RH

main51593-60010i199801-200505

51594BRACKET, REAR SPRING BUMPER, LH

main51593-60010i199801-200505

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-60090i199801-200505

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51701-60090i199801-200505

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-60060i199801-200505

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-60050i199801-200505

51705BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 RH

main51731-60140i199801-200505

51706BBRACKET SUB-ASSY, CAB MOUNTING, NO.3 LH

main51731-60140i199801-200505

51707CBRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH

main51707-60070i199801-200505

51708ABRACKET SUB-ASSY, CAB MOUNTING, NO.4 LH

main51708-60050i199801-200505

51709CBRACKET SUB-ASSY, CAB MOUNTING, NO.5 RH

main51709-60060i199801-200505

51709DBRACKET SUB-ASSY, CAB MOUNTING, NO.5 LH

main51709-60060i199801-200505

51943ABRACKET, SPARE WHEEL CARRIER

main51941-60090i199801-200505

51944ABRACKET, SPARE WHEEL CARRIER, NO.2

main51941-60090i199801-200505

51961EHOOK, FRONT

main51961-60220i200002-200505

51963FHOOK, TRANSPORT

main51963-60040i199801-200505

RH

main51964-60040i199801-200505

LH

51965CHOOK, REAR

main51965-60031i199801-200505

5851

9010512240

main90105-12240

9011908667

main90119-08667

9011910586

main90119-10586

9011914042

main90119-14042

9011914097

main90119-14097

9017012039

main90170-12039

9020112051

main90201-12051

91622B1018

main91622-B1018

9162661030

main91626-61030

46 parts on this diagram · 1 diagram in section
