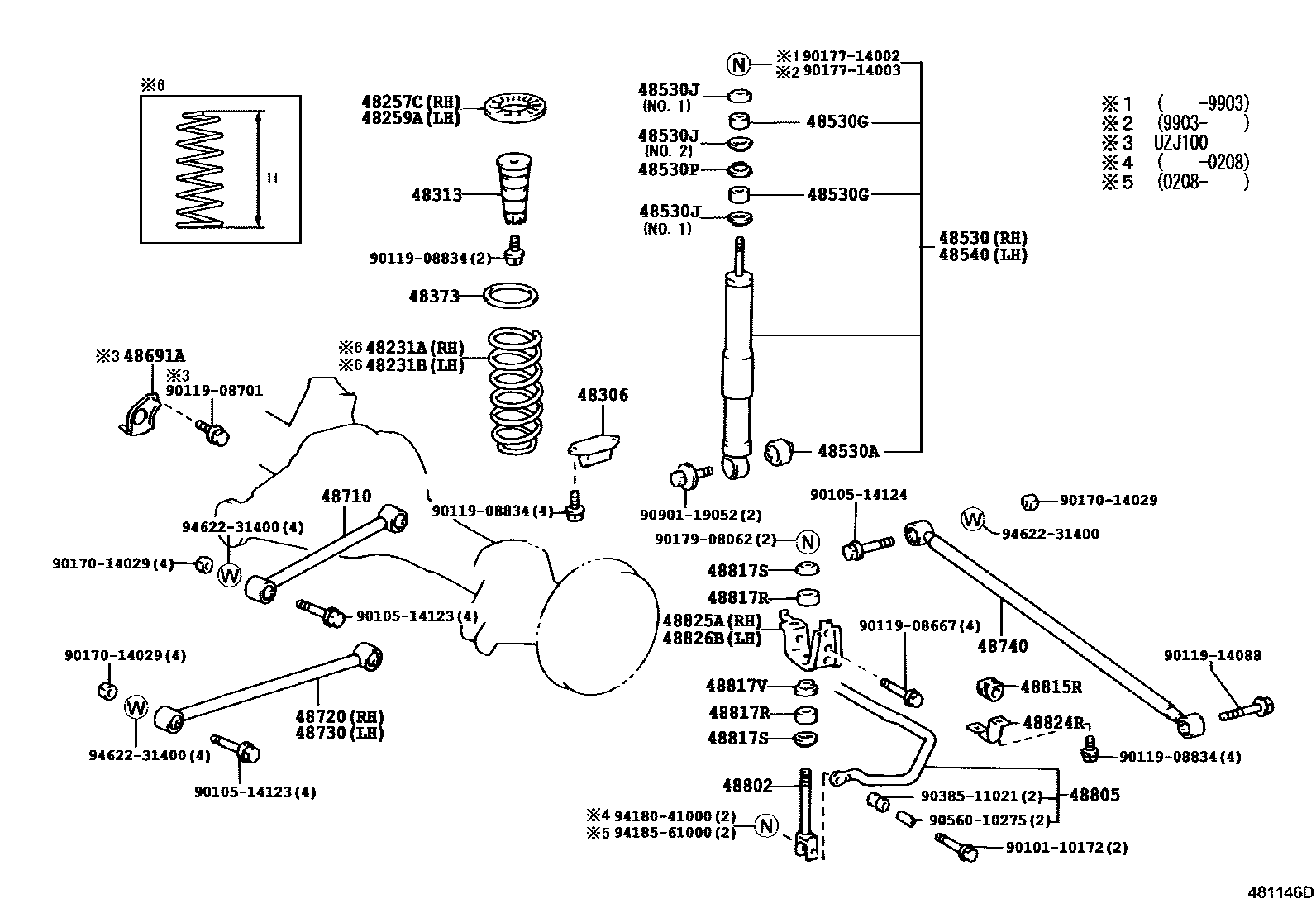

REAR SPRING & SHOCK ABSORBER
48231ASPRING, COIL, REAR RH
H=489;RED & PURPLE PAINTED
H=501,BLUE PAINTED
H=504,GREEN & PINK PAINTED
H=516.5,GREEN&ORANGE PAINTED
W(ACTIVE HEIGHT CONTROL);H=455,PINK PAINTED
W(ACTIVE HEIGHT CONTROL);H=485,PURPLE PAINTED
48231BSPRING, COIL, REAR LH
H=489;RED & PURPLE PAINTED
H=501,BLUE PAINTED
H=504,GREEN & PINK PAINTED
H=516.5,GREEN&ORANGE PAINTED
W(ACTIVE HEIGHT CONTROL);H=455,PINK PAINTED
W(ACTIVE HEIGHT CONTROL);H=485,PURPLE PAINTED
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48306BUMPER SUB-ASSY, REAR SPRING
48313SPRING, HOLLOW(FOR REAR SUSPENSION)
W(ACTIVE HEIGHT CONTROL)
48373SPACER, REAR SPRING
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-60050,W(ACTIVE HEIGHT CONTROL)
MARK 48530-60051,W(ACTIVE HEIGHT CONTROL)
MARK 48530-60052,W(ACTIVE HEIGHT CONTROL)
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
W(ACTIVE HEIGHT CONTROL),UPPER
W(ACTIVE HEIGHT CONTROL),LOWER
W(ACTIVE HEIGHT CONTROL),UPPER
W(ACTIVE HEIGHT CONTROL),LOWER
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
W(ACTIVE HEIGHT CONTROL)
NO.1
W(ACTIVE HEIGHT CONTROL)
NO.2
48530PRETAINER, CUSHION, NO.2(FOR REAR SHOCK ABSORBER)
W(ACTIVE HEIGHT CONTROL)
W(ACTIVE HEIGHT CONTROL)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-60050,W(ACTIVE HEIGHT CONTROL)
MARK 48530-60051,W(ACTIVE HEIGHT CONTROL)
MARK 48530-60052,W(ACTIVE HEIGHT CONTROL)
48691AINSULATOR, UPPER ARM BUSH, HEAT
48710ARM ASSY, UPPER CONTROL
RH
LH
48720ARM ASSY, LOWER CONTROL, RH
48730ARM ASSY, LOWER CONTROL, LH
48740ROD ASSY, REAR LATERAL CONTROL
48802LINK SUB-ASSY, STABILIZER
48805BAR SUB-ASSY, REAR STABILIZER
CHINA SPEC
W(ACTIVE HEIGHT CONTROL)
48815RBUSH, STABILIZER(FOR REAR)
W(ACTIVE HEIGHT CONTROL)
CHINA SPEC
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
48817VRETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR)
48824RBRACKET, STABILIZER(FOR REAR)
48825ABRACKET, REAR STABILIZER END
48826BPROTECTOR, REAR STABILIZER BAR
9010110172
main90101-10172
9010514123
main90105-14123
9010514124
main90105-14124
9011908667
main90119-08667
9011908701
main90119-08701
9011908834
main90119-08834
9011914088
main90119-14088
9017014029
main90170-14029
9017714002
main90177-14002
9017714003
main90177-14003
9017908062
main90179-08062
9038511021
main90385-11021
9056010275
main90560-10275
9090119052
main90901-19052
9418041000
main94180-41000
9418561000
main94185-61000
9462231400
main94622-31400
